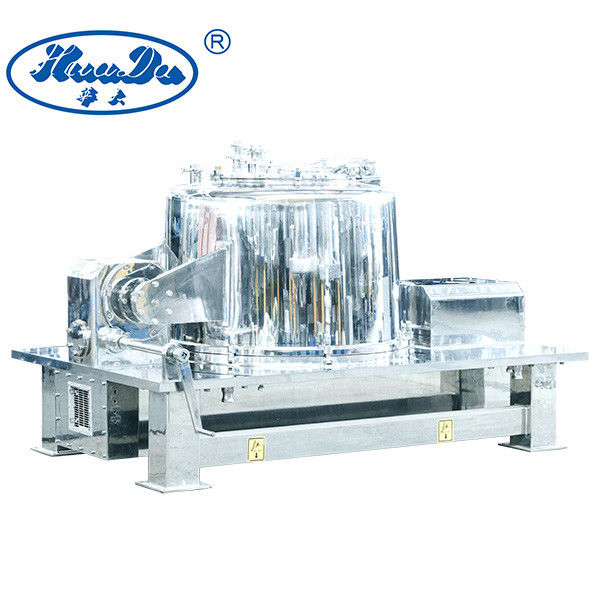

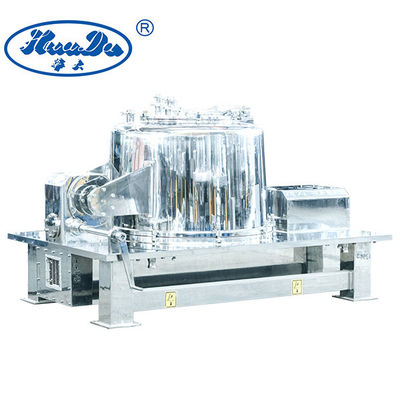

Stainless Steel Top Discharge Centrifuge

Product Description

PQFB/PQFD Manual Top Discharge GMP Centrifuges with Full Turnover Cover

PQFB/PQSD series centrifuges are applicable to the solid-liquid separation in the clean areas with certain requirements for sanitation. Being aesthetic in appearance, high in manufacturing technology, stable in operation, easy in maintenance, and complying with the GMP standards and high requirements for sanitation, this product has been broadly applied in pharmaceutical production, food production and fine chemical engineering and other industries.

                                           PQFB                                                                                                     PQFD





Scope/Field of Application

PQFB/PQSD centrifuges are suitable for the washing and solid-liquid separation of suspensions containing solid particles, with the particle size of 0.02mm~5mm and solid content above 10%, 50% to the maximum.



This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.



Main Configurations

• Big turnover cover: hand-controlled reducing mechanism or hydraulic drive.
• Base: foundation platform and stainless steel liquid damper.
• Washing mode: washing pipe, atomizing & washing pipe, CIP online cleaning system.
• Filtering medium: imported sintering screen, filter cloth, etc.
• Flip cover configuration: overall turnover cover + small turnover cover, explosion-proof sight class with lamp, diluting pipe, observation mirror, feeding pipe.
• Electric configuration: PLC control, variable-frequency (VF) control, electric control cabinet (ordinary type and explosion-proof type), motor (ordinary type, explosion-proof type, VF type and energy saving type), field operation box (ordinary type and explosion-proof type). Nitrogen protection system, oxygen content detection system, liquid seal, gas seal, etc.
• Other requirements of customer





Main Features

Excellent corrosion resistance

Stainless steel, anti-corrosion alloy or anti-corrosion coating is adopted for the parts requiring contact with materials.



Easy Maintenance

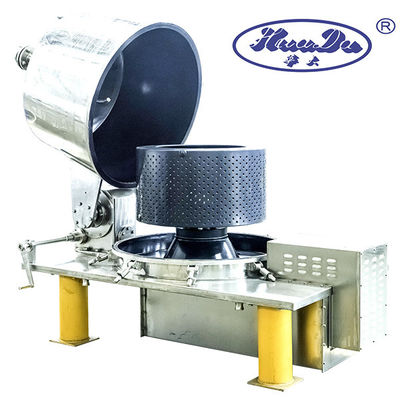

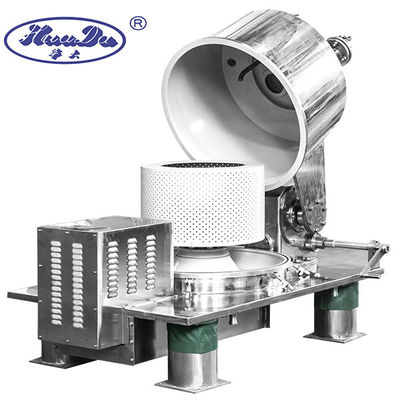

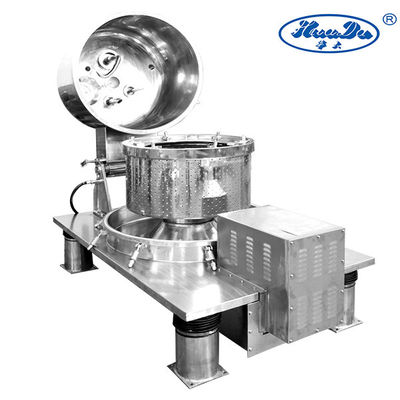

Complete overall turnover cover design allows flip angle of over 90°; overall structure of basket is exposed for easier cleaning of the machine and replacement of the filter cloth.



All-directional online cleaning and disinfection

CIP online cleaning system is configured to complete all-directional cleaning and disinfection of the inner cavities, meeting the GMP standards and the requirements for cleanliness.



Advanced structural design

Enclosed modular structure is adopted to avoid contamination caused by belt-worn dust and foreign matters.

Precise polishing is adopted for the parts requiring contact with the materials and no sanitary dead angle exists inside the equipment, meeting the GMP standards.

Equipment has low gravity center, small floor covering area and is easy to maintain.

Variable-frequency startup and stepless speed regulation are designed to ensure stable operation and low failure rate.

Internal nitrogen filling structure and nitrogen protection system are configured to meet the requirements for explosion protection in occasions involving toxic, flammable and explosive materials.



Wide application scope

It can be used for the separation of not only suspensions containing solid particles but also fibrous materials.



Manual discharging for better grain protection



Multiple safety protections

Nitrogen protection system, liquid seal, gas seal, overvibration protection, cover opening protection, overload protection, electromagnetic interlocking, etc.





Technical Parameters



Items	Models
	PQFB600	PQFB800	PQFB1000	PQFB1250	PQFD800	PQFD1000	PQFD1250
Basket Diameter(mm)	600	800	1000	1250	800	1000	1250
Effective Basket Height(mm)	325	400	425	485	400	425	450
Basket Volume(L)	47	100	145	320	100	145	300
Max. Capacity(kg)	70	140	200	400	140	200	375
Max. Speed(r/min)	1600	1200/1500	1100/1200	1000/1200	1200/1500	1100/1200	1000/1200
Max. Separation Factor	860	645/1007	680/805	700/1007	645/1007	680/805	700/1007
Motor Power(kw)	4	7.5	11	18.5/22	7.5	11	18.5/22
Dimension(mm)	1880*1100*1100	2200*1250*1310	2460*1400*1400	2770*1800*1470	2200*1250*1310	2370*1400*1490	2770*1800*1510
Weight(kg)	1200	2000	2600	4300	2300	3000	5000
