2 Stage Pusher Centrifuges
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | HR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD50000-90000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Pusher Discharge | Operate: | Automatic Continuous Centrifuge |
| MOC: | Stainless Steel | Machine Control: | PLC |
| Certificate: | ISO9001 | ||
| High Light: | 2 Stage Pusher Centrifuges,2 Stage automatic centrifuge,Stainless steel Pusher Centrifuges |
||
Product Description

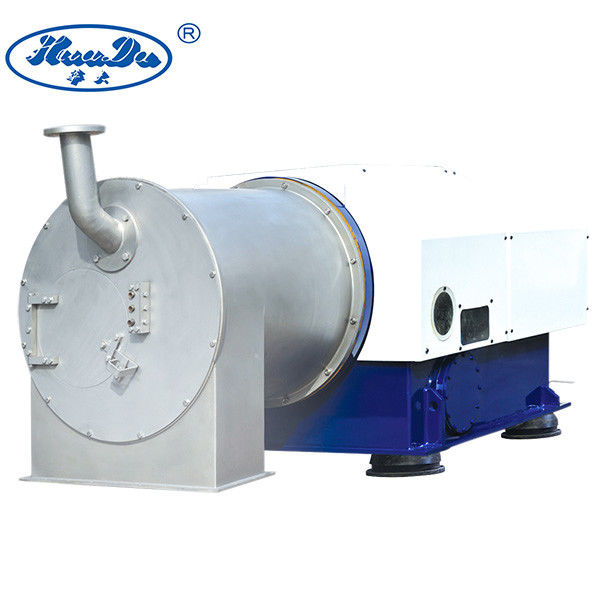

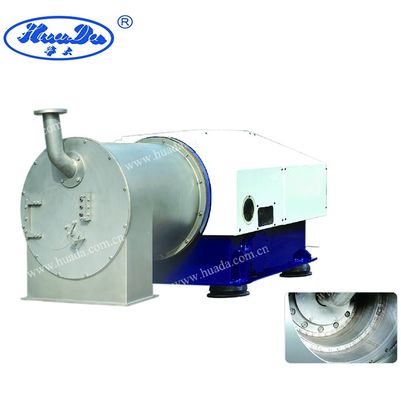

HR Horizontal 2-Stage Continuous Operation Pusher Centrifuge For Salt Production
HR pusher centrifuge is a type of filtering centrifuge characterized by continuous feeding and intermittent discharging. Composed of hydraulic system, pushing mechanism, base, enclosure, transmission mechanism, basket, etc., this product is able to realize continuous feeding, separation, washing, discharging and other processes at full speed.
Scope of Application
Solid particle size >0.08MM
Concentration of 40%-80% (mass percentage)
Material viscosity <10-1PA.S
Technical Parameters
| Items | Model | |||
| HR400-N | HR500-N | HR630-N | HR800-N | |
| Basket Diameter (mm) | 337/400 | 430/500 | 560/630 | 720/800 |
| Filter area length(mm) | 320 | 360 | 480 | 600 |
| Speed (r/min) | 1500-2400 | 1200-2100 | 1000-1800 | 800-1600 |
| Separation Factor | 504-1290 | 403-1235 | 353-1143 | 286-1146 |
| Pushing Stroke (mm) | 40 | 50 | 50 | 50 |
| Pushing times(N/min) | 30-80 | 50-70 | 30-80 | 30-80 |
| Power of Driving Motor(KW) | 7.5-15 | 30-55 | 45-75 | 55-90 |
| Motor Power of Oil pump(KW) | 5.5 | 22 | 30 | 45 |
| Weight(Kg) | 2400 | 3600 | 3900 | 6100 |
| Dimension(L×W×H)(mm) | 2600*1130*1250 | 3600*1450*1650 | 3130*1430*1360 | 3650*1890*1610 |
Industrial Application
This product is applicable to the filtration of sodium chloride, ammonium chloride, ammonium bicarbonate, urea, polyethylene, polypropyl ethylene, ammonium nitrate, oxalic acid, sodium sulfate, caffeine, etc. in the chemical, fertilizer, alkali production, salt production and other industries.
Working Principle
Driven by the driving motor, the transmission device operates at full speed to bring the materials into the inner basket through the feeding pipe. Under the action of centrifugal force, the materials are evenly distributed onto the screen wall of the inner basket, where the liquid phase flows into the liquid discharge pipe through the screen and pores on the basket wall, while the solid phase is retained on the screen to form a cake layer. The inner basket and outer basket revolve at the same speed. Driven by the piston, the inner basket moves in the axial direction repeatedly and reciprocally to make the pushing tray to push the materials from the inner basket to the outer basket for further separation, where annular cake layers are formed. Continuously pushed by the outer end face of the inner basket, the materials are discharged out of the outer basket and then be conveyed out of the equipment through the material scrapping slot.
Main Features
High separation factor, multi-stage dehydration and washing of materials, with better washing effect and lower moisture content.
Continuous working, large handling capacity, high efficiency, and stable operation.
Low solid content in mother liquid, which can be discharged together with washing liquid or discharged separately.
Low and stable energy consumption.
