2000rpm 3 Phase Sludge Dewatering Centrifuge 110kW
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LWS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD40000-150000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Explosion-proof System: | Optional |
| High Light: | 2000rpm sludge dewatering centrifuge,2000rpm 3 phase centrifuge,sludge dewatering centrifuge 110kW |
||
Product Description

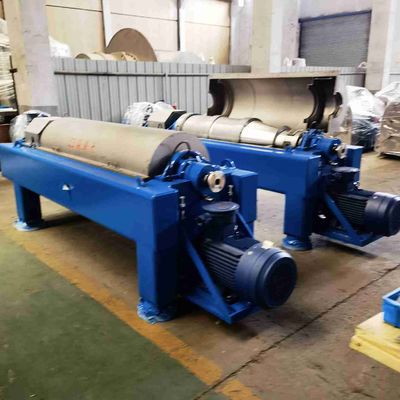

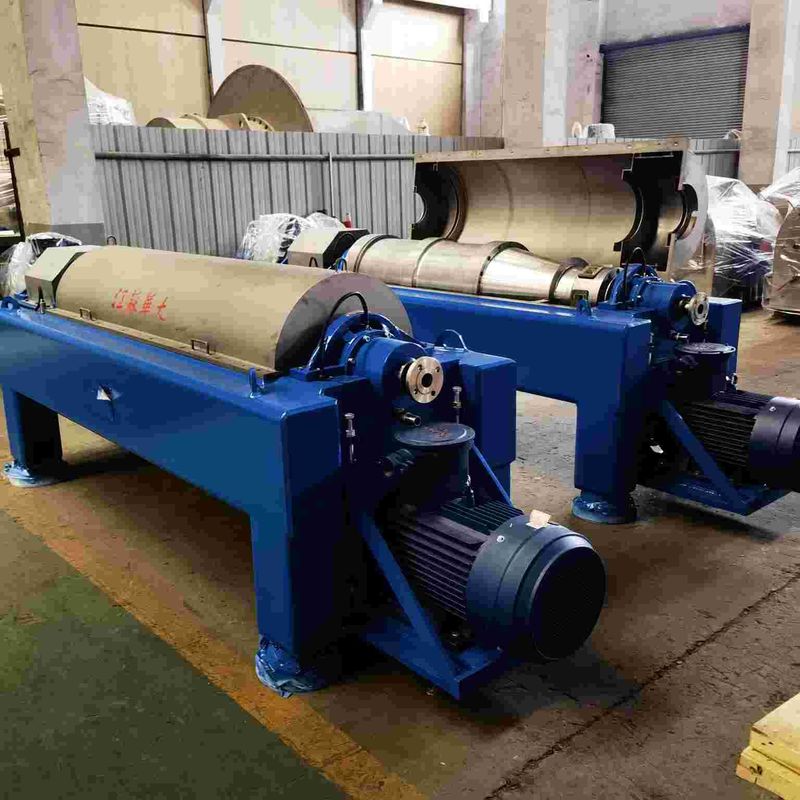

LWS Model 1 Year Warranty Multi-Speed Large Capacity 3 Phase Sludge Dewatering Decanter Centrifuges
Features
- All parts coming into contact with the product are made of stainless steel.
- 3-phase AC motor for controlled torque starting via frequency converter
- Bowl speed is adjustable via VFD to obtain the required G-force for optimized separation
- Pond depth in the bowl is adjustable for optimized balance between liquid clarity and solids dryness
- Conveying speed is adjustable for optimized balance between liquid
- Low personnel costs due to continuous and automatic operation.
- Highest g-force for higher solids output
- Automatic adjustment of differential speed via VFD
- Two motor drive
- Belts for both primary motor and secondary motor
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWS355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3450*1010*1030 |
| LWS420*1680 | 420 | 4 | 3600 | 3050 | 30-37 | 4000 | 3500*1450*1300 |
| LWS530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 5500 | 4100*1600*1450 |
| LWS720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
Company profile
Found in 1993, Jiangsu Huada Centrifuge Co., Ltd. is located at Zhangjiagang City, an emerging port city in China, which is situated in China’s most economically advanced Yangtze River Delta region, with convenient traffic and beautiful environment.
Huada currently has two production bases, covers floor area of 100000 square meters and plan area of 45000 square meters, as well as owns more than 500 sets of various mechanical processing equipment among which there are over 50 sets of numerical control equipment and more than 100 sets of various testing equipment.
Due to the working characteristic of centrifuges, customers attach great importance to safety of centrifuges in use. As a manufacturer, we do not dare to take it lightly. Centrifuge safety performance is fully controlled in the process of design and manufacture. Each link in design calculation, production process control, test and inspection operates as per procedure to minimize remaining risk.
Over 20 years. Huada had always been being devoted to research and development, production and marketing of filtration and separation machinery. With technical innovation as driving force of the enterprise to participate in market competition, we have developed series of centrifuges with high technical content, to meet the market demand; to gain the market by serving customers, we have accumulated extensive experience in application through years of technical research and development and sales application and can provide perfect pre-sale, sale and after-sale service; we ensure product quality with lean management and improve product reliability.
