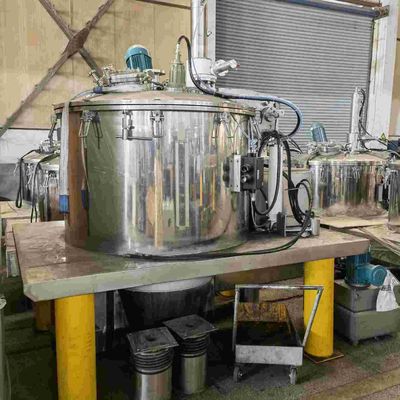

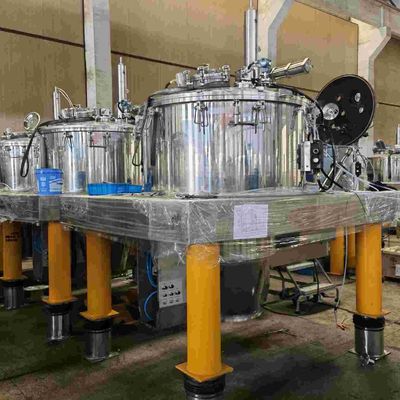

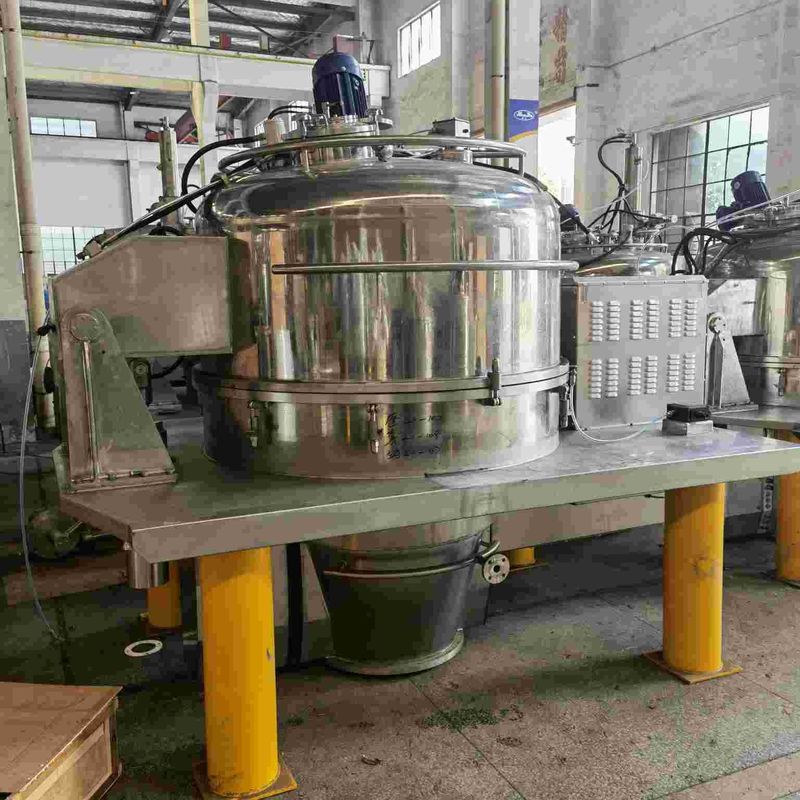

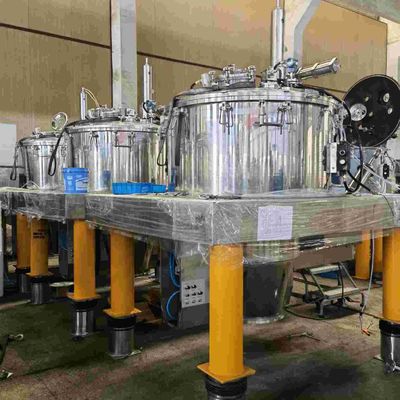

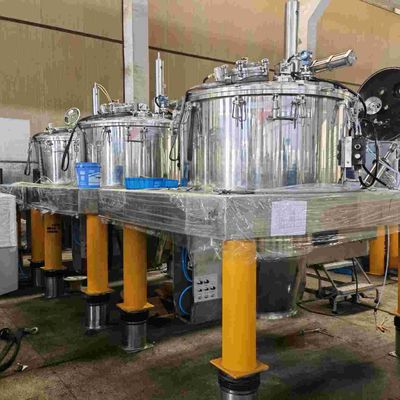

130kg 11kw Bottom Discharge Centrifuge 1200rpm With Bag Pulling
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015, 01418P10003R2M |
| Model Number: | PLD800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Effective Basket Height(mm): | 460 |
|---|---|---|---|
| Diacharge: | Scraper Bottom Discharge With Bag Pulling | Operate: | Automatic Batch Operate |
| Max. Capacity(kg): | 130 | Speed Control: | Frequency Converter |
| MOC: | Stainless Steel | Application: | Industrial Centrifuge |
| Highlight: | 130kg 11kw Bottom Discharge Centrifuge,130kg 11kw industrial centrifuge machine,Bottom Discharge Centrifuge 1200rpm |
||
Product Description
Product Introduction
PLD automatic bottom discharge scraper centrifuge is a new type of product that are developed independently by HUADA, with multiple patents and completely independent intellectual property rights. This series of products is batch-processing separation centrifuge, After discharge, the filter bag can be regenerated, with good filtration and high efficiency, and it can effectively reduce the influence of the residual cake layer on the filtration performance of materials, avoid the cross contamination during material separation, and meet the requirements of GMP and FDA, thus realizing remote intelligent control and automatic production and online fault diagnosis.
Technical Parameters
| Items | Model | |
| PLD800 | ||
| Basket Diameter(mm) | 800 | |
| Effective Basket Height(mm) | 460 | |
| Basket Volume(L) | 100 | |
| Max. Capacity(kg) | 130 | |
| Motor Power(kw) | 7.5/11 | |
| Max. Speed(r/min) | 1200/1500 | |
| Max. Separation Factor | 645/1007 | |
| Weight(kg) | Platform construction | 2000 |
| Square box structure | ||
Inclined feed disk working principle
The feed disk is driven by an independent motor and slurry is accelerated.
Feed disk rotating speed is adjustable; the feed disk has the same rotating direction as the drum; their angular velocities are basically equivalent, but there are a rotating speed difference; the inclined feed disk can make slurry from the feed disk evenly distributed in the drum height direction.
Surrounding discharge ports of the feed disk is distributed in the form of sine curve after being projected onto the inner wall of drum.
Adjusting angle of feed pipe and changing the feed range can improve feed balance. Filter cake thickness is basically the same in the direction of drum height; for material with poor mobility, improving feed uniformity is of great significant to reduce the vibration.
Filter Cake Washing
In separation process of most materials, the filter cake needs to be cleaned at the s same time of dehydration to realize the required purity of product. In separation process, there is not only moisture content index of filter cake but also the Index of measuring purity of filter cake. Thus, how to realize the washing requirement of filter cake in the shorter time and with fewer consumption of cleaning gent is very important for capacity, quality and energy consumption and cost.
Washing process: the cleaning liquid is separated while filter cake is cleaned at washing speed after high -speed exhaustion of liquid for filter cake in drum and then high-speed exhaustion of liquid is repeated again.
Form of sluicing pipe: washing of hole of sluicing pipe: atomizing nozzle washing of sluicing pipe; distributing device washing of swash plate.
Washing method: durative washing: impulse washing; cleaning gent washing with measurement.
