SKF Bearing Decanter Centrifuges Engineers Service Machinery Overseas
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | After-sales Service Provided |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LWX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD50000-200000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK Or SKF |
| Explosion-proof System: | Optional | ||
| High Light: | SKF Bearing Decanter Centrifuges,SKF Bearing liquid centrifuge,GB Decanter Centrifuges |
||
Product Description

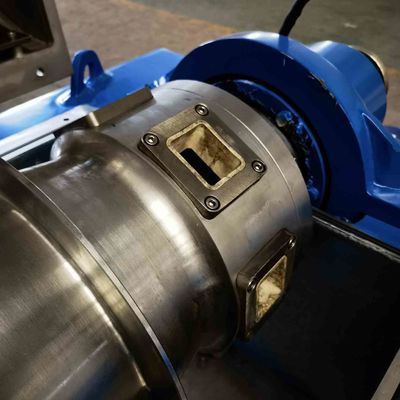

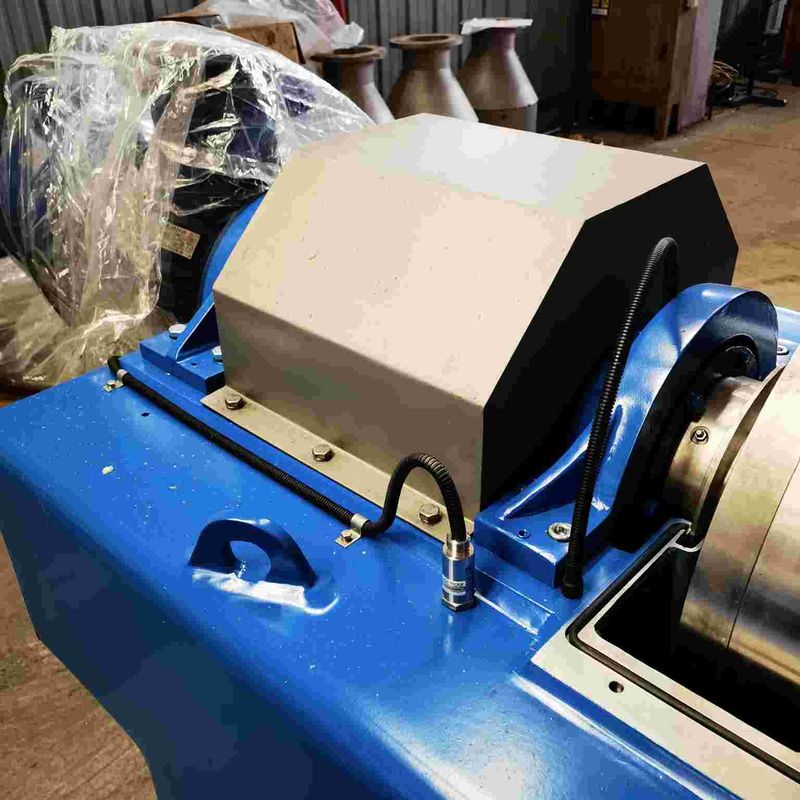

LWX SKF Bearing Decanter Centrifuges Engineers Service Machinery Overseas (Impeller Liquid Discharge)
Product introduction
This machine type is used for solid-liquid separation of materials. The bowl rotates in the same direction as the spiral, but at a different speed. Material is fed into the bowl through the feed pipe. With the centrifugal force, the solid phase materials deposit on the bowl wall and form a sediment layer. The liquid phase materials forms a liquid phase ring and a solid phase layer and a liquid phase layer successively from the bowl wall to the inward. The liquid phase then is discharged out through the bowl’s centripetal pump at the large end.
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWX355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3450*1010*1030 |
| LWX420*1680 | 420 | 4 | 3600 | 3050 | 30-37 | 4000 | 3500*1450*1300 |
| LWX530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 5500 | 4100*1600*1450 |
| LWX720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
PROCEDURE CONTROL
Huada has a professional quality management team, which implements each link related to users and products from contract review, technical design, material procurement, manufacturing process to after-sales service according to standard operating procedure, to effectively control the full process from design, purchasing, manufacturing to service.
Contract review
For individual requirements of customers, we make security risk evaluation specific to contract and technical agreement, to ensure that safety requirements. We confirm individual configuration and changes and propose quality plan and opinions.
Process control
Quality plan: For each order, at the time of design output, we put forward the quality plan of the production batch according to the customers’ individual requirements and internal quality control requirements and make clear information like material, configuration, individual changes, inspection requirements and special agreement. The quality plan is the internal control document for purchase, manufacture, inspection and confirmation for this batch.
ERP process: Through process and permissions settings, we standardize the product realization process including design output, change, procurement, materials distribution, machining process, inspection and records, warehouse-in and warehouse-out.
For every process, whether purchasing, internal parts processing or assembly process, we have established strict quality control requirements. For welding, surface coating, main and key parts processing and general assembly, we have formulated detailed operation and inspection regulations to ensure effective control of each process.
