Horizontal Continuous 3600rpm Screen Scroll Decanter Centrifuge Explosion Proof
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LWXF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD50000-250000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK Or SKF |
| Application: | Explosion-proof Decanter Centrifuge | ||
| High Light: | 3600rpm scroll decanter centrifuge,3600rpm sludge dewatering centrifuge,420mm scroll decanter centrifuge |
||
Product Description
LWXF Horizontal Continuous Explosion-Proof Screen Scroll Decanter Centrifuge
Product introduction

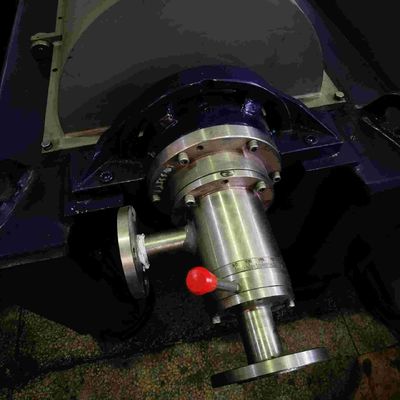

The centrifuge is used in explosive or flammable applications in chemical industry, petrochemical industry, pharmacy industry and other industries, and any leakage of gas into the external atmosphere is prohibited in the course of solid-liquid separation, or used in solid-liquid separation in applications in which explosion may be caused if the external air enters the inner chamber of the centrifuge. Both ends of the bowl and the liquid outlet are airtight to achieve the airtight and flameproof effect.
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWFX355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3450*1010*1030 |
| LWFX420*1680 | 420 | 4 | 3600 | 3050 | 30-37 | 4000 | 3500*1450*1300 |
| LWFX530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 5500 | 4100*1600*1450 |
| LWFX720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
Features
- All parts coming into contact with the product are made of stainless steel.
- 3-phase AC motor for controlled torque starting via frequency converter
- Bowl speed is adjustable via VFD to obtain the required G-force for optimized separation
- Pond depth in the bowl is adjustable for optimized balance between liquid clarity and solids dryness
- Conveying speed is adjustable for optimized balance between liquid
- Low personnel costs due to continuous and automatic operation.
- Highest g-force for higher solids output
- Automatic adjustment of differential speed via VFD
- Two motor drive
- Belts for both primary motor and secondary motor
The bowl, conveyor, inlet tube, outlets, cover and other parts in direct contact with the process media are all made of stainless steel. The discharge ports, conveyor flights and feed zone are protected with materials that are highly resistant to erosion. The frame is made of mild steel with an epoxy enamel finish.
Wear protection
We supply a wide range of wear protection to meet the requirements of the many different applications, including:
Welded hard facing or spray coating
Ceramic
Tungsten carbide tiles
Chilled hard metal portcastings
Plastic liners
Design

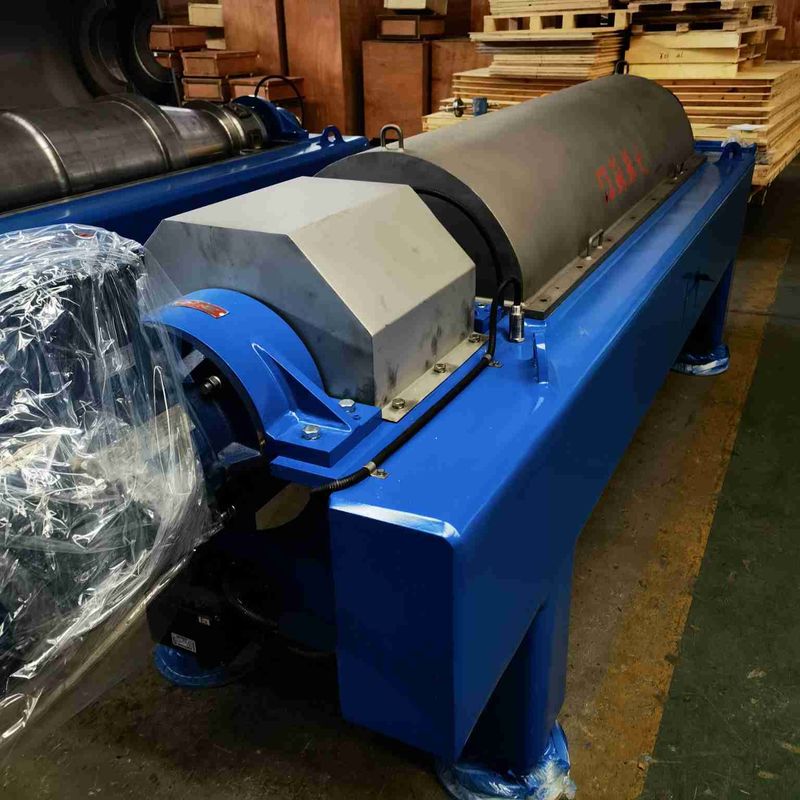

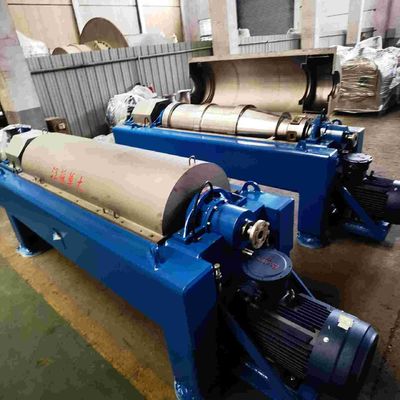

The rotating part of centrifuges is mounted on a compact, in-line frame, with main bearings at both ends. Vibration dampers are placed under the frame. The rotating part is enclosed in a casing with a cover and a bottom section with integrated outlets for both solids and the liquid being removed.
