Vertical Mining Concentration Scraper 1250L Solid Liquid Separation Centrifuge 800rpm
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PGZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Features: | Automatic Working | Type: | Separating Plant |
|---|---|---|---|
| Centrifugal Type: | Basket Centrifuge | Application: | Solid Liquid Separation, Dewatering |
| Machine Control: | PLC Control | Key Selling Points: | Convenient |
| Motor Start Control: | Frequency Control | Warranty: | 1 Year |
| High Light: | Solid Liquid Separation Centrifuge 800rpm,800rpm low speed centrifuge,1250L Solid Liquid Separation Centrifuge |
||
Product Description

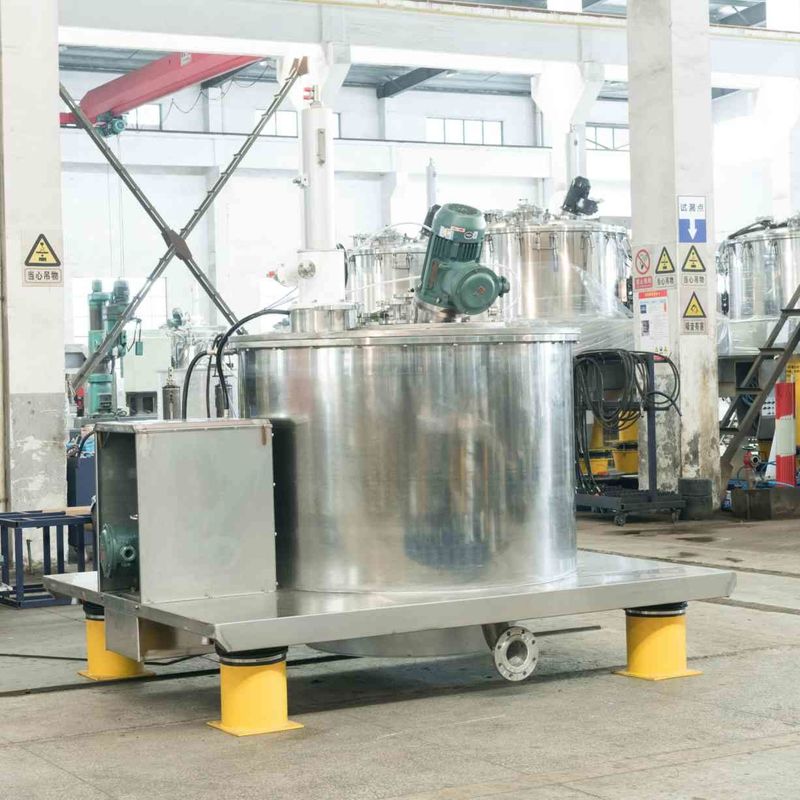

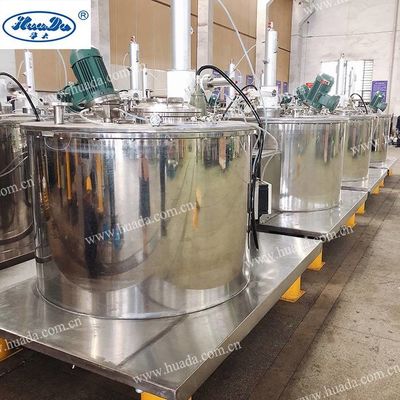

PGZ Vertical Mining Concentration Scraper Bottom Discharge Solid Liquid Separation Centrifugal Machines
Main Features
1) The centrifuge adopts whole enclosed structure with dependable seal facility which is filled with nitrogen to meet the explosion proof demand.
2) Adopted with quick big open cover structure and the optional swash plated distributor, products can be distributed evenly to reduce vibration caused by unbalanced distribution. With additional washing function, it has a better cleaning effect.
3) The motor is set on top of the machine and directly linked to main shaft which will bring higher transmission efficiency and reduce friction powders.
4) Pneumatic assisted scraper is adopted to remove the remnant filter cake and CIP system is optional to secure clarity to be in accordance with GMP.
5) Frequency control system is adopted to assure a stable start-up. PLC is adopted to ensure a complete automatic process including feeding, filtering, washing and discharging etc. It adopts dynamic (regenerative) braking without friction powder pollution and friction heat,it is much safer.
6) No need of human supervision. Following security systems are adopted: self-monitoring and protecting system, speed inspection, product level detection, over-vibration protection, over-heat protection for motor, mechanical and electric double interlock for scraper totary and movement, interlock for cover's open and machine's running.
Technical Parameters
| Items | Models | ||||||
| PGZ800 | PGZ1000 | PGZ1250 | PGZ1400 | PGZ1600 | PGZ1800 | ||
| Basket Diameter(mm) | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | |
| Effective Basket Height(mm) | 420 | 550 | 630/800 | 750 | 800/1000 | 1000 | |
| Basket Volume(L) | 100 | 190 | 400/500 | 600 | 800/1000 | 1250 | |
| Max. Capacity(kg) | 135 | 230 | 500/600 | 700 | 1000/1250 | 1500 | |
| Motor Power(kw) | 7.5/11 | 15 | 22/30 | 30/37 | 37/45 | 55 | |
| Max. Speed(r/min) | 1200/1500 | 1100/1200 | 1000/1200 | 950/1150 | 850 | 800 | |
| Max. Separation Factor | 645/1007 | 678/805 | 700/1007 | 700/1036 | 647 | 645 | |
| Weight(kg) | Platform construction | 2000 | 3500 | 5000 | 9000 | 12000 | 17000 |
| Square box structure | 4000 | 6000 | 13000 | ||||
Product Description
Main Application
PGZ series centrifuges have a prefect automatic performance and a large processing capacity.In accordance with users' demand,procedures such as feeding, separating,washing,dehydrating and discharging can all be automatically finished followed by remote control.It's suitable for solid liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid.
For example:
1) Chemical Industry:gypsum,ammonium sulphide,bluestone,potassium chloride,borax, dyestuff, resin,pesticide.
2) Pharmaceutical Industry:salt,monosodium glutamate,food additive,starch,sugar,flavoring, antibiotic,vitamin.
3) Food Industry:sodium glutamate.
4) Mine and Metallurgy Industry:copper,zinc,minerals,and metal refining.
5) Environmental Protection Industry:pure water sludge and sewage sludge.
Structure:
1. Structure: Feeding pipe washing pipe, observation widow, exhaust hole tenting hole have been applied in the turning over cover of the out shell.The sealing structure, rotating drum and out-shell,turning over cove r are all made of stainless steel (SUS304),machine chassis parts are made of cast material,the surface is covered with stainless steel.The rotating drum,inside and outside surfaces of the out-shell,the exposed parts of the machine have all been polish treated.
2. All tightening parts are made of stainless steel
3. PLC control is applied
4. Electrical material procedure control.
5. Transmission and brake;normal motor(or explosion prevention motor)+frequency modulator+power consumption brake
6 . Pneumatic system
7. Non foundation form (balance pieces+imported high precision liquid type resistance vibration separation system).
