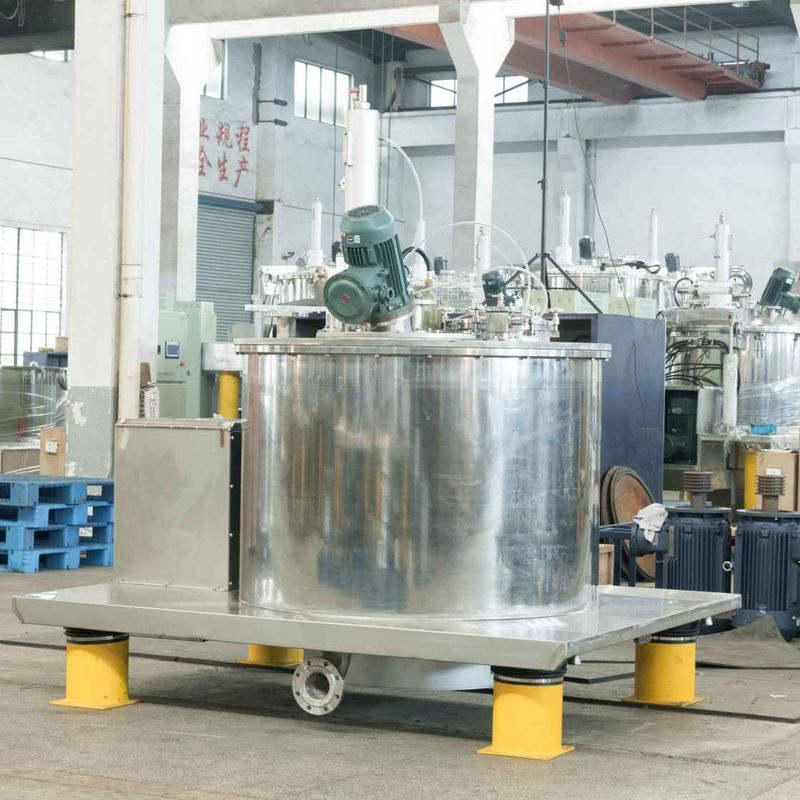

500L Plant Animal Oil Centrifuge Machine 1200rpm Bottom Discharge Sedimentation

Product Description

PGZ High Productivity Saving Labor Scraper Bottom Discharge Sedimentation Industrial Plant & Animal Oil Centrifuge

Introduction:

PGZ series centrifuge has the features of asepsis, sanitation, enclosed explosion-proof, multiple safety protections and several configuration options, widely used in such industries as pharmacy, fine chemistry and food etc industry.

Main Application
PGZ series centrifuges have a prefect automatic performance and a large processing capacity.In accordance with users' demand,procedures such as feeding, separating,washing,dehydrating and discharging can all be automatically finished followed by remote control.It's suitable for solid liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid. For example:

1)Chemical Industry:gypsum,ammonium sulphide,bluestone,potassium chloride,borax, dyestuff,resin,pesticide.

2)Pharmaceutical Industry:salt,monosodium glutamate,food additive,starch,sugar,flavoring, antibiotic,vitamin.

3)Food Industry:sodium glutamate.

4)Mine and Metallurgy Industry:copper,zinc,minerals,and metal refining.

5)Environmental Protection Industry:pure water sludge and sewage sludge.

Structure and Principle
It adopts platform structure, with out shell welded with bottom plate. Shell cover is fixed to shell body with flange.

Hydraulic pressure is applied to open the cover. Shell cover is equipped with feeding pipe, washing pipe sight glass, viewing-light, scarper device etc.. Standard flanges are applied for the external pipe joints.

It is a kind of vertical centrifuge with PLC control, automatic filtration type and down scraping discharging, which adopts continuously running and intermittent discharge. Driven by the motor, the drum rotates step by step to the speed suitable for feeding, then the products which is to be separated enter to the rotating drum through feeding pipe, Centrifuge would stop feeding if the products' volume amounts reach to the predetermined data and the speed raises higher for separation.

Suspension's separation can be made possible by filter cloth (or filter net) under the effect of centrifugal force. Liquid phase is draught out through filter layer and thrown into the empty chamber and finally discharged from liquid outlet while the solid phase remains on the drum to form bucket-shaped filter cake which will be washed in the following steps.

When filter cake meets the requirement of separation, centrifuge will be slowed down to the discharging speed. The scraper begins to take effect and scrape the filter cake from inner wall to the products outlet of centrifuge.

Technical Parameters
