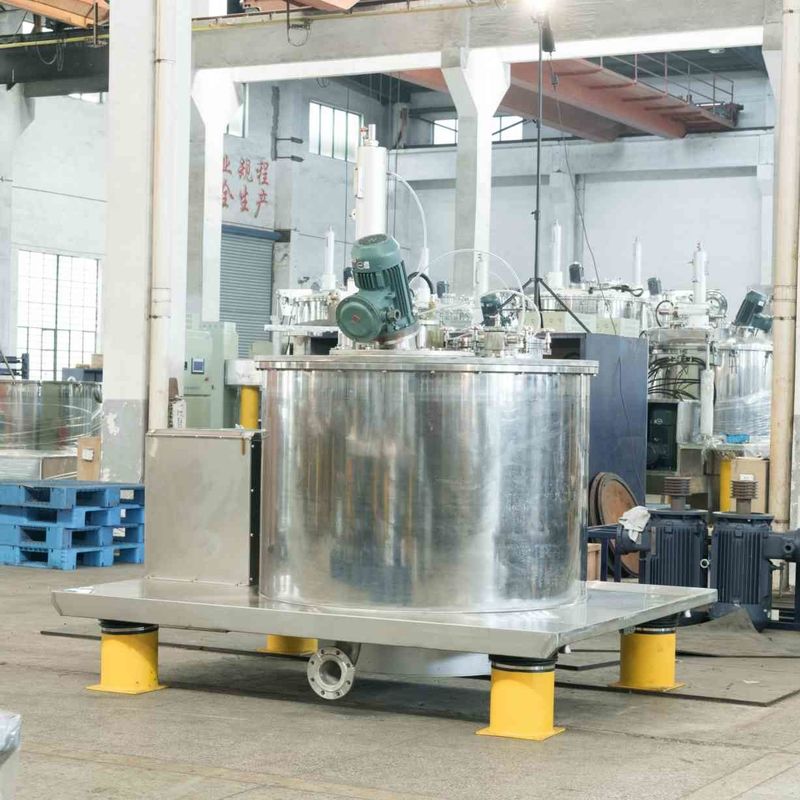

Automatic CE Scraper 1100rpm Bottom Discharge Centrifuge 230kg For Latex Separating
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PGZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Features: | Automatic Working | Type: | Separating Plant |
|---|---|---|---|
| Centrifugal Type: | Basket Centrifuge | Application: | Solid Liquid Separation, Dewatering |
| Machine Control: | PLC Control | Key Selling Points: | Convenient |
| Motor Start Control: | Frequency Control | Warranty: | 1 Year |
| High Light: | 1100rpm Bottom Discharge Centrifuge,1100rpm automatic centrifuge,Bottom Discharge Centrifuge 230kg |
||
Product Description
PGZ Automatic Safety Certification CE Certification Scraper Bottom Discharge Centrifuge For Latex Separating
Configurations
Optional configurations
1. External construction: Big hinged cover, fully hinged cover and flat cover, etc.
2. Feed type: Inclined feed disk, side feeding and middle feeding.
3. Scraper discharge: Pneumatic or hydraulic.
4. Motor drive: Common motor, inverter-duty motor, explosion-proof motor, dynamic braking or feedback braking
5. Safety protection: Nitrogen protection system, explosion and vibration protection, temperature protection, electric-mechanical interlocking, rotation monitoring and overload protection.
6. Surface treatment: Mirror finishing, matt finishing, and dulling.
7. Electric element: Supplied by brand manufacturer.
8. Residual solid cake treatment: Air counter-blowing, and Air blow device on scraper.
9. Program control: Programmable control, and cake layer controller.
10. CIP system: Cleaning ball and spray pipe.
11. Nitrogen protection system: Automatic nitrogen supply device, hydraulic sealing device and gas-liquid separator.
12. Coating treatment: HALAR lined or PE lined.
Technical Parameters
| Items | Models | ||||||
| PGZ800 | PGZ1000 | PGZ1250 | PGZ1400 | PGZ1600 | PGZ1800 | ||
| Basket Diameter(mm) | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | |
| Effective Basket Height(mm) | 420 | 550 | 630/800 | 750 | 800/1000 | 1000 | |
| Basket Volume(L) | 100 | 190 | 400/500 | 600 | 800/1000 | 1250 | |
| Max. Capacity(kg) | 135 | 230 | 500/600 | 700 | 1000/1250 | 1500 | |
| Motor Power(kw) | 7.5/11 | 15 | 22/30 | 30/37 | 37/45 | 55 | |
| Max. Speed(r/min) | 1200/1500 | 1100/1200 | 1000/1200 | 950/1150 | 850 | 800 | |
| Max. Separation Factor | 645/1007 | 678/805 | 700/1007 | 700/1036 | 647 | 645 | |
| Weight(kg) | Platform construction | 2000 | 3500 | 5000 | 9000 | 12000 | 17000 |
| Square box structure | 4000 | 6000 | 13000 | ||||
Main Features
1)The centrifuge adopts whole enclosed structure with dependable seal facility which is filled with nitrogen to meet the explosion proof demand.
2)Adopted with quick big open cover structure and the optional swash plated distributor, products can be distributed evenly to reduce vibration caused by unbalanced distribution. With additional washing function, it has a better cleaning effect.
3)The motor is set on top of the machine and directly linked to main shaft which will bring higher transmission efficiency and reduce friction powders.
4)Pneumatic assisted scraper is adopted to remove the remnant filter cake and CIP system is optional to secure clarity to be in accordance with GMP.
5)Frequency control system is adopted to assure a stable start-up. PLC is adopted to ensure a complete automatic process including feeding, filtering, washing and discharging etc. It adopts dynamic (regenerative) braking without friction powder pollution and friction heat,it is much safer.
6)No need of human supervision. Following security systems are adopted: self-monitoring and protecting system, speed inspection, product level detection, over-vibration protection, over-heat protection for motor, mechanical and electric double interlock for scraper totary and movement, interlock for cover's open and machine's running.
Structure and Principle
It adopts platform structure, with out shell welded with bottom plate. Shell cover is fixed to shell body with flange. Hydraulic pressure is applied to open the cover. Shell cover is equipped with feeding pipe, washing pipe sight glass, viewing-light, scarper device etc.. Standard flanges are applied for the external pipe joints.
It is a kind of vertical centrifuge with PLC control, automatic filtration type and down scraping discharging, which adopts continuously running and intermittent discharge. Driven by the motor, the drum rotates step by step to the speed suitable for feeding, then the products which is to be separated enter to the rotating drum through feeding pipe, Centrifuge would stop feeding if the products' volume amounts reach to the predetermined data and the speed raises higher for separation. Suspension's separation can be made possible by filter cloth (or filter net) under the effect of centrifugal force.
Liquid phase is draught out through filter layer and thrown into the empty chamber and finally discharged from liquid outlet while the solid phase remains on the drum to form bucket-shaped filter cake which will be washed in the following steps. When filter cake meets the requirement of separation, centrifuge will be slowed down to the discharging speed. The scraper begins to take effect and scrape the filter cake from inner wall to the products outlet of centrifuge.
