Vertical Bottom Discharge Centrifuge

Product Description

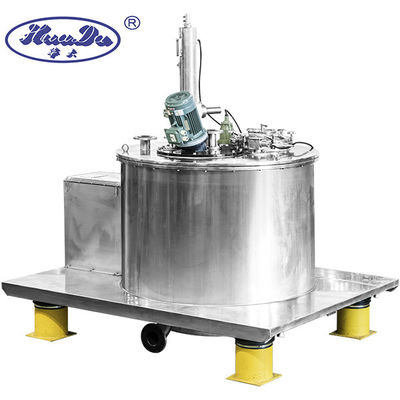

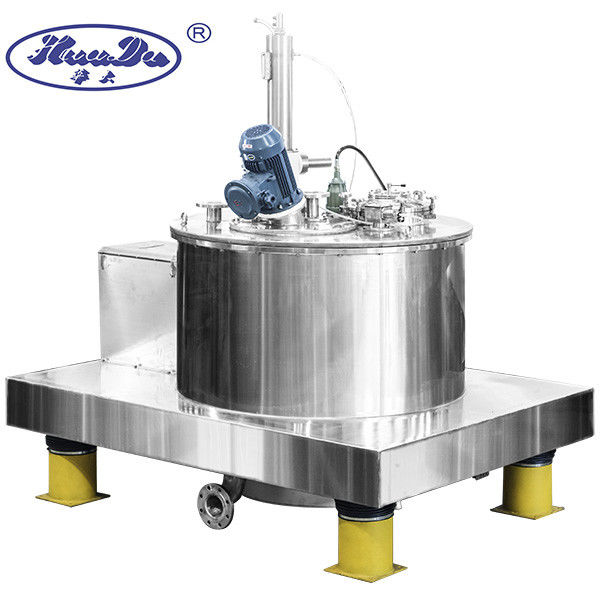

PGZ Automatic Vertical Scraper Bottom Discharge Pharmaceutical Centrifuges

PGZ series of products, with the advantages of LGZ products, is designed with fixed cover, suitable for the separation of toxic, volatile, inflammable and explosive materials.

Working Principle

The bottom discharge scraper centrifuge is the automatic vertical filtering centrifuge. The motor drives the basket to rotate at a high speed through the belt, and the materials to be separated enter into the centrifuge basket at a high speed through the feeding system under the control of the pre-programmed program. Under the action of the centrifugal field, the material will be filtered through the filter media (filter cloth/screen), the liquid phase will be discharged through the liquid outlet, and the solid phase will be retained in the basket. The material detection device will detect the filling level of the material in real time. When the basket cake reaches the loading capacity specified by the machine, it stops feeding. The filter cake is then washed and dried. After the cake meets the dehydration requirements, the centrifuge reduces to the scraping speed, and the scraper removes the cake under the hydraulic (pneumatic) drive, and then the cake is discharged through the solid discharge port of the centrifuge at the lower part.

Technical Parameters
