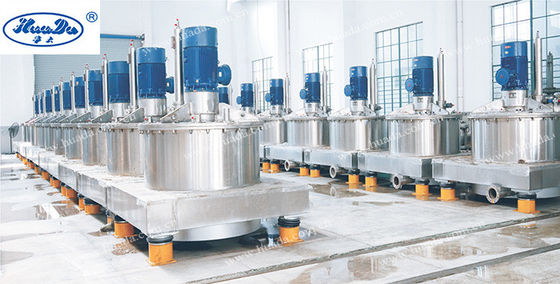

Pharmaceutical Bottom Discharge Centrifuge

Product Description

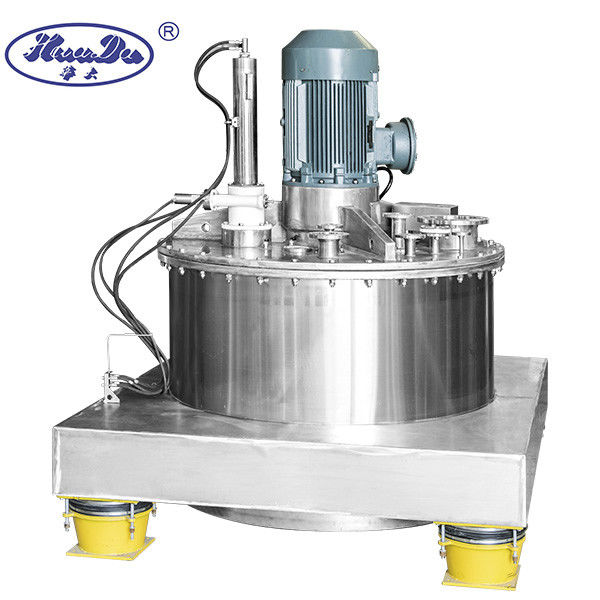

PAUT Large Capacity Scraper Bottom Discharge Pharmaceutical Centrifuge

Product features

• It is designed with a simple structure, stable and simple operation and excellent damping performance.
• The top-suspended dynamical straight connected structure is adopted, in which, the transmission and the gyration center of the basket are aligned with the machine center, with stable operation.
• It is provided with a square box base + liquid damping shock absorber system, with a low center of gravity and excellent vibration attenuation.
• An independent bearing seat is adopted, with large bearing span, low center of gravity, large bearing capacity and great operation performance.
• The body is designed with a full load-bearing structure, with high rigidity, simple structure and good appearance.
• The body is designed with a full load-bearing structure, with high rigidity, simple structure and good appearance.
• High efficiency and large handling capacity
• Large length-to-diameter ratio and large loading volume
• Wide application of materials
• Automatic control + multiple safety protection equipment operation, with high reliability
• Automatic program control, reliable operation, and high safety.
• The frequency conversion speed regulation drive is adopted, with stable start, and effective overload protection of the motor.
• Multiple safety protection + non-polar layered scraping control
• Explosion-proof, anti-corrosion and anti-pollution
• It has a fully enclosed structure, and the motor and spindle are directly connected, without belt transmission or environmental pollution due to friction dust.
• Nitrogen protection device can be configured for explosion-proof applications.
• Anti-corrosion alloy material and coating treatment can be adopted.

Scope of Application

PAUT series of centrifuges are applicable to washing and solid-liquid separation of suspension media containing solid particles, as well as solid-liquid separation of media containing a crystalline solid phase, which can be widely used. This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.

Technical Parameters
