GMP Top Discharge Centrifuge
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000-60000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Bag Lifting Top Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Manual Batch Operating | ||
| Highlight: | GMP Top Discharge Centrifuge,GMP Basket Centrifuge,APIs Top Discharge Centrifuge |
||
Product Description

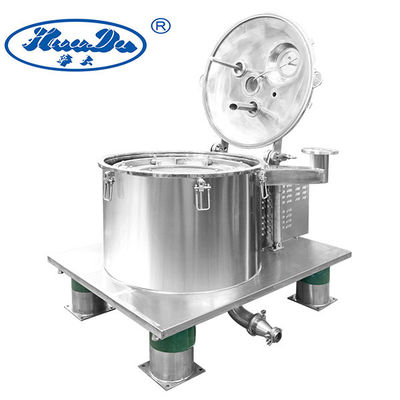

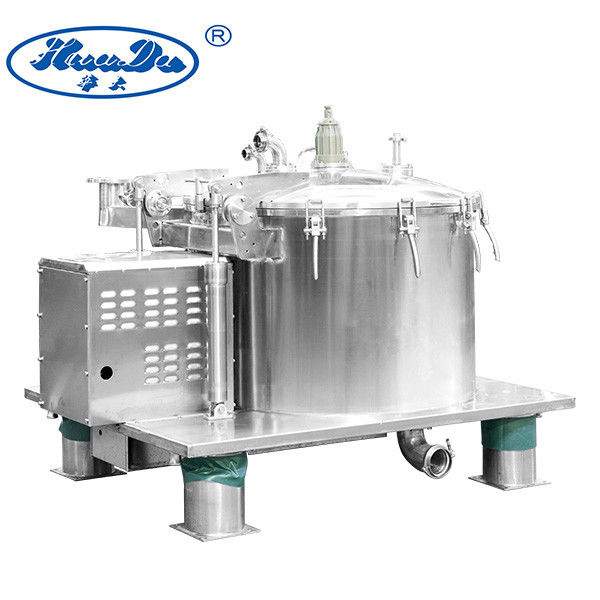

PSD Bag-Lifting Top Discharge GMP Centrifuges For Active Pharmaceutical Ingredients (APIs)
Product Overview
Aided mechanical discharge is adopted for the PSD centrifuge. Combining high efficiency of the automatic peeler centrifuge and wide application scope of the top discharge centrifuge, this product is advanced in structural design, small in floor covering area, low in failure rate and high in cost performance.
Technical Parameters
| Items | Models | ||||||
| PSD800 | PSD1000 | PSD1200 | PSD1250 | PSD1500 | PSD1600 | PSD1800 | |
| Basket Diameter(mm) | 800 | 1000 | 1200 | 1250 | 1500 | 1600 | 1800 |
| Effective Basket Height(mm) | 450 | 520 | 550 | 630 | 680 | 800 | 750 |
| Basket Volume(L) | 120 | 200 | 270 | 400 | 555 | 800 | 910 |
| Max. Capacity(kg) | 150 | 250 | 340 | 500 | 700 | 1000 | 1100 |
| Max. Speed(r/min) | 1500 | 1200/1400 | 1100 | 1000/1200 | 850 | 850 | 780 |
| Max. Separation Factor | 1007 | 805/1096 | 812 | 700/1007 | 606 | 647 | 612 |
| Motor Power(kw) | 7.5 | 11/15 | 15 | 18.5/22 | 30 | 37 | 37 |
| Dimension(mm) | 1730*1200*1320 | 1970*1400*1500 | 2300*1550*1500 | 2550*1800*1780 | 2750*2200*1750 | 3200*2400*2150 | 3300*2500*2150 |
| Weight(kg) | 1500 | 2500/2700 | 3200 | 4000/5000 | 6500 | 8500 | 10000 |
Working Principle
Under the action of centrifugal force, the materials reach the basket wall, where the liquid phase passes through the filtering medium covered on the basket wall and then flows through the pores on the wall to the inner wall of the enclosure, then drops off to the bottom tray and is discharged out via the liquid discharge port. While the solid matters are retained inside the basket and fully washed to complete the solid-liquid separation. After the equipment is shutdown, open the flippable cover, remove the filter bag with special lifting appliances, transfer it to the unloading area for discharging. After that, install the basket lip and filter bag back, lock the basket lip, close the flippable cover and lock it, and at this time, the next circulation can be started.
Scope of Application
This product can be used for the solid-liquid separation of suspensions containing solid particles, as well as for the solid-liquid separation of fibrous materials, such as gypsum, copper sulfate, potassium chloride, borax, dyes, pesticides, salt, monosodium glutamate, food additives, starch, sugar, chemical seasoners, antibiotics, vitamins, copper, zinc, aluminum and other minerals, metal refining, sludge treatment, and sewage treatment has been widely applied in the pharmaceutical, chemical, food, environmental protection, energy and other industries.
Product Features
• Low labor intensity and high efficiency: configured with a hydraulic cantilever crane for mechanical discharge.
• Grains less prone to breakage: special-purpose slings used to lift and discharge the materials as a whole.
• Stable operation: low gravity center of the equipment designed and liquid damping device adopted to attenuate vibration.
• Variable frequency control: stable startup and adjustable separation factor.

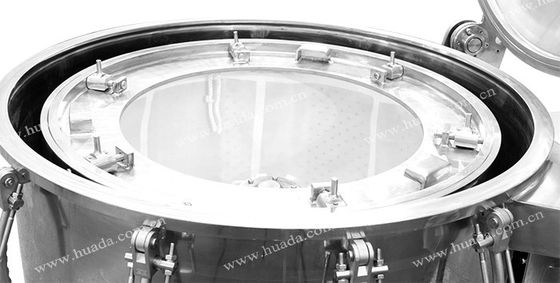

• Easy replacement of filter cloth: basket lip designed with special structure that can be disassembled fast.
• Optional configurations for the installation of cake layer control device, atomizing & washing pipe, CIP online cleaning system, explosion-proof sight glass with lamp, etc.
• Multiple safety protections: nitrogen protection system, overvibration protection, cover opening protection, overload protection, electromagnetic interlocking, etc.
• Cover opening mode: hydraulic drive and mechanical drive.
