Horizontal Worm Screen Centrifuge

Product Description

LLW Horizontal Worm Screen Centrifuge For Crystal Particle Separation

Description

Horizontal screen worm centrifuge is an advanced solid-liquid separation equipment featuring low energy consumption, high performance, high automation, high production efficiency, good separation effect, and continuous working capability. After the suspension enters the centrifuge, the liquid phase is discharged out through the screen and the holes on the Bowl wall under the centrifugal force generated by the high-speed revolution of the Bowl, while the solid phase is retained on the screen to form a cake layer and then pushed to the discharge port through the spiral under the action of the relative differential. In this way, automatic and continuous separation of the solid and liquid phases is realized.



Successful Applications

Horizontal screen worm centrifuge has been widely applied in the chemical, food, salt, mining, pharmaceutical and other industries. Based on its separation principle, structural characteristics and relatively specific separation objects, this product is mainly applicable to the separation of materials with relatively large particle sizes and without strict requirements for the integrity of the particles, such as various crystals, fibers, crop shells, and plastic particles.



Successful Applications

Adipic acid	Mirabilite	Pyrazole	AH-Salt	Ammonium persulfate	Gypsum	Silver nitrate	Ammonium phosphate
Ammonium sulfate	Ion exchange resin	Sodium chloride	Anthracene	Sodium chlorate	Acetylsalicylic acid	Sodium formate	Manganese sulfate
Borax	Methyl collulose (MC)	Calcium formate	Sodium nitrate	Sodium perborate	Sodium phosphate	Citric acid	Sodium sulfate
Polystyrene	Polystyrene alcohol	Sodium thiosulfate	Potash (potassium carbonate)	Tartaric acid	Crystallized soda	Potassium vanadium	Trisodium phosphate
Potassium bicarbonate	Zinc sulfate	Pentaerythritol	Plastic particles	Ammonium thiosulfate	Sodium metaborate	Copper sulfate	Glacial acetic acid
Potassium chloride	Potassium pentasulfide	Potassium phosphate	Potassium sulfate	......





Advantages

Safety

With machine safety certification

Provided with speed detection

Overvibration protection

Motor overload/overtemperature protection

Explosion protection (optional)

Bearing temperature rise monitoring and protection



Eco-friendly

Low energy consumption

Highly airtight

Variable frequency control and stepless speed regulation

Small vibration and low noise



High efficiency

Continuous working and large handling capacity

Easy to inspect and maintain, with low failure rate

With large pushing moment to avoid material blocking

Low moisture in solid phases



Wide application

Multiple Materials

321, 304, 316L, 2205, 2507 904UTA2, Hastelloy, etc.



Multiple Configurations

Diverse differential systems

Diverse filtering media

Diverse feeding modes

Diverse lubricating methods



Multiple working conditions designed for the Bowl cone from multiple angles

10°,15°,20°



High degree of automation

Frequency conversion + PLC control

Adaptive compensation of the hydraulic differential system





Features of Planetary Differential

Compared to the cycloidal pinwheel differential, the planetary differential is more uniquely advantageous, especially in: power dividing and adaptive compensation during power transmission; achieving transmission ratio of high efficiency and high speed; coaxality of the input shaft and output shaft; compact structure, small volume, small mass, balanced stress, and strong impact resistance. Currently, the planetary transmission system is more used than the cycloidal pinwheel system as the speed reducer, increaser and variator for various mechanical driving systems.



Main Features of Planetary Differential:

Small volume, light weight, compact structure and large bearing capacity;

High transmission efficiency, with the maximum value of 0.97~0.99;

Transmission comparison design to realize composition and decomposition of motions as well as various complicated variable motions;

Stable motion, strong resistance to impact and vibration.



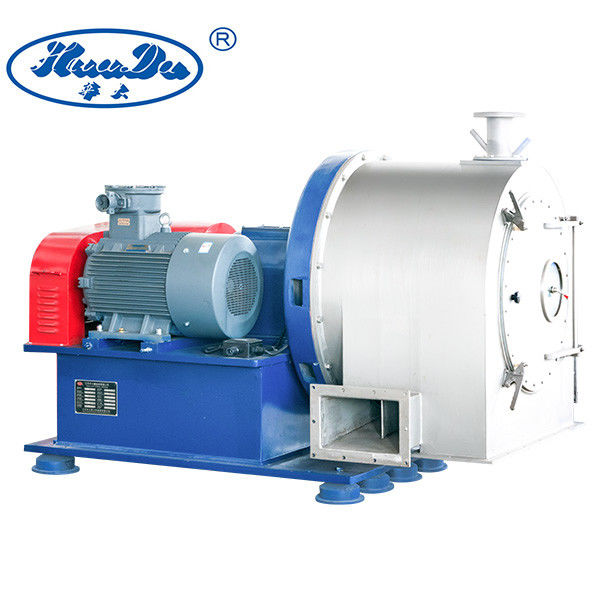

LLW Screen Worm Centrifuge (Standard Type)

Description

Single-motor variable-frequency driving, stepless speed regulation.

Cycloidal pinwheel differential or planetary differential is adopted to ensure a certain speed difference between the spiral and Bowl.



Technical Parameters

Model	Bowl Diameter (mm)	Speed (r/min)	Separation Factor	Capacity(m³/h)	Power of Driving Motor (kW)	Weight (kg)	Dimension (L×W×H) (mm)
LLW320	320	2630	1240	0.5-3	7.5	700	1050*1350*1000
LLW350	350	3000	1765	1-5	11	1200	1520*1380*1190
LLW450	450	2500	1575	2-8	22	1700	1570*1240*1200
LLW530	530	2000	1190	3-10	30	2500	1680*1390*1340
LLW630	630	1800	1140	5-15	37	3500	2100*1430*1530
LLW800	800	1500	1000	8-20	55	4500	2500*2200*1800
LLW1000	1000	900	450	10-30	75	6200	3200*2200*2300

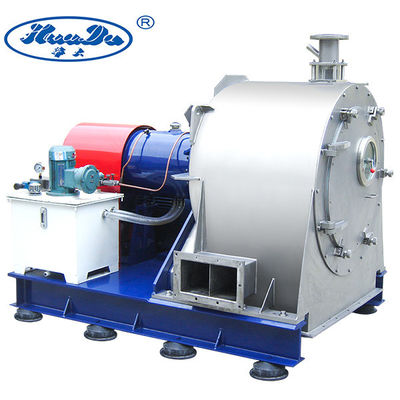

LLW Screen Worm Centrifuge (Mechanical Gearbox Type)

Configured with hydraulic differential, small in volume and large in pushing moment, applicable to separation of materials with high solid content.

Differential feedback control, with the functions of overload alarm at the leading-out terminal, maximum pressure alarm, and shutdown.

Online stepless control of differential speed at 1-30r/min, without shutdown of the equipment, realizing full-automatic control.

Designed with automatic differential adjustment and power compensation, as well as large compensation range to eliminate the blockage of materials, highly adaptive to various working conditions.

The pushing moment at the initial differential remains unchanged despite the change of differential (for better operation at small differential speed).

Deslagging can be enabled in the static state of the Bowl, with no need to disassemble the equipment for washing, easier for troubleshooting.





Technical Parameters

Model	Bowl Diameter (mm)	Speed (r/min)	Separation Factor	Capacity(m³/h)	Power of Driving Motor (kW)	Power of Hydraulic Station Motor (kW)	Weight (kg)	Dimension (L×W×H) (mm)
LLW530Y	530	2000	1190	3-10	30	11-18.5	2500	1680*1390*1340
LLW630Y	630	1800	1140	5-15	37	15-30	3500	2100*1430*1530

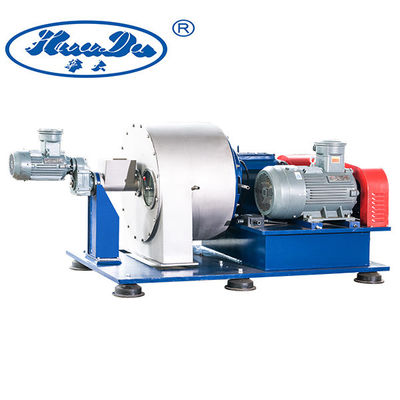

LLW Screen Worm Centrifuge (Screw Feeding Type)

Stable and reliable feeding, with small vibration

Simple structure in whole, easy to operate and maintain

Applicable to the separation of crystal materials with high concentration and poor fluidity





Technical Parameters

Model	Bowl Diameter (mm)	Speed (r/min)	Separation Factor	Capacity(m³/h)	Power of Driving Motor (kW)	Weight (kg)	Dimension (L×W×H) (mm)
LLW350LX	350	2500	1765	1-5	11	1400	2300*1180*1000
LLW450LX	450	2500	1575	2-8	22	2000	2360*1210*1040
LLW530LX	530	2000	1190	3-10	30	2800	2650*1350*1230
LLW630LX	630	1800	1140	5-15	37	4200	3050*1580*1400
