Stainless Steel 316L 1500rpm Low Temperature Centrifuge For CBD Oil
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PSB600P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Effective Volume (L): | 200 | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Operate: | Manual Batch Operating |
| Basket Height (mm): | 500 | Shell Diameter (mm): | 700 |
| Highlight: | 1500rpm low temperature centrifuge,1500rpm industrial basket centrifuge,low temperature centrifuge CBD Oil |
||
Product Description
PSB600P Series GMP Standard Stainless Steel 316L Low-Temperature Extraction Centrifuge For CBD Oil
Brief introduction

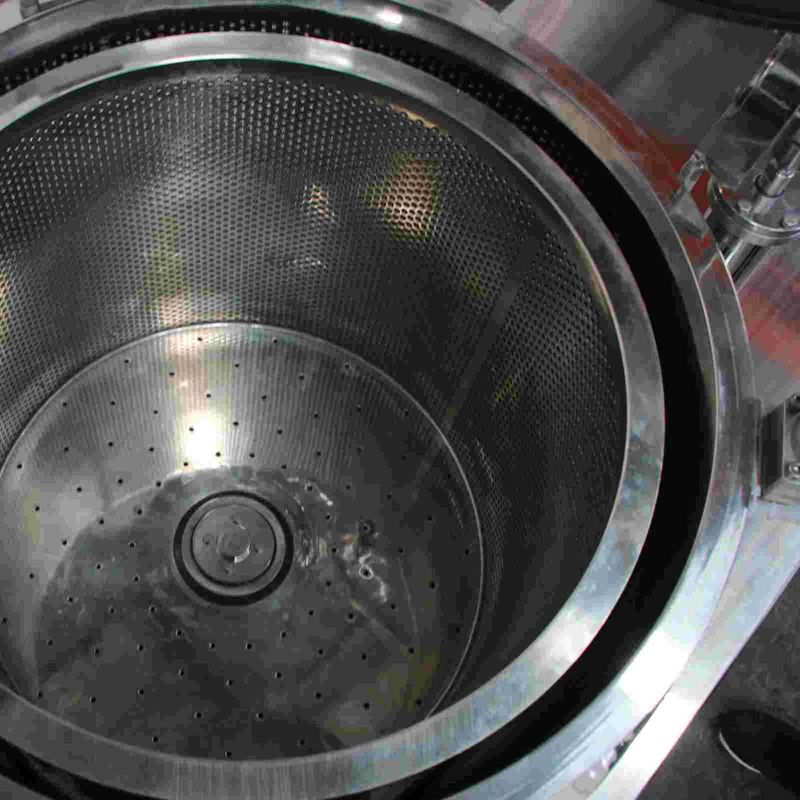

The machine adopts the basket design of lower hub and flat basket bottom, and cooperates with the automatic programming of centrifuge forward and backward washing, grading speed-up and drying, completing a cycle of automatic operation process such as immersion, extraction, dehydration and drying.
Technical Parameters
| Items | Models |
| PSB600P | |
| Effective Volume (L) | 200 |
| Basket Volume (L) | 140 |
| Basket Diameter (mm) | 600 |
| Basket Height (mm) | 500 |
| Shell Diameter (mm) | 700 |
| Shell Height (mm) | 620 |
| Max. Loading Weight (kg) | 30 |
| Basket Speed (r/min) | 1500 |
| Separation Factor | 755 |
| Motor Power | 5.5 |
| Transmission Mode | Belt drive |
| Dimension (L×W×H) (mm) | 1670*1100*1250 |
Technological innovation
Leading - Becoming industrial benchmark through continuous research and development and accumulation of application technologies
In recent years, Huada has developed a number of new product and new technologies:
- Vertical bag-pulling bottom discharge centrifuge obtaining national invention patent
- Horizontal thickening and filtration centrifuge
- Intelligent remote control system technology
- Residual filter cake removal technology
- CIP technology
- Centrifuge explosion-proof application technology
- New generation of inert gas protection (explosion-proof) device
- Sludge dewatering and drying system
- Filtration and separation process design and supporting technology
- Drilling mud separation process technology
We don't just satisfy that the centrifuges can meet the separation requirements, but we pay more attention to other issues of how to reduce materials remained in the machines, increase processing output, reduce damage to the solid particles, lower energy consumption, reduce maintenance costs, improve working environment and reliability.
We conduct research and development of system integration technology and intelligent control technology, to provide customers with separation machinery and equipment which is safer, more intelligent, better in performance, environment-friendly and energy saving.
As a member of technical committee for standardization for China’s separation machinery, we have held revision of several industrial standards: GB/T 19815 Centrifuge Safety Requirements, JB/T 10769.1－2007 Types and Basic parameters of Three-column and plate Centrifuges, JB/T 8652－2008 Spiral Discharge Filtering Centrifuges and JB/T 5284-2010 Explosion-proof Peeler Centrifuge.
In 1998. our products passed national machinery safety certification, and reexamination is conducted each year. We have undertaken a number of national torch plan projects, key new product, technology-based small and mid-sized enterprise innovation fund projects.
The accumulation of continuous research and development and application technology, become the industry benchmark. We are becoming industrial benchmark through continuous research and development and accumulation of application technologies. Profession makes trust!
