Continuous Decanter Centrifuges
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LWXF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD50000-250000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK Or SKF |
| Application: | Explosion-proof Decanter Centrifuge | ||
| Highlight: | Continuous Decanter Centrifuges,SKF Explosion Proof Centrifuge,Oilfield Drilling Decanter Centrifuges |
||
Product Description

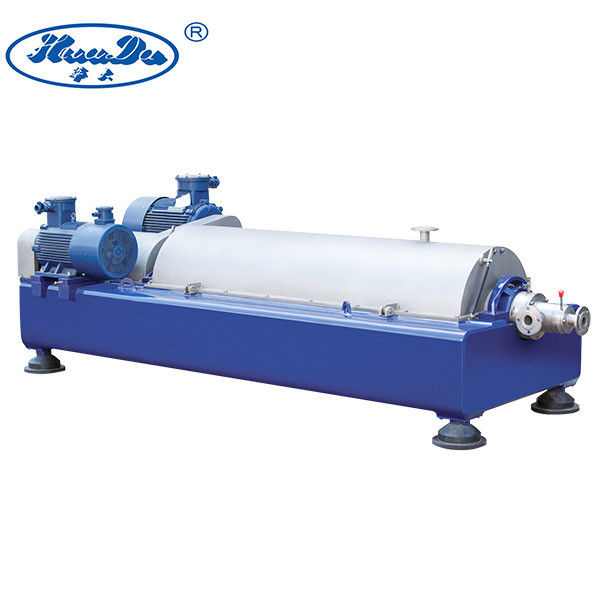

LWXF Explosion-Proof Oilfield Drilling Continuous Decanter Centrifuges
Description
This type of centrifuge is mainly used in the chemical, petrochemical and pharmaceutical industries involving flammable and explosive occasions. In the process of solid-liquid separation, gases are not allowed to leak into the extraneous air, or extraneous air is not allowed to enter the equipment, or it may lead to explosion. The product is configured with an airtight seal with automatic compensation function, which allows a dynamic enclosed space with micro-positive pressure to be formed inside the centrifuge during the process of operation, so as to realize good sealing and explosion-proof effect.
Unique Sealing Structure
Open sealing
It is applied in the occasions where no material or gas inside the equipment will be emitted to the environment and it is not necessary to separate the Bowl from the ambient atmosphere.
Vapor-tight sealing
It is applied in the occasions where the process medium will disperse and pollute the atmosphere, or the process medium is not expected to contact the atmosphere.
Air-tight sealing
It is applied to ensure operation safety in the occasions where inert gases are added to the equipment from the sealing position and toxic and corrosive or flammable medium is used.
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWFX355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3450*1010*1030 |
| LWFX420*1680 | 420 | 4 | 3600 | 3050 | 30-37 | 4000 | 3500*1450*1300 |
| LWFX530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 5500 | 4100*1600*1450 |
| LWFX720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
