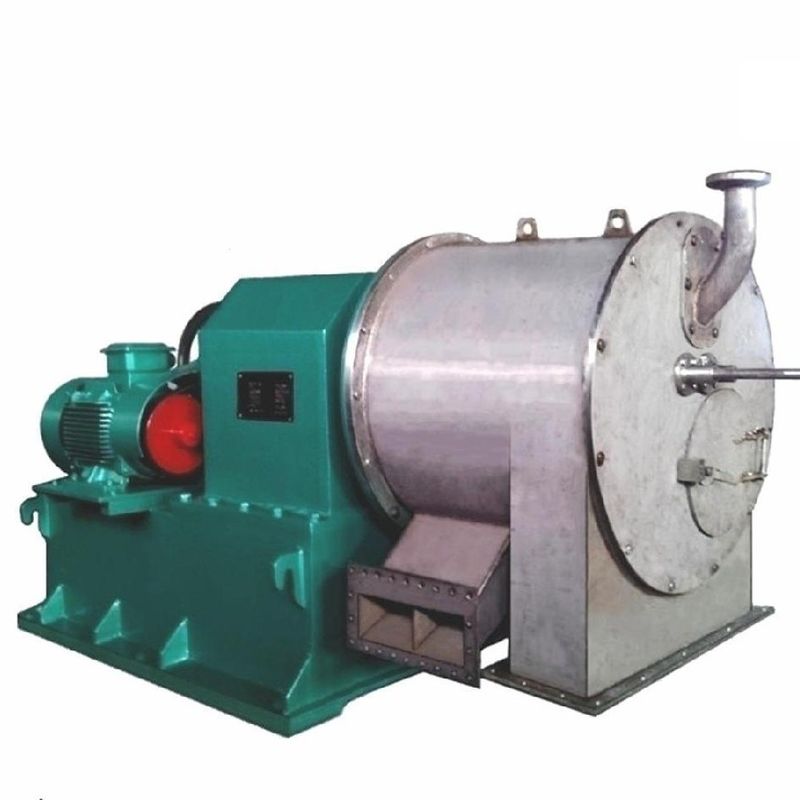

Automatic Sugar Separating 2100rpm Pusher Centrifuges SS304
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | HR500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Basket Diameter (mm): | 430/500 | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Pusher Discharge | Speed (r/min): | 1200-2100 |
| MOC: | Stainless Steel | Machine Control: | PLC |
| Certificate: | ISO9001 | Dimension(L×W×H)(mm): | 3600*1450*1650 |
| Highlight: | 2100rpm Pusher Centrifuges,2100rpm continuous centrifuge machine,Pusher Centrifuges ss304 |
||
Product Description
HR Model Customized Automatic Stainless Steel 304 Continuous Horizontal Sugar Separating Pusher Centrifugal Separator
HR pusher centrifuge is a type of filtering centrifuge characterized by continuous feeding and intermittent discharging. Composed of hydraulic system, pushing mechanism, base, enclosure, transmission mechanism, basket, etc., this product is able to realize continuous feeding, separation, washing, discharging and other processes at full speed.
Scope of Application
Solid particle size >0.08MM
Concentration of 40%-80% (mass percentage)
Material viscosity <10-1PA.S
Technical Parameters
| Items | Model |
| HR500-N | |
| Basket Diameter (mm) | 430/500 |
| Filter area length(mm) | 360 |
| Speed (r/min) | 1200-2100 |
| Separation Factor | 403-1235 |
| Pushing Stroke (mm) | 50 |
| Pushing times(N/min) | 50-70 |
| Power of Driving Motor(KW) | 30-55 |
| Motor Power of Oil pump(KW) | 22 |
| Weight(Kg) | 3600 |
| Dimension(L×W×H)(mm) | 3600*1450*1650 |
Pusher centrifuge can be divided into horizontal pusher single-stage, two-stage or three-stage that is operating continuously. They can perform feeding, filtration, washing and discharging in sequence at their full-speed running. They have the advantages of continuous operation, stable performance, large capacity, ideal washing effect, low moisture content of cake and less solid content loss.
They are suitable for separating the suspension with solid particle size of more than 00.8mm, with the concentration rate of over 40 %. Suitable for industries such as chemical engineering, chemical fertilizers, alkali and salt making, particularly for the solid-liquid separation of sodium Chloride. ammonium chloride, ammonium bicarbonate, sodium sulfate, urea and so on.
Working Principle
Driven by the driving motor, the transmission device operates at full speed to bring the materials into the inner basket through the feeding pipe. Under the action of centrifugal force, the materials are evenly distributed onto the screen wall of the inner basket, where the liquid phase flows into the liquid discharge pipe through the screen and pores on the basket wall, while the solid phase is retained on the screen to form a cake layer.
The inner basket and outer basket revolve at the same speed. Driven by the piston, the inner basket moves in the axial direction repeatedly and reciprocally to make the pushing tray to push the materials from the inner basket to the outer basket for further separation, where annular cake layers are formed. Continuously pushed by the outer end face of the inner basket, the materials are discharged out of the outer basket and then be conveyed out of the equipment through the material scrapping slot.
Main Features
High separation factor, multi-stage dehydration and washing of materials, with better washing effect and lower moisture content.
Continuous working, large handling capacity, high efficiency, and stable operation.
Low solid content in mother liquid, which can be discharged together with washing liquid or discharged separately.
Low and stable energy consumption.
