Dual Phase Steel 2205 Pusher Centrifuges 320mm For Fertilizer Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | HR400-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD40000-85000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 90 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Pusher Discharge | Operate: | Automatic Continuous Centrifuge |
| MOC: | Stainless Steel | Pushing Stroke (mm): | 40-50 |
| Certificate: | ISO9001 | Filter Area Length(mm): | 320-600 |
| Highlight: | Steel 2205 Pusher Centrifuges,Steel 2205 automatic centrifuge,Pusher Centrifuges 320mm |
||
Product Description

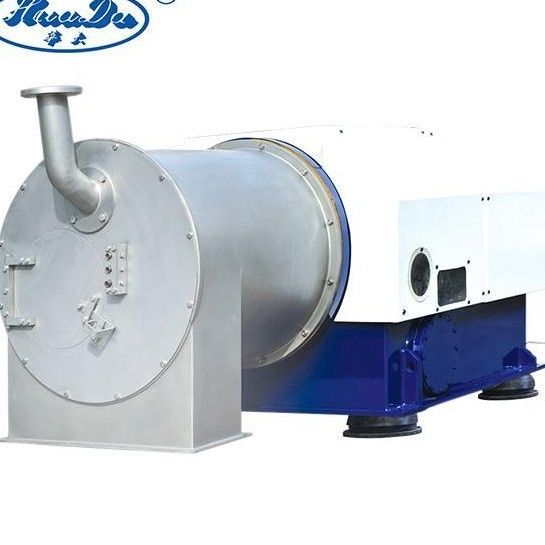

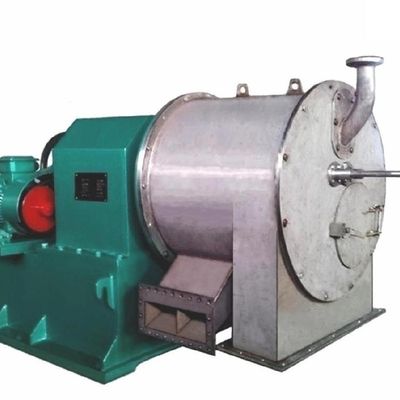

HR Continuous Filtration Anti-Corrosion Dual Phase Steel 2205 Pusher Centrifuge For Fertilizer Separation
Product information
HR series Two-stage piston puster centrifuge has advantages as follows:
automatic continuous operation ,continuous discharge ,high production capacity ,for grain crushing small ,it can wash the filter cake and other traditional advantages ,as well as high solid recovery ,low-residue moisture content compact structure ,no peak load ,dry fast ,small vibration and so on.
Moreover ,the material and components of the machine which contact with the materials are made of stainless steel ,leading good corrosion resistance.
Technical Parameters
| Items | Model | |||
| HR400-N | HR500-N | HR630-N | HR800-N | |
| Basket Diameter (mm) | 337/400 | 430/500 | 560/630 | 720/800 |
| Filter area length(mm) | 320 | 360 | 480 | 600 |
| Speed (r/min) | 1500-2400 | 1200-2100 | 1000-1800 | 800-1600 |
| Separation Factor | 504-1290 | 403-1235 | 353-1143 | 286-1146 |
| Pushing Stroke (mm) | 40 | 50 | 50 | 50 |
| Pushing times(N/min) | 30-80 | 50-70 | 30-80 | 30-80 |
| Power of Driving Motor(KW) | 7.5-15 | 30-55 | 45-75 | 55-90 |
| Motor Power of Oil pump(KW) | 5.5 | 22 | 30 | 45 |
| Weight(Kg) | 2400 | 3600 | 3900 | 6100 |
| Dimension(L×W×H)(mm) | 2600*1130*1250 | 3600*1450*1650 | 3130*1430*1360 | 3650*1890*1610 |
Anti-corrosion
The materials to be separated are normally corrosive. So for safety, the parts in contact with these corrosive materials must be anti-corrosive.
Material of constructions: 304, 321, 316L, 904L, TA, 2205, 2507etc.
When there is determined application experience or corrosion data, carry out coupon test and laboratory verification to ensure selected material meet anti-corrosion requirements.
Surface anti-corrosion treatment: PE lined, rubber lined and halar lined and F40, F46, PFA etc.
Anti-corrosion requirements of sealing elements can not be neglected; material of sealing elements shall ensure prevention against corrosion from acids, alkali and solvents.
The customer shall forward the physical and chemical properties of the material and washing liquid (chemical properties and separation temperature etc.) to the manufacturer so that it can make recommendations for centrifuge materials based on characteristics of the separation medium, and that the suitable seal ring, seal washer and filter cloth can be provided, thus ensuring anti-corrosion requirements on the centrifuge.
