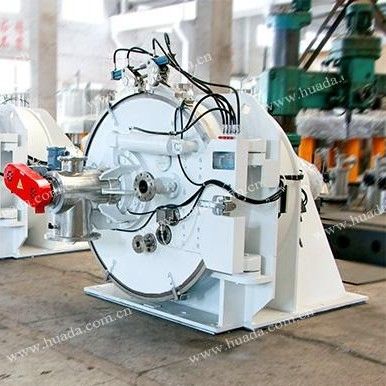

10000kg 1000mm 37kw Horizontal Peeler Centrifuge Sulphuric Ammonia Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB 19815-2000, GBT19001-2016/ISO9001:2015 |
| Model Number: | GK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-100000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 120 sets per month |
|
Detail Information |
|||
| Basket Speed (r/min): | 800-2400 | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Scraper Discharge | Power Of Driving Motor (kW): | 22-132 |
| Machine Control: | PLC Control | Filtering Area: | 0.61-5.65 |
| Centrifuge Name: | Peeler Centrifuge | Basket Diameter (mm): | 600-1800 |
| Basket Volume (L): | 45-1100 | Separation Factor: | 645-1935 |
| Highlight: | 37kw horizontal peeler centrifuge,10000kg industrial basket centrifuge,1000mm horizontal peeler centrifuge |
||
Product Description
GK 10000kg 1000mm 37kw High Purity Sulphuric Ammonia Separation Peeler Separating Plant
This type has high performance in separating suspensions with the cake density of 0.8~2.5, particle size of 0.05mm~1mm and solid concentration of 15%~80%.
It has been widely applied in the chemical, food, pharmaceutical, light industry and other industries for separating such materials as sodium bicarbonate, caustic soda, starch, boric acid, ammonium sulfide, sulfuric acid, sodium sulfate, ferrous sulfate, calcium phosphate, polyvinyl chloride, sodium chloride, and potassium chloride.
Technical Parameters
| Items | Model | |||||||
| GK600 | GK800 | GK1000 | GK1250 | GK1350 | GK1600 | GK1800 | ||
| Basket Diameter (mm) | 600 | 800 | 1000 | 1250 | 1350 | 1600 | 1800 | |
| Basket Length (mm) | 325 | 450 | 500 | 600 | 680 | 800 | 1000 | |
| Filtering Area | 0.61 | 1.13 | 1.57 | 2.45 | 2.88 | 4 | 5.65 | |
| Basket Volume (L) | 45 | 100 | 165 | 355 | 465 | 700 | 1100 | |
| Max. Loading Weight (kg) | 60 | 135 | 220 | 460 | 600 | 930 | 1500 | |
| Basket Speed (r/min) | 2400 | 1550 | 1400 | 1200 | 1200 | 950 | 800 | |
| Separation Factor | 1935 | 1076 | 1098 | 1008 | 1088 | 808 | 645 | |
| Power of Driving Motor (kW) | 22 | 30 | 37 | 55 | 55 | 90 | 132 | |
| Weight (kg) | Chute | 3500 | 6000 | 8000 | 14000 | |||
| Chute+Steel Platform | 3500 | 6000 | 10000 | 13500 | 21000 | |||
| Floating Platform | 5000 | 6000 | 9000 | 21000 | 33000 | |||
| Spiral discharge | 8500 | 15000 | 23000 | |||||
Product Configuration
• Control mode: PLC control, with touch panel and human-machine interface and supporting electric-hydraulic actuator to realize automatic remote control.
• Multiple safety protections: speed detection, overvibration protection, cover opening protection, overload protection, overtemperature protection, peeler action protection, nitrogen protection, electromagnetic interlocking, etc.
Structural Advantages
- Dovetail slot design is adopted for door and base fitting flange to ensure reliable sealing.
- Full-hydraulic locking door and dual-locking protection are designed to ensure structural reliability and easy operation.
- Enclosed and explosion-proof design is employed for the whole structure to meet the GMP standards and the requirements for the application in flammable and explosive places of the pharmaceutical industry.
- Cake layer controller is configured to effectively control the thickness material layers, prevent overload operation, and avoid overflowing of materials.
- Hydraulic drive is adopted to ensure stable discharge.
- Detachable were-resistant hard-alloy blades are configured to expand the service life.
- Spiral discharge is adopted to ensure high collection rate of cakes and effectively prevent the blockage of materials.
- Equipment is supported by front and rear rolling bearing, with high rigidity and small revolving resistance.
- Peeler support is welded and polished as a whole, with high structural strength and high rigidity to ensure smooth scrapping.
- Maximum service life of 30 years.
- Large bearing capacity and good vibration attenuation effect.
- Anti-slip base plate, without fixing the equipment with bolts.
- Integrated design of floating platform and vibration attenuation system.
