HR Model Horizontal Dual Phase 800rpm Chemical Centrifuge Steel 2205
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | HR800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Basket Diameter (mm): | 720/800 |
|---|---|---|---|
| Discharge: | Pusher Discharge | Operate: | Automatic Continuous Centrifuge |
| Speed (r/min): | 800-1600 | Machine Control: | PLC |
| Certificate: | ISO9001 | Weight(Kg): | 6100 |
| High Light: | Chemical Centrifuge Steel 2205,pusher centrifuge machine Steel 2205,800rpm Chemical Centrifuge |
||
Product Description

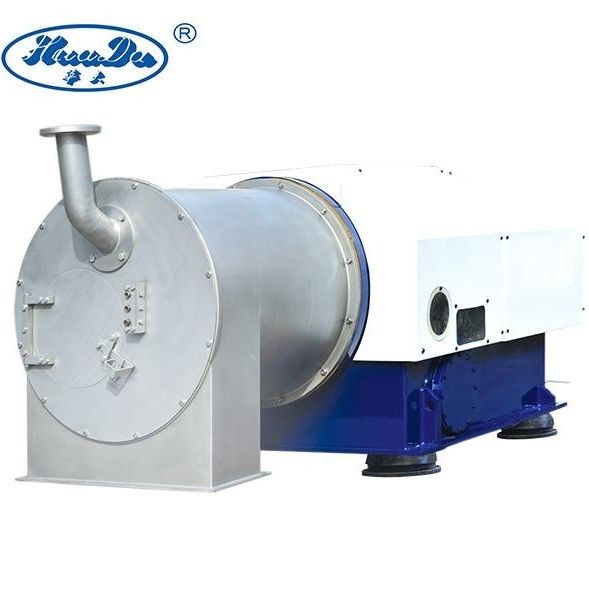

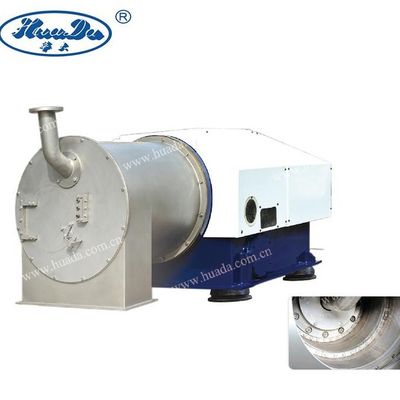

HR Model Horizontal Dual Phase Steel 2205 Double-Stage Explosion-Proof Chemical Stainless Steel Pusher Centrifuges
HR pusher centrifuge is a type of filtering centrifuge characterized by continuous feeding and intermittent discharging. Composed of hydraulic system, pushing mechanism, base, enclosure, transmission mechanism, basket, etc., this product is able to realize continuous feeding, separation, washing, discharging and other processes at full speed.
Scope of Application
Solid particle size >0.08MM
Concentration of 40%-80% (mass percentage)
Material viscosity <10-1PA.S
Technical Parameters
| Items | Model |
| HR800-N | |
| Basket Diameter (mm) | 720/800 |
| Filter area length(mm) | 600 |
| Speed (r/min) | 800-1600 |
| Separation Factor | 286-1146 |
| Pushing Stroke (mm) | 50 |
| Pushing times(N/min) | 30-80 |
| Power of Driving Motor(KW) | 55-90 |
| Motor Power of Oil pump(KW) | 45 |
| Weight(Kg) | 6100 |
| Dimension(L×W×H)(mm) | 3650*1890*1610 |
Industrial Application
This product is applicable to the filtration of sodium chloride, ammonium chloride, ammonium bicarbonate, urea, polyethylene, polypropyl ethylene, ammonium nitrate, oxalic acid, sodium sulfate, caffeine, etc. in the chemical, fertilizer, alkali production, salt production and other industries.
Explosion-proof
If the centrifuge works in the environment, where there are some explosive substances, the centrifuge should be explosion-proof. If the centrifuge becomes really explosion-proof, it should take a variety of measures in mechanical, electrical control and the accessories selection.
Electric control: explosion-proof isolator, non-touch dynamic braking system, static grounding and explosion-proof automatic control.
Mechanical system: explosion-proof motor, explosion-proof light, anti-collision and anti-static driving belt.
Explosion-proof accessories: nitrogen protection system, on-site explosion-proof control button.
Therefore, for those environments required explosion-proof, users can specify the filtration medium, requirement and degree of explosion-proof when they take orders, in order to buy the right equipment to meet the requirements of explosion-proof.
Refer to Application Technology of Centrifuge in Explosion Proof Site P103.
