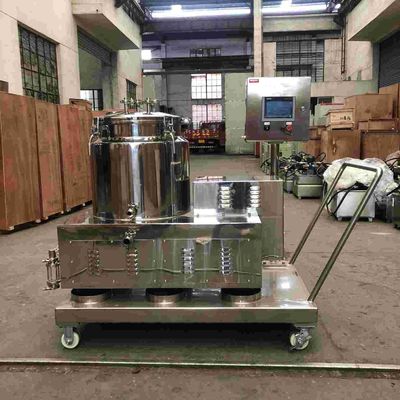

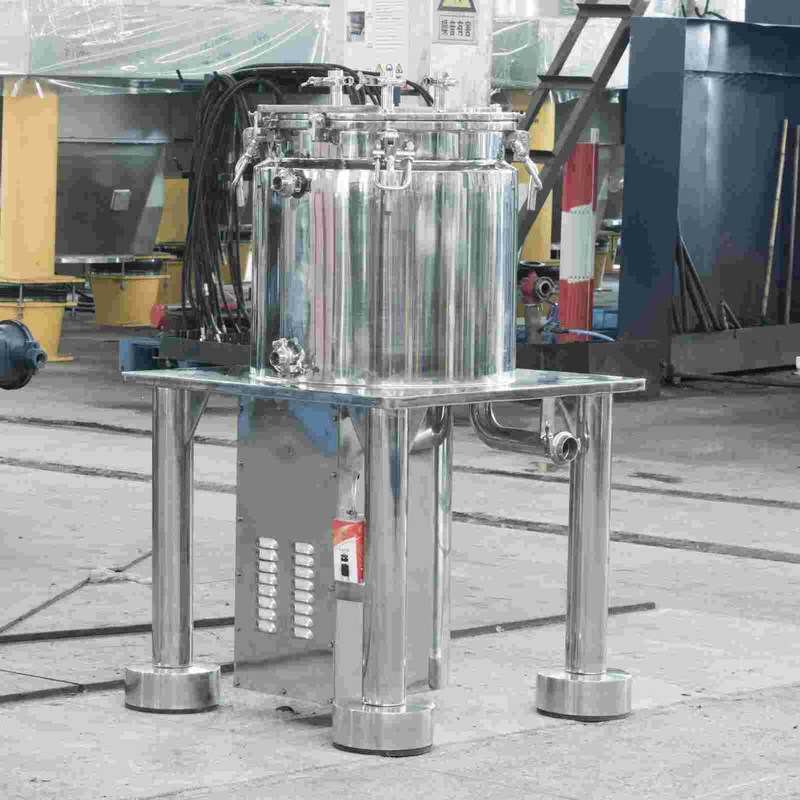

Stainless Steel 304 Dry Biomass Ethanol Extraction Centrifuge 1300rpm
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PSB.P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000-20000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Operate: | Manual Batch Operating |
| Condition: | New | Warranty: | 1 Year |
| High Light: | Dry Biomass Ethanol Extraction Centrifuge,electric centrifuge machine 1300rpm,Ethanol Extraction Centrifuge 1300rpm |
||
Product Description
PSB.P Series High Quality Stainless Steel 304 Dry Biomass Ethanol Extraction Hemp Oil Cbd Centrifuge Machine
Brief introduction
After crushing plant stems and leaves, the residues were completely dehydrated by soaking in water or organic solvents to obtain the maximum yield. Usually, the process of extraction and solid-liquid separation is accomplished by soaking extraction in extraction tank, pressing or centrifugal dehydration after preliminary slag discharging.

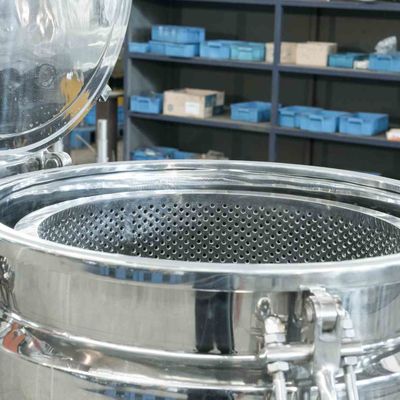

The machine adopts the basket design of lower hub and flat basket bottom, and cooperates with the automatic programming of centrifuge forward and backward washing, grading speed-up and drying, completing a cycle of automatic operation process such as immersion, extraction, dehydration and drying.
Working principle
Before the centrifuge works, refrigerant or hot water is introduced into the machine jacket.
1.Fill the material in a filter bag, seal it with zipper, and place it in the centrifuge basket.
2. Close the top cover and add the soaking solvent from the feeding pipe.
3. Start immersion extraction mode:
The centrifuge rotates alternately in both positive and negative directions at low speed to extract the active ingredients from plants.
4. After soaking and washing, the material was fully extracted by phase inversion.
5. Stop the machine, open the outlet valve and discharge all the liquid.
6. Enter dehydration and drying mode:
The centrifuge rotates and dehydrates in stages according to the percentage of the highest rotational speed, and then speeds up and dehydrates until it finally speeds up to 100% and dries.
7. Dehydration is completed. Stop the machine and take out the filter bag. A batch cycle ends.
Technical Parameters
| Items | Models | |||||
| PSB300P | PBZ320P | PBZ400P | PSB420P | PSB550P | PSB600P | |
| Effective Volume (L) | 18 | 50 | 100 | 100 | 200 | 200 |
| Basket Volume (L) | 10 | 30 | 50 | 62 | 120 | 140 |
| Basket Diameter (mm) | 300 | 320 | 400 | 420 | 550 | 600 |
| Basket Height (mm) | 165 | 380 | 450 | 450 | 550 | 500 |
| Shell Diameter (mm) | 364 | 400 | 500 | 500 | 650 | 700 |
| Shell Height (mm) | 215 | 450 | 545 | 555 | 700 | 620 |
| Max. Loading Weight (kg) | 7 | 7.5 | 15 | 15 | 30 | 30 |
| Basket Speed (r/min) | 1970 | 1800 | 1500 | 1500 | 1300 | 1500 |
| Separation Factor | 650 | 580 | 500 | 529 | 520 | 755 |
| Motor Power | 1.5 | 2.2 | 4 | 4 | 7.5 | 5.5 |
| Transmission Mode | Belt drive | Direct motor drive | Direct motor drive | Belt drive | Belt drive | Belt drive |
| Dimension (L×W×H) (mm) | 950*600*1100 | 700*700*1200 | 800*800*1350 | 1250*800*1000 | 1200*900*1500 | 1670*1100*1250 |
SERVICE WARRANTY
Huada has Long tradition customer service, we always try our best.
An effective service management organization ensures professional and flexible management of any affairs.
Huada has a long tradition of customer service and we always do our best to provide assistance.
An effective service management organization can ensure professional and flexible handling of product application business.
Presale consulting - sales staff and sales engineers provide relevant technical advice specific to demands proposed by customers. Technical experts in application can provide technical support where necessary.
Type selection - centrifuge type selection is crucial and decides separation process feasibility, safety, product quality, yield, operation cost, etc. also, it a crucial impact on Infrastructure projects, equipment investment and environmental protection, etc.
For particular separation process requirements, we must totally understand physical and chemical properties of the material. Under the premise of meeting anti-corrosion and anti-explosion requirements (i.e. safety requirements). we can realize filtration and separation requirements and at the same time fully consider the automation, running cost and other factors . Our experts in application technology can put forward the corresponding proposal for specific operating conditions and effectively communicate with your process/ equipment, personnel to ensure reasonable, advanced and economical type selection
Laboratory test - Making laboratory analysis on separation characteristics of the material to provide the basis for type.
Small batch test - After preliminary type selection, simulation separation test can be carried out for small batch of verification machines to obtain relevant separation data and to provide the basis for separation process section design. This can be made in test workshop of Huada or can be made at place designated by the customer with vehicle-mounted test unit provided.
