Industrial 1800rpm Ethanol Extraction Centrifuge CBD Oil Hemp Decanter Centrifuge
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | PSB300P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD15000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Place Of Origin: | China | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Bag Top Discharge | Type: | Separating Plant |
| Basket Speed R/min: | 1800 | Operate: | Manual Batch Operating |
| Basket Diameter: | 300mm | Basket Height: | 380mm |
| High Light: | 1800rpm Ethanol Extraction Centrifuge,1800rpm industrial decanter centrifuge,300mm Ethanol Extraction Centrifuge |
||
Product Description

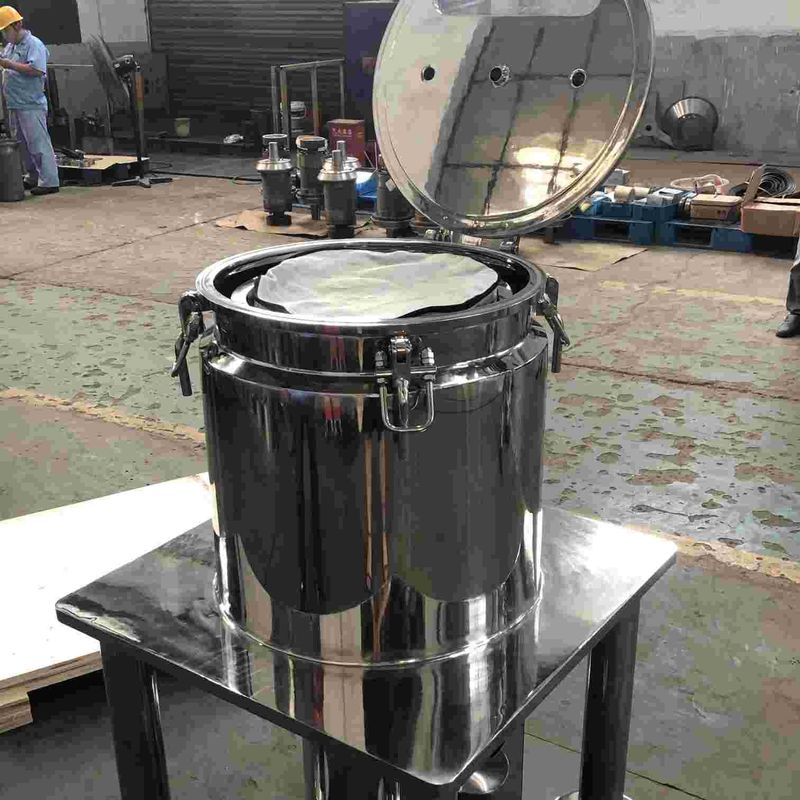

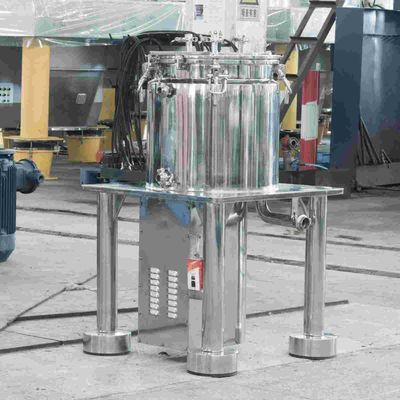

PSB300P Series Ethanol Extraction Industrial CBD Oil Hemp Decanter Centrifuge
This product is a special low-temperature extraction centrifuge, which is mainly used for steep extraction and solid-liquid separation of herbs, plant roots, etc. Equipped with an enclosed filter bag, it can separate materials with the solid particle sizes ≥0.10MM and has been widely applied in the fields of food, pharmaceutical, chemical, and others.
Main structural features
1. Basket
1.1 Flat-bottomed structure, which can be hold more materials;
1.2 Downward extension hub, compact structure, The distance between the basket bottom and the base plate is the smallest. The soaking efficiency of extractant is the highest.1.3 The cylinder is smooth, the weld is smooth transition, no dead angle, and meets the requirements of GMP.
2. Base
2.1 Four-point support, flat structure, concise shape
2.2 Single and double jacket case can pass through low temperature cooling medium and heat preservation2.3 Rubber shock absorber, which has good shock absorption effect, does not require dedicated foundation.
3. Transmission
3.1 Direct connection of motor or electrostatic belt drive;
3.2 The spindle is made of steel at low temperature.
The impact energy is not less than 45J below - 50 C.
4. Upper cover
4.1 Fast-opening locking cover, switch cover plate is easy and convenient;
4.2 Large window configuration, large field of vision, which can be observed clearly.
4.3 Balance Cylinder Makes Opening Easy
Technical Parameters
| Items | Models |
| PSB300P | |
| Effective Volume (L) | 18 |
| Basket Volume (L) | 10 |
| Basket Diameter (mm) | 300 |
| Basket Height (mm) | 165 |
| Shell Diameter (mm) | 364 |
| Shell Height (mm) | 215 |
| Max. Loading Weight (kg) | 7 |
| Basket Speed (r/min) | 1970 |
| Separation Factor | 650 |
| Motor Power | 1.5 |
| Transmission Mode | Belt drive |
| Dimension (L×W×H) (mm) | 950*600*1100 |
SERVICE WARRANTY
Equipment layout and Installation guide - providing centrifuge and system layout guided, installation and operation guide, in order to meet safety, use and maintenance requirement.
Debugging – During commissioning, providing site guidance of the service engineers and determining the corresponding operation parameters, to meet the separation requirements.
Process optimization - optimizing separation engineering parameters and procedure in the process of debugging, to improve separation efficiency and yield and output and to reduce energy consumption.
Software upgrading - For our sold centrifuges, we can make individual program improvement and provide program upgrading on the request of customers during their subsequent operation.
Operation and maintenance training - Providing detailed centrifuge debugging and use guide, making safety, operation and maintenance training for operation and maintenance personnel during installation and debugging; also, customers can send relevant personnel to Huada for short-term training.
Repair - Providing door-to-door on-site repair and return to factory for repair.
Safety confirmation - During the term of the service life of the centrifuge, providing centrifuge safety testing and validation in the annual overhaul.
We just obtain the data and information connected with the separation process within the scope of your permit, and we ensure your data safety.
