Halar Lined Thickening Centrifuge T19001 For Ammonium Thiosulphate
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LLWZ800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Screen Worm Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| Rotating Speed Control: | Frequency Converter | Type: | Separating Plant |
| Core Components: | Motor | Warranty: | 1 Year |
| Highlight: | Halar Lined Thickening Centrifuge,T19001 solid liquid centrifuge,Thickening Centrifuge T19001 |
||
Product Description

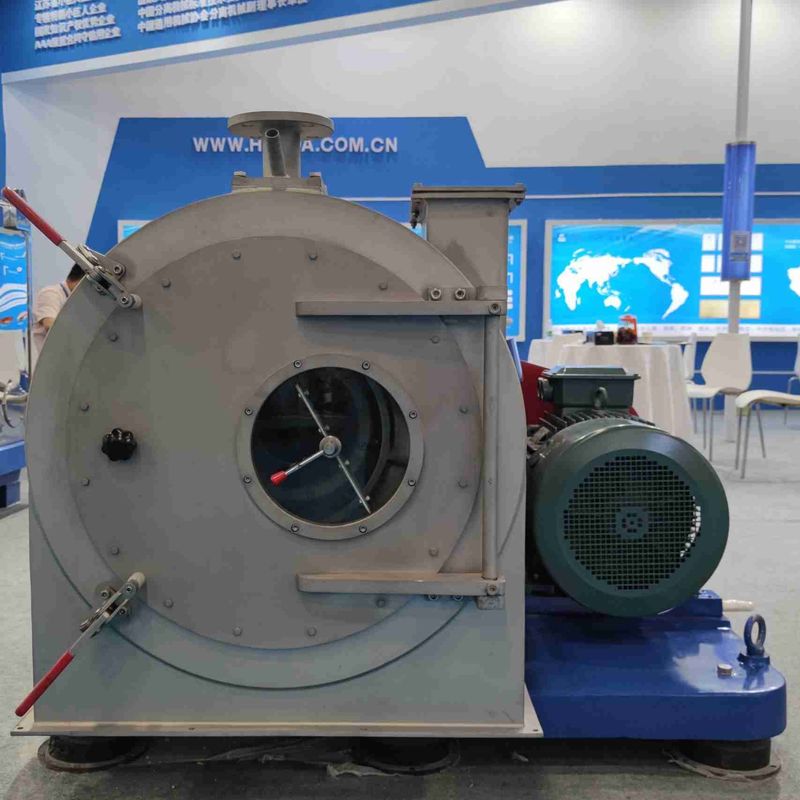

LLWZ800 Thickening Screen Worm Solid Liquid Separation Halar Lined Centrifugal Machines Used For Ammonium Thiosulphate
Description
Horizontal screen worm centrifuge is an advanced solid-liquid separation equipment featuring low energy consumption, high performance, high automation, high production efficiency, good separation effect, and continuous working capability.
After the suspension enters the centrifuge, the liquid phase is discharged out through the screen and the holes on the Bowl wall under the centrifugal force generated by the high-speed revolution of the Bowl, while the solid phase is retained on the screen to form a cake layer and then pushed to the discharge port through the spiral under the action of the relative differential. In this way, automatic and continuous separation of the solid and liquid phases is realized.
Successful Applications
Horizontal screen worm centrifuge has been widely applied in the chemical, food, salt, mining, pharmaceutical and other industries. Based on its separation principle, structural characteristics and relatively specific separation objects, this product is mainly applicable to the separation of materials with relatively large particle sizes and without strict requirements for the integrity of the particles, such as various crystals, fibers, crop shells, and plastic particles.
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLWZ800 | 800 | 1500 | 1000 | 8-20 | 75 | 5000 | 3000*2200*2000 |
Technological innovation
Focus – Huada focuses on research and development, manufacture and application of filtration and separation technology.
Over 20 years , Huada Ltd. has been considering technological innovations as one of the corporate strategies. We have recruited a group of talented engineers and technicians professional in filtration and separation technology to research and develop the centrifuges with better separation efficiency, lower energy consumption, better convenient operation, higher reliability and closer focus on the separating materials.
In addition, working environment, automation and individualization are always taken into account throughout the course of design and manufacturing we still keep continual summarizing our experience, and continually change and improve our design in order to optimize our products.
Professional - Establishing up professional teams on technology research and development , technology application , process design , inspection and tesing
Filtration and separation technique is a specialized technology, it takes quite long time from theory research, technical design, trial manufacturing, testing, approval to practical application. To a large extent, Huada benefits from “being advanced”. i.e. being more advanced than users and competitors in the same Industry.
When users have higher requirements, we have already done some research or have better solutions. We deeply know that it is the most important matter to guarantee the safety of centrifuge, it is the base for trust and cooperation. By learning the advanced technology abroad Huada has been developing a number of patented new technologies. Currently, Huada has owned more than 100 patents. These technologies have been soon applied. We have formed a healthy cycle from R&D to marketing and innovation.
Separation technology is one of the most important steps in the process of industrial production. It is a vital step to separate solid matters from the liquid in numerous industrial productions. With the rapid development in chemistry and pharmacy, separation technology is improving as well and completely different from the simple and poor one in the past.
It highly demands safety performance, the performance of separation, working environment, automation and reliability of the centrifuge, for instance, when it works in the environment with explosive-proof, tiny material separation, separation of highly adhesive materials, high purity demands, full automatic control, unmanned attention and remote monitoring. In response to the market and customers’ needs, our technicians will customize the design and separation techniques for customers. Meanwhile, when it comes to design and manufacturing, as we are professional we can achieve your needs.
Leading - Becoming industrial benchmark through continuous research and development and accumulation of application technologies
