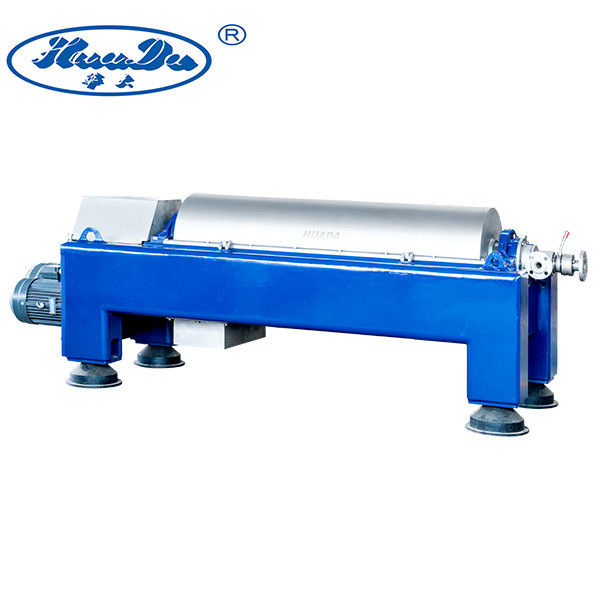

LWX Horizontal Decanter Centrifuge (Centripetal Pump Type)
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | After-sales Service Provided |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LWX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD50000-200000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK Or SKF |
| Explosion-proof System: | Optional | ||
Product Description
Description
Materials enter the equipment through the feeding pipe. Under the action of centrifugal force, the solid phases will deposit to form a sediment layer on the Bowl wall, and the liquid phases will form a liquid ring, successively forming a solid layer and liquid layer inward from the Bowl wall. The spiral works continuously to push the solid matters on the Bowl wall to the conical end of the Bowl and then discharge them out of the equipment through the slag d ischarging port. And the liquid phases are discharged out through the centripetal pump at the big end of the Bowl.

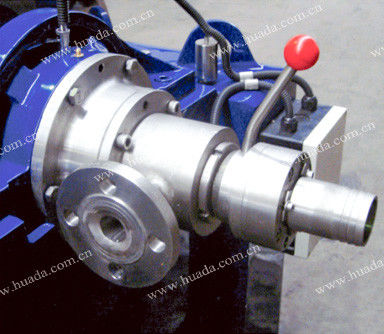

As the liquid after separation is discharged through the centripetal pump with certain pressure, the suspension can be conveyed horizontally for a certain distance, thus to replace a relay pump and save energy. Meanwhile, the possibility of a secondary contact between the tiny droplets and solid matters after the discharge of suspension can be completely avoided as they are at different cavities when discharged, so high-degree cleanliness can be ensured, making the product applicable to pharmaceutical and food production, and other fields.
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWX355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3450*1010*1030 |
| LWX420*1680 | 420 | 4 | 3600 | 3050 | 30-37 | 4000 | 3500*1450*1300 |
| LWX530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 5500 | 4100*1600*1450 |
| LWX720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
