Product Description

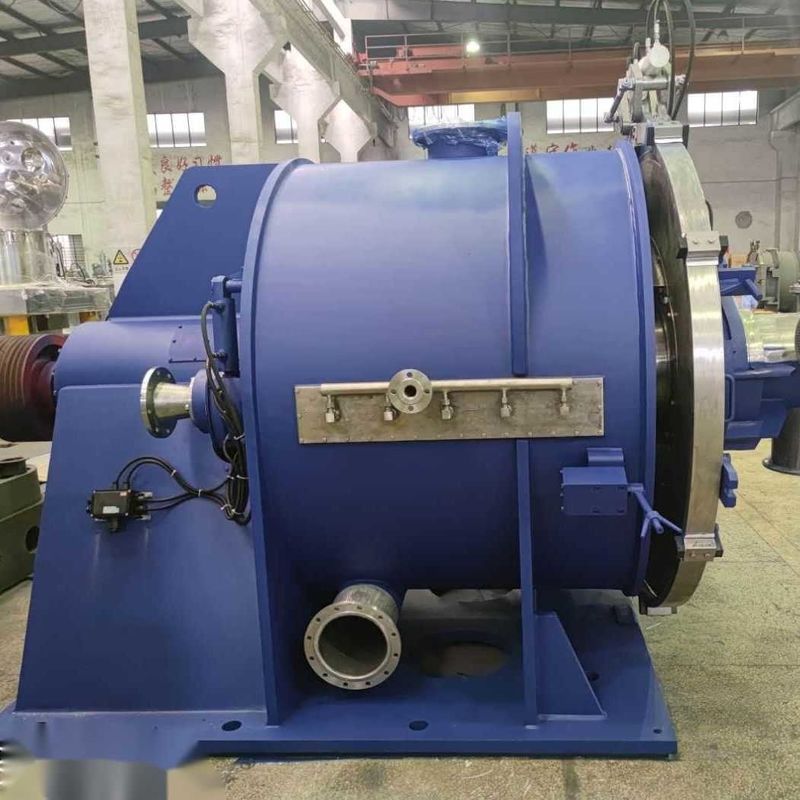

GKH Agricultural Separation Horizontal Food Centrifuge With Siphon Device

Peeler centrifuge is continuously rotating and intermittently operation centrifuge. It can be either automatic control or manual control.

The whole process of operation including materials feeding, separating, cleaning, dewatering, discharging and filter cloth recycling can be achieved at full speed. Single cycle of processing materials is shortly but with large quantity. The solids cake can be well dried and cleaned.

Peeler centrifuge is widely used in such industries as chemical, food, light industry, pharmaceutical, etc. It is suitable for separating suspension containing large-size or medium-size or small-size particles, such as sulphuric ammonia, carbonic ammonia, PVC, etc.

Siphon peeler centrifuge is designed on the common peeler centrifuge basics. By the siphon to increase the force pushes the clarified liquid passing through the filtration medium into the liquid chamber. The liquid is drained out of the basket through the sucker. Adjusting the position of sucker could change the liquid level in the suction chamber to adjust the force of filtration, speed, output, dryness of the solid cake and effectiveness of cleaning.

Set a recoil fitting. Pour washing liquid into the suction chamber and the overflow chamber if it needs. Washing liquid flowing into the basket will resume the filtering performance of the filtration medium when it passes through it.

Siphon peeler centrifuges are suitable for massively processing of the highly sticky slurry with free moisture solids cake. It can be applicable to separating amylum, sodium bicarbonate and calcium phosphate.

Product Dimension

Technical Parameters

The siphon-type peeler centrifuge is applicable to the occasions involving large-scale production and requiring low cake moisture and sufficient washing, and therefore is commonly used for the separation of starch, sodium bicarbonate, potassium chloride, calcium phosphate and other materials. Currently, it has been widely applied in such industries as pharmaceutical production, food production, bioengineering and chemical engineering.

Advantages of Siphon Peeler Centrifuge

• Horizontal structure and floating platform damping system adopted to ensure stable operation and suppress noise.

• Back-flushing Device

• Residual cake and filtering medium soaked and flushed reversely to realize regeneration of filter cloth.

• Skimming Device

•

• Applicable to the separation of materials containing protein, colloidal substances, etc.

• Shorter dehydration duration designed to realize high production efficiency and low cake moisture.

• Hydraulic operation and automatic control employed to ensure stable running of equipment

•

• Three-position control designed to complete separation, dehydration, washing and other processes, and ensure accurate angles, with good reproducibility

• Large corner design for the door and automatic hydraulic locking system configured to ensure operation safety, reduce labor intensity and provide convenience for overhaul, maintenance and washing.
