800rpm Horizontal Centrifuge With Siphon Device For Potato Starch

Product Description

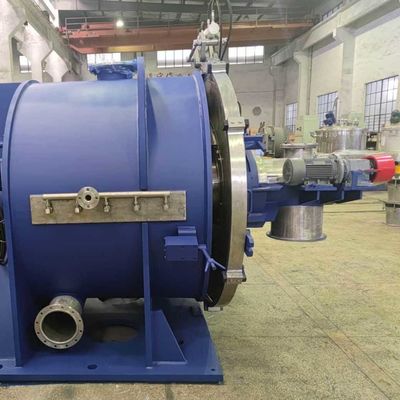

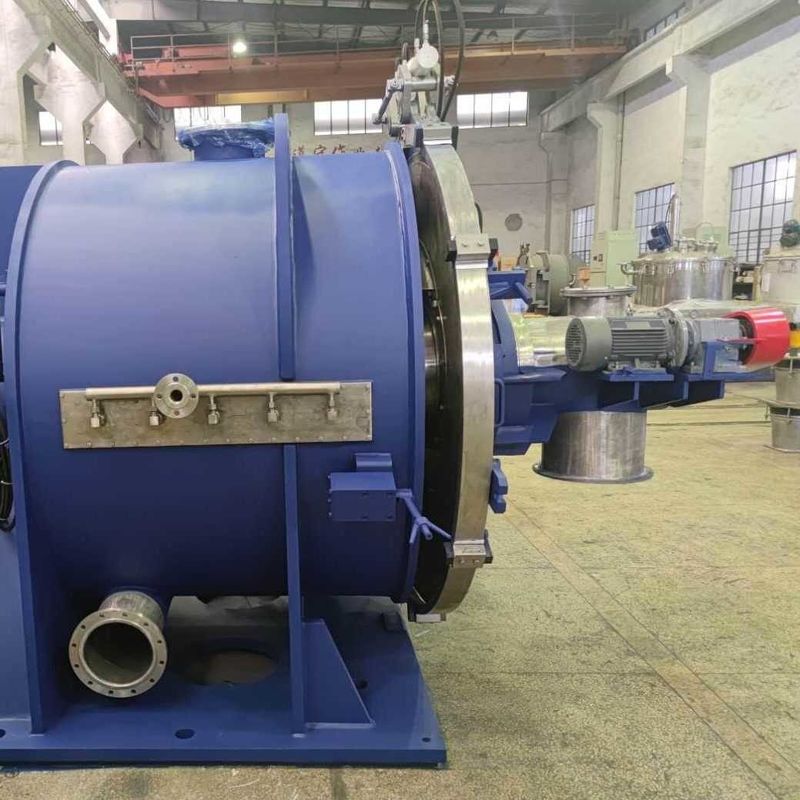

GKH Starch Powder Separation Horizontal Centrifuge With Siphon Device For Potato Starch

GKH siphon centrifuge is a new type of product that is developed on the basis of the ordinary peeler centrifuge. Based on the siphon principle, this product discharges the filtrate out via a siphoning device or skimming device. The filtering impetus can be changed by adjusting the liquid level at the suction inlet of the siphon pipe (skimming pipe) to further regulate the filtering rate, handling capacity, cake moisture and washing effect. A back-flushing device is configured to realize regeneration of the filter cloth and improve the separation effect. With back-flush, scouring, siphoning and other functions by configuring special devices, the filter cloth can be regenerated completely.

The siphon-type peeler centrifuge is applicable to the occasions involving large-scale production and requiring low cake moisture and sufficient washing, and therefore is commonly used for the separation of starch, sodium bicarbonate, potassium chloride, calcium phosphate and other materials. Currently, it has been widely applied in such industries as pharmaceutical production, food production, bioengineering and chemical engineering.

Product Dimension

Technical Parameters

Advantages of peeler centrifuge

Feeding phase

As it can freely regulate the filtration rate, the filtration rate is reduced during feeding phase to prevent uniform distribution of the cake.

Filtration phase

Siphon pipe is lower level. With the column height Hu of additional liquid, the filtration rate is increased, and thus the processing capacity is increased by 50% within the same time.

Washing phase

Inlet of the siphon pipe is in higher level with less filtration pushing force being generated. The washing liquid flows slowly to extend the time of the washing liquid staying in the filter cake, thus reducing loss of the washing liquid and bringing about better effects of washing.

Dry spinning phase

The inlet of the siphon pipe is at the bottom with the maximum filtration pushing force, therefore moisture contained in the filter cake can be removed easily, and the moisture of the filter cake is reduced.

Back-washing function

After the scraper discharges the material, the siphon can inject washing liquid into the suction chamber from the outside, and then reversely force the liquid to flow into the basket for washing. Achieve good performance of washing the filter cloth with strong ability to regenerate.
