GMP High Sanitation 88L Pharma Centrifuge Machine Anti Corrosion Explosion Proof
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB 19815-2005， GBT19001-2016/ISO9001:2015 |
| Model Number: | GKF800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certificate1: | GMP Standard |
|---|---|---|---|
| Basket Length (mm): | 400 | Basket Diameter (mm): | 800 |
| Basket Volume (L): | 88 | Operation Type: | Automatic Bacth Operation |
| MOC: | SS304/316L | Filtering Area: | 1 |
| High Light: | pharma centrifuge machine anti corrosion,88L centrifuge in pharma,88L pharma centrifuge machine |
||
Product Description

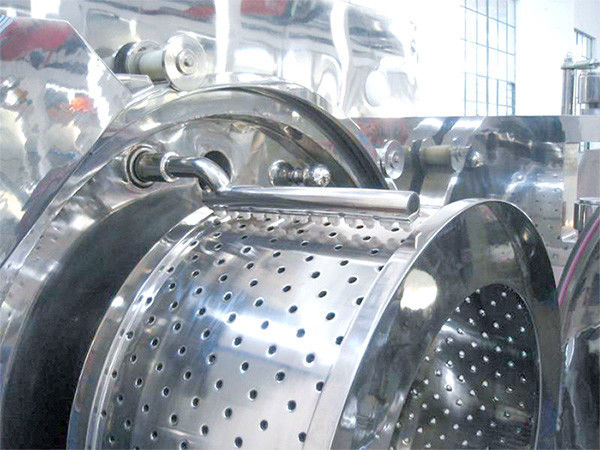

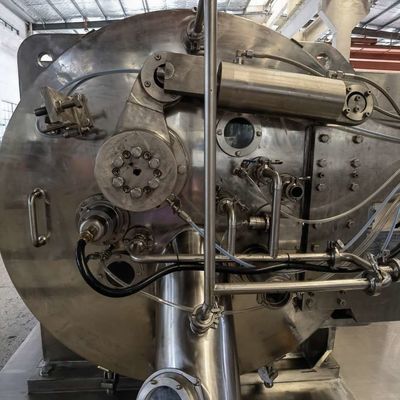

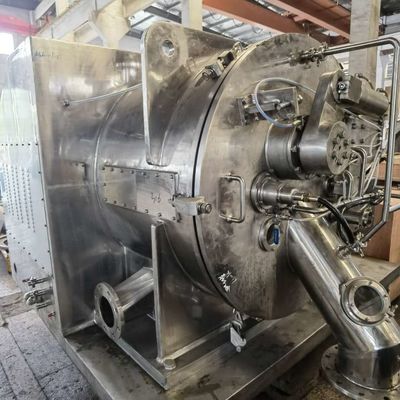

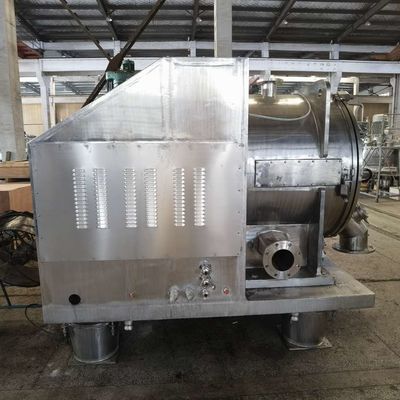

GKF GMP High Sanitation Pharma Anti-Corrosion Explosion-Proof Peeler Centrifuge Equipment
With special structural design and system configuration, GKF pharma peeler centrifuge can be used to obtain pharmaceutical products or intermediate products that meet the GMP (FDA, COS, TGA) standards with reasonable consumption, without generating new impurities and pollutants during the operation.
Technical Parameters
| Model | ||
| Items | GKF800 | |
| Basket Diameter (mm) | 800 | |
| Basket Length (mm) | 400 | |
| Filtering Area | 1 | |
| Basket Volume (L) | 88 | |
| Max. Loading Weight (kg) | 120 | |
| Basket Speed (r/min) | 1600 | |
| Separation Factor | 1154 | |
| Power of Driving Motor (kW) | 30 | |
| Dimension(L×W×H)(mm) | Machine | 2850*1600*1950 |
| Dimension(L×W×H)(mm) | Installation | 3600*2400*1950 |
| Weight(kg) |
5500 |
|
GKF centrifuge series are new types of products integrated with multiple patents.
Scope of application: particle diameter: 0.05mm~1mm
Solid content: 10%~50%
Cake density: 1~1.5
Characterized by automatic control, batch processing, continuous working, short circulating period, large handling capacity, low moisture and good washing effect, the product is applicable to the solid-liquid separation of toxic, hazardous, inflammable and explosive media of low viscosity and with high requirements for sanitation. It has been widely applied in the pharmaceutical production, food production and other fields.
Main Features
• Gas back-blowing device: assist the peeler to discharge materials and remove the residual cakes effectively.
• High-quality stainless steel or alloy is adopted for the part contacting materials, and surfaces are polished, meeting the requirements for corrosion protection and cleanliness
• Online cleaning system: Multiple spraying balls and directional nozzles are arranged on the inner surface, basket bottom, discharging bucket, door and other parts of the centrifuge to realize comprehensive flushing of the equipment online.
• Online SIP disinfection, CIP cleaning and soaking & cleaning are available to effectively avoid cross contamination of materials and meet the GMP standards and high requirements for sanitation.
