SS304 355L GMP Pharma Centrifuge Machine 1200rpm
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB 19815-2005， GBT19001-2016/ISO9001:2015 |
| Model Number: | GKF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 90 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certificate1: | GMP Standard |
|---|---|---|---|
| Certificate2: | Machinery Safty Certificate | Power Of Driving Motor (kW): | 55/75 |
| Basket Speed (r/min): | 1200 | Operation Type: | Automatic Bacth Operation |
| MOC: | SS304/316L | Weight(kg): | 16000 |
| High Light: | GMP pharma centrifuge machine,pharma centrifuge 1200rpm,pharma centrifuge machine 1200rpm |
||
Product Description

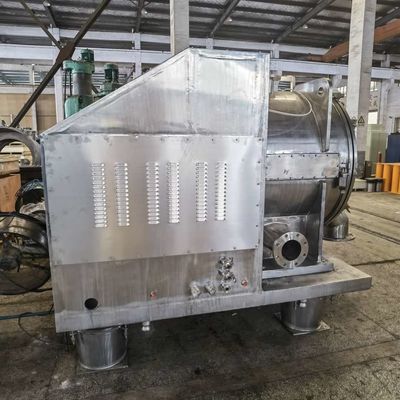

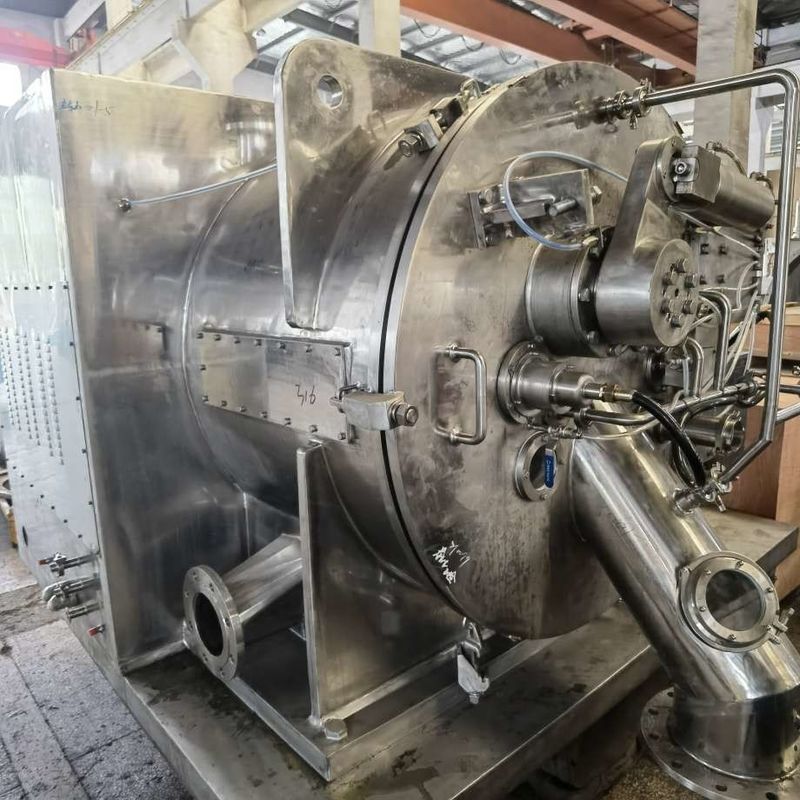

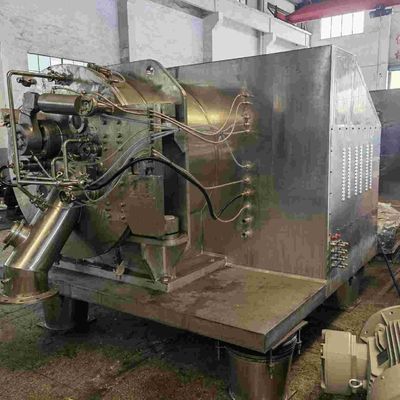

GKF GMP Standard Pharma Peeler Centrifugal Equipment Wall Through Type
With special structural design and system configuration, GKF pharma peeler centrifuge can be used to obtain pharmaceutical products or intermediate products that meet the GMP (FDA, COS, TGA) standards with reasonable consumption, without generating new impurities and pollutants during the operation.
Technical Parameters
| Model | ||
| Items | GKF1250 | |
| Basket Diameter (mm) | 1250 | |
| Basket Length (mm) | 600 | |
| Filtering Area | 2.36 | |
| Basket Volume (L) | 355 | |
| Max. Loading Weight (kg) | 450 | |
| Basket Speed (r/min) | 1200 | |
| Separation Factor | 1008 | |
| Power of Driving Motor (kW) | 55/75 | |
| Dimension(L×W×H)(mm) | Machine | 3950*2150*2600 |
| Dimension(L×W×H)(mm) | Installation | 5000*3300*2600 |
| Weight(kg) |
16000 |
|
GKF centrifuge series are new types of products integrated with multiple patents.
Scope of application: particle diameter: 0.05mm~1mm
Solid content: 10%~50%
Cake density: 1~1.5
Characterized by automatic control, batch processing, continuous working, short circulating period, large handling capacity, low moisture and good washing effect, the product is applicable to the solid-liquid separation of toxic, hazardous, inflammable and explosive media of low viscosity and with high requirements for sanitation. It has been widely applied in the pharmaceutical production, food production and other fields.
Main Features
- Fully-enclosed and clean structural design complies with cGMP requirements and meets requirements for aseptic production of medicine and food.
- Clean room installation design realize flexible connections and complete separates the dynamic systems such as the motor drive and hydraulic lubrication from production area such as the basket, case and feeding/discharging devices and the wall.
- PLC control for automatic operation is in accordance with the pre-set program. Touch screen operation, realizing human-machine dialogue, which is easy for operation and maintenance.
- Action elements like feeding, filtration, washing, dry spinning, discharging and residual cake removal is with automatic electric-hydraulic control.
- Big hinged cover design makes it easy to clean all parts in the basket and the operation zone. Quick-opening hydraulic locking device ensures easy and reliable operation.
- Inverter control realizes stepless speed regulation of the basket. Flexible process time set for feeding, washing, filtration, discharging and residual solid cake removal and purging.
- Liquid-damping vibration isolators without floating platform ensure stable operation of the centrifuge.
Operation process
Feeding
The material enters the rotating basket through the feeding pipe, and the cake layer controller controls n times of pulse feeding to fill the basket in limited manner. Usually, the material cake can reach 75-80% of the basket lip. Feeding is completed once the solid cake reaches the pre-set thickness.
Filtration Skimming-Filtration
The mother liquid penetrates through the filtration medium across the inner wall of the basket to complete the primary filtration, which begins as the material enters and ends as the liquid just immerses the inner surface of the solid cake. For the mother liquid containing colloid protein, the mother liquid containing the colloid protein will be removed by means of the skimming device in the course of filtration.
Washing
The solid cake is usually washed after the primary filtration. Add the washing liquid through the feeding pipe or washing pipe, and level of the washing liquid is monitored in the material level detector. Washing is completed once the pre-set washing load is achieved and the solid cake is immersed into the liquid.
Dry spinning
The basket accelerates to the high speed for drying the solid cake, and filtration is completed after the moisture content of the solid cake reaches the required value or the solid cake takes the pre-set drying duration.
Discharging
The solid cake is removed by the scraping device at high speed or that is decelerating, and the removed cake is discharged through the discharge mechanism. The solid phase can be discharged in two modes: discharging chute and scroll conveyor.
Regeneration of filter cloth
Residual solid cake can be found on the inner wall of the basket after the scraper discharges the material, the filtration basket can loosen the solid cake through the high-pressure gas on the back of the basket, and then remove the solid cake by means of the scraper device. In the siphon basket, the back washing liquid can be added into the basket from the high-level-mounted back washing tank through the suction chamber, and then reversely penetrates the residual solid cake so as to make the solid cake suspended and restore its permeability.
