Continuous Stainless Steel 316L GMP Peeler Discharge Centrifuge Machine 1200rpm
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB 19815-2005， GBT19001-2016/ISO9001:2015 |
| Model Number: | GKF1350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD170000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 90 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 90 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certificate1: | GMP Standard |
|---|---|---|---|
| Application: | Pharmaceutical Centrifuge | Discharge Type: | Peeler Diacharge |
| Basket Speed (r/min): | 1200 | Operation Type: | Automatic Bacth Operation |
| MOC: | SS304/316L | Explosion-proof: | Yes |
| High Light: | GMP Peeler discharge centrifuge machine,Stainless Steel 316L continuous centrifuge,discharge centrifuge machine 1200rpm |
||
Product Description

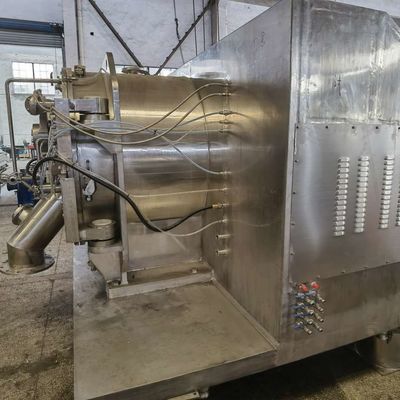

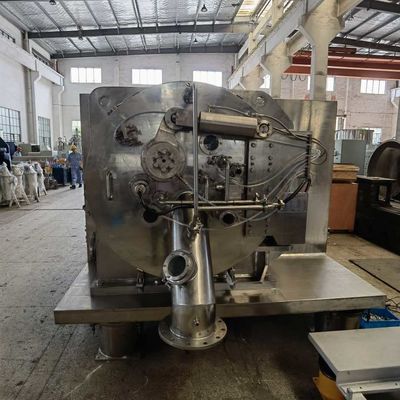

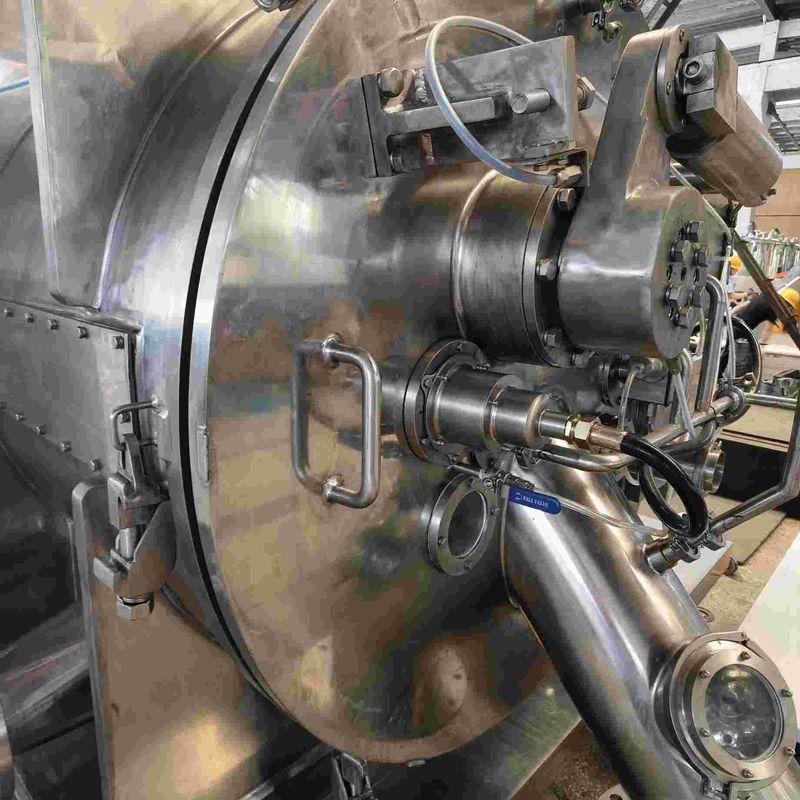

GKF Model High Sanitation After-Sale Service Continuous Stainless Steel 316L GMP Peeler Discharge Centrifuge Machines
With special structural design and system configuration, GKF pharma peeler centrifuge can be used to obtain pharmaceutical products or intermediate products that meet the GMP (FDA, COS, TGA) standards with reasonable consumption, without generating new impurities and pollutants during the operation.
GKF centrifuge series are new types of products integrated with multiple patents.
Scope of application: particle diameter: 0.05mm~1mm
Solid content: 10%~50%
Cake density: 1~1.5
Technical Parameters
| Model | ||
| Items | GKF1350 | |
| Basket Diameter (mm) | 1350 | |
| Basket Length (mm) | 680 | |
| Filtering Area | 2.88 | |
| Basket Volume (L) | 465 | |
| Max. Loading Weight (kg) | 600 | |
| Basket Speed (r/min) | 1200 | |
| Separation Factor | 1088 | |
| Power of Driving Motor (kW) | 55/75 | |
| Dimension(L×W×H)(mm) | Machine | 4350*2150*2700 |
| Dimension(L×W×H)(mm) | Installation | 5200*3600*2700 |
| Weight(kg) | 18000 | |
Characterized by automatic control, batch processing, continuous working, short circulating period, large handling capacity, low moisture and good washing effect, the product is applicable to the solid-liquid separation of toxic, hazardous, inflammable and explosive media of low viscosity and with high requirements for sanitation. It has been widely applied in the pharmaceutical production, food production and other fields.
Main Features
- Fully-enclosed and clean structural design complies with cGMP requirements and meets requirements for aseptic production of medicine and food.
- Clean room installation design realize flexible connections and complete separates the dynamic systems such as the motor drive and hydraulic lubrication from production area such as the basket, case and feeding/discharging devices and the wall.
- PLC control for automatic operation is in accordance with the pre-set program. Touch screen operation, realizing human-machine dialogue, which is easy for operation and maintenance.
- Action elements like feeding, filtration, washing, dry spinning, discharging and residual cake removal is with automatic electric-hydraulic control.
Huada History
The Company successively researched and developed AUT, LGZ, LW, GK and other series of models, and successfully put them into the market.
Jiangsu Huada applied for a patent for its PLD automatic vertical bottom discharge scraper centrifuge with Auxiliary Pulling Bag, obtained the certificate for invention patent and won the National Patent Excellence Award in 2012.
Huada was merged by SCIMEE Sci.& Tech. Co., Ltd. (stock code: 300425) and became a wholly-owned subsidiary of the listed company.
SCIMEE became a holding company of CSCEC and Huada became a state-owned holding company with an annual output value of more than RMB 300 million for three consecutive years.
In September 1993, Zhangjiagang Huada Centrifuge Co., Ltd. was established.
Jiangsu Huada Phase-II Project was completed and put into use, achieving an annual productivity of 1,500 centrifuges.
Jiangsu Huada was changed into Huada as a whole with registered capital changed to RMB 60 million.
With an annual output value of more than RMB 350 million, Huada produced more than 1,600 sets of products annually.
Jiangsu Huada Phase-III Project was officially launched, and the environmental protection equipment workshop was completed, realizing mass production.
Working concepts
Setting goals, highlighting results, being positive and happy and realizing the value of life; learning culture, innovation culture, quality culture, safety culture, performance culture, love culture
Technological Innovation
Technological innovation is the first driving force for development. Gathering a group of engineers and technicians dedicated to developing filtration and separation technologies, Huada has undertaken many national torch plan projects, key new product projects, key scientific and technological projects, etc., and has won various provincial and municipal awards and honors.
After years of continuous innovation and development, it has researched and developed various types of centrifuge products and complete sets of equipment, and has accumulated rich experience in their application in the chemical engineering, pharmaceuticals, energy, food, environmental protection and other industries.
Technological Strength
Currently, Huada has 10 senior engineers, 45 engineers and 83 engineering technicians, a Jiangsu Provincial Engineering and Technology Research Center and an Equipment Technology Research Institute. It does not only have a powerful technology research center, but also has established long-term technical cooperation with domestic research institutes, universities and other institutions and has served as a practice base for many universities.
R&D Ability
It has successfully developed more than 40 series of products such as PLD, LGZ, PGZ, PSD, PSB, PBZ, PQLD, PQFB, PQFD, GK, GKH, GKF, LW, LLW and LLWZ, and more than 200 models, and has R&D ability for a variety of new products and new technologies each year.
Achievements in Scientific Research
It has 62 national patents for invention, and has presided over and participated in the drafting of many national and industrial standards like Three-column and Four-point Suspension Centrifuges, Screen Worm Centrifuges, Explosion-proof Peeler Centrifuges, Peeler Centrifuges and Decanter Centrifuges.
