1000mm 11kW Milk Centrifuge Separator Machine Dual Phase Steel 2205
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20000-180000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Bowl Diameter (mm): | 200-1000 |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Power Of Driving Motor (kW): | 11-132 |
| High Light: | 11kW milk centrifuge separator machine,1000mm milk cream centrifugal separator,milk centrifuge separator machine Dual Phase |
||
Product Description

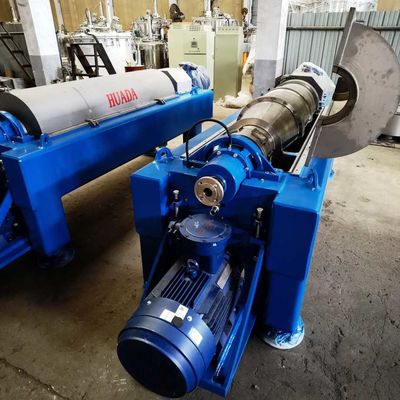

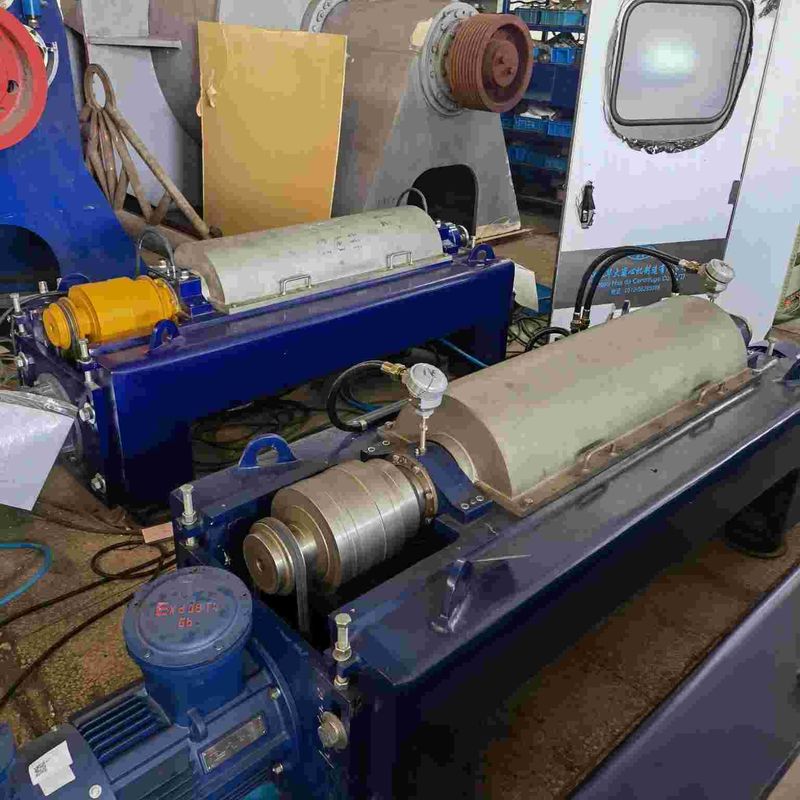

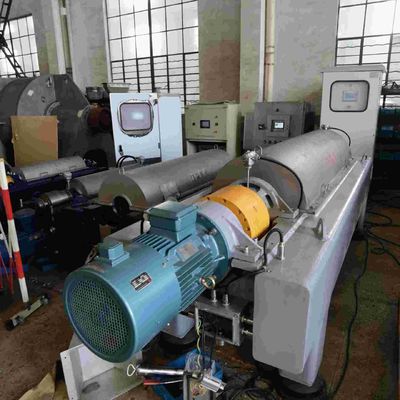

LW 200-1000mm 11kw Automatic Continuous Dual Phase Steel 2205 Milk Cream Separator Centrifuges
Main constructional features
◇Vertical base design and symmetrical arrangement of motor and bowl assembly, that ensures stable operation and less vibration.
◇Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel or duplex steel, offering high maximum bowl speed and high centrifugal force.
◇Dual motor drive makes bowl speed and conveyor speed adjustable.
◇Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys.
◇Optionla planetary gearbox and hydraulic gearbox, offering wide range of differential speed adjustment.
◇Multiple safety protection: bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
◇JG type rubber vibration isolator, no need of anchor bolts.
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LW220*880 | 200 | 4 | 4800 | 2840 | 11 | 1000 | 2660*740*780 |
| LW300*1290 | 300 | 4.3 | 4400 | 3250 | 15 | 1500 | 3250*960*1000 |
| LW355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3550*1010*1030 |
| LW450*1800 | 450 | 4 | 2800-3200 | 1575-2580 | 30-37 | 3500 | 4150*1090*1250 |
| LW450*2050 | 450 | 4.5 | 3200-3600 | 2580-3265 | 30-37 | 4000 | 4350*1090*1250 |
| LW530*2120 | 530 | 4 | 2800-3200 | 2330-3040 | 45-55 | 5300 | 4850*1230*1450 |
| LW530*2650 | 530 | 5 | 2500 | 1850 | 55 | 6000 | 5400*1230*1450 |
| LW650*2800 | 650 | 4.3 | 2500 | 2270 | 90 | 9600 | 5400*1750*1600 |
| LW720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
| LW850*3200 | 720 | 3.76 | 2000 | 1900 | 160 | 16000 | 6750*2280*1900 |
| LW1000*3000 | 1000 | 3 | 1500 | 1260 | 132 | 16000 | 5200*2500*2000 |
Customers Are More at Ease with Guaranteed Services
Improvement of Service Team - Making Services More Efficient
Service capacity: 23 regular after-sales service employees + 7 emergency service employees + 15 mobile service employees, of which, those with service experience for more than 10 years account for 35%, those with service experience for 5-10 years account for 40%, and those with service experience for 3-5 years account for 25%.
Service qualifications: A history of customer on-site services for nearly 30 years, experience in providing services to more than 5,000 customers, a total of more than 200,000 service times.
Service results: Customer satisfaction of more than 95%.
We only obtain information about the separation process within the scope of your permission and guarantee the security of your data.
Establishment of Strategic Direction - Making Services More Reassuring
Our mission is "to provide customers with high-tech centrifuges so that more people can enjoy perfect products and services in a convenient and intelligent way, and to grow into a provider of green industrial solutions based on high-end intelligent manufacturing". We have been adhering to the development concept of "service as the core and customer satisfaction as the purpose". Over the years, we have continuously improved company service management, service team building and service quality to provide customers with more professional and standardized services.
Construction of After-sales Outlets - Making Services More Convenient
Seven service outlets + one service center, realizing emergency service within 8h, inter-provincial service within 12h, and national service within 48h.
