200mm Avocado Oil Centrifuge 4800rpm Continuous Horizontal
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20000-180000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Weight (kg): | 1000-16000 | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Separation Factor: | 1260-2840 |
| High Light: | 200mm avocado oil centrifuge,200mm continuous centrifuge machine,avocado oil centrifuge 4800rpm |
||
Product Description

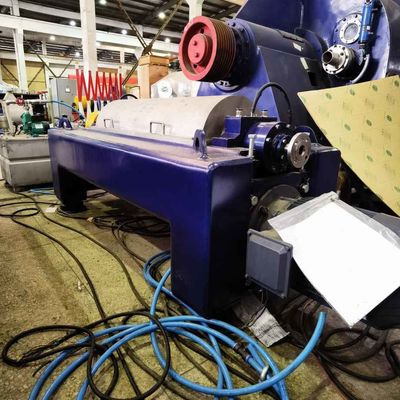

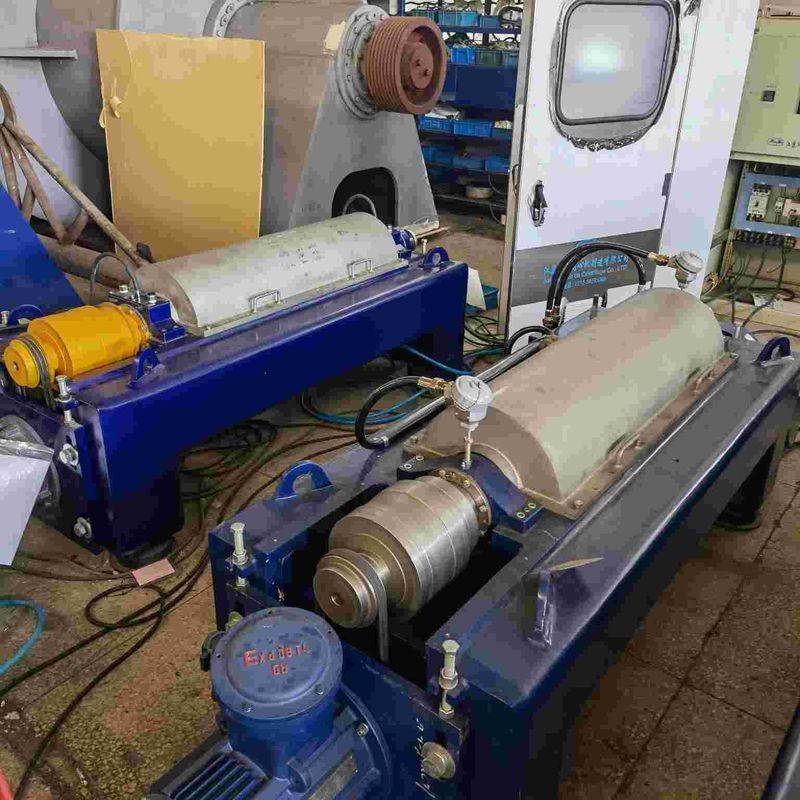

LW 200mm PLC Control Avocado Oil Continuous After-Sale Service Horizontal Decanter Centrifuge
Product Introduction
Labyrinth seal is used for both bowl ends of LW standard type decanter centrifuge, simple and convenient, after separation, the solid phase is conveyed to the solid discharge port by scroll conveyor, and discharged out of centrifuge under centrifugal force caused by high speed rotation; while the liquid phase drains out under gravity and centrifugal force through the overflow plate. This series decanter centrifuge features easily operation, continuous and stable running, and wide application scope.
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LW220*880 | 200 | 4 | 4800 | 2840 | 11 | 1000 | 2660*740*780 |
| LW300*1290 | 300 | 4.3 | 4400 | 3250 | 15 | 1500 | 3250*960*1000 |
| LW355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3550*1010*1030 |
| LW450*1800 | 450 | 4 | 2800-3200 | 1575-2580 | 30-37 | 3500 | 4150*1090*1250 |
| LW450*2050 | 450 | 4.5 | 3200-3600 | 2580-3265 | 30-37 | 4000 | 4350*1090*1250 |
| LW530*2120 | 530 | 4 | 2800-3200 | 2330-3040 | 45-55 | 5300 | 4850*1230*1450 |
| LW530*2650 | 530 | 5 | 2500 | 1850 | 55 | 6000 | 5400*1230*1450 |
| LW650*2800 | 650 | 4.3 | 2500 | 2270 | 90 | 9600 | 5400*1750*1600 |
| LW720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
| LW850*3200 | 720 | 3.76 | 2000 | 1900 | 160 | 16000 | 6750*2280*1900 |
| LW1000*3000 | 1000 | 3 | 1500 | 1260 | 132 | 16000 | 5200*2500*2000 |
Customers Are More at Ease with Guaranteed Services:
- Free technical consultation
- Free maintenance within the warranty period
- Free equipment software upgrading
- Application for free return if the product technology is not applicable
- More Assured in Use with Guarantees for Products
Technology
It has focused on the R&D and application of filtration and separation technologies for nearly 30 years, making the products more specialized and advanced.
Quality
It has a professional quality management team and standardized inspection procedures to achieve effective control over the whole process of design, procurement, manufacturing, services, etc., to ensure that each product is acceptable and traceable.
Safe
With experience in separation of more than 2,000 kinds of materials, it can meet the on-site anti-corrosion, explosion-proof, GMP and other requirements of the customers, and realize remote intelligent control and fault diagnosis of equipment.
Efficiency
It has a modern professional management team, an information-based efficient office platform and an automatic production workshop, which uses standard grinding tools for production and has an annual productivity of 1,800 sets to ensure that the products are delivered on time.
Services
It has an efficient professional service team, making services available anywhere.
Cost
It ensures that all customers can have high-tech, high-quality, high-precision, safer products at more favorable prices.
Eco-friendly
It continuously optimizes the product structure design, configuration and plans to meet the environmental protection design requirements, reduce costs and increase benefits for customers.
