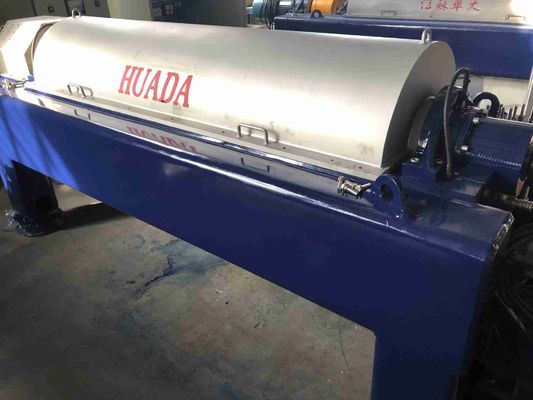

Continuous 4800rpm Algae Separation Centrifuge 11kW Stainless Steel
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20000-180000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bowl Speed (r/min): | 1500-4800 |
| High Light: | 4800rpm Algae Separation Centrifuge,4800rpm continuous horizontal centrifuge,Algae Separation Centrifuge 11kW |
||
Product Description
LW Continuous High Efficiency Algae Separation Customized Decanter Centrifuge
Description
LW series products are decanter centrifuges that can work continuously and are mainly used for solid-liquid separation, dehydration, fractionation, clarification, and concentration of materials. Based on different phase densities, it separates the solid phases and liquid phases under the action of the centrifugal force generated by the high-speed revolution of the Bowl. The solid phases are conveyed to the conical end of the Bowl through a spiral and then discharged, and the liquid phases are discharged out from the overflow port at the big end of the Bowl. Characterized by simple design, high efficiency and scientific configuration, this product has been widely applied to chemical, pharmaceutical, environmental protection, food, mining, energy and other industries.

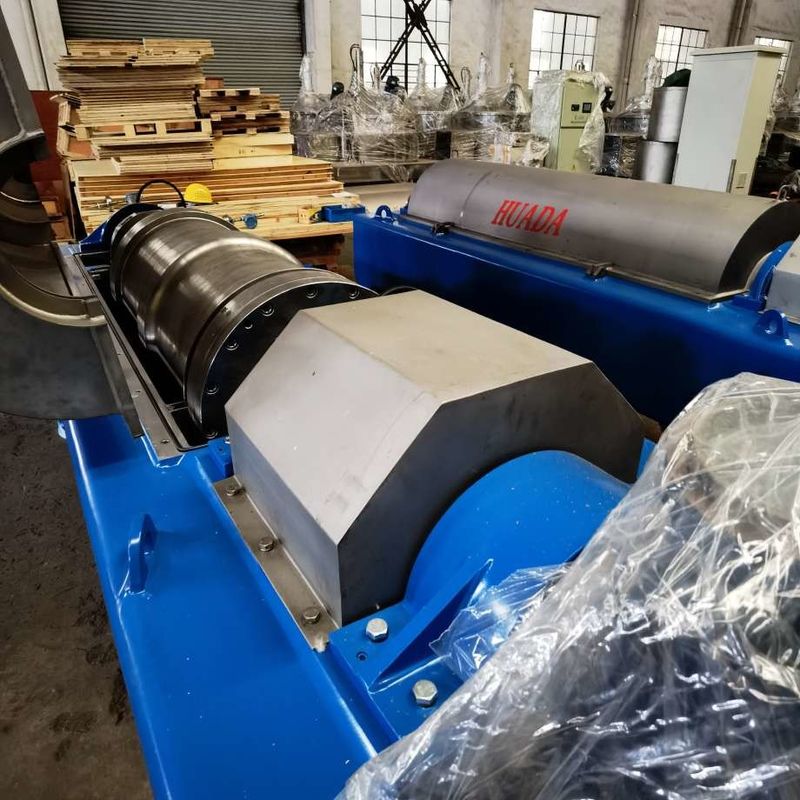

Hydraulic scroll driving system
The hydraulic conveyor driving is a closed driving system, including the centrifuge bowl and conveyor. It is independent from the bowl driving. The hydraulic conveyor driving is different from other mechanical conveyor driving system which relies on bowl rotating to generate differential speed. The hydraulic driving device is directly mounted on the conveyor assembly, and is driven by hydraulic pump aggregate. Therefore it is independent from the bowl driving system.
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LW220*880 | 200 | 4 | 4800 | 2840 | 11 | 1000 | 2660*740*780 |
| LW300*1290 | 300 | 4.3 | 4400 | 3250 | 15 | 1500 | 3250*960*1000 |
| LW355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3550*1010*1030 |
| LW450*1800 | 450 | 4 | 2800-3200 | 1575-2580 | 30-37 | 3500 | 4150*1090*1250 |
| LW450*2050 | 450 | 4.5 | 3200-3600 | 2580-3265 | 30-37 | 4000 | 4350*1090*1250 |
| LW530*2120 | 530 | 4 | 2800-3200 | 2330-3040 | 45-55 | 5300 | 4850*1230*1450 |
| LW530*2650 | 530 | 5 | 2500 | 1850 | 55 | 6000 | 5400*1230*1450 |
| LW650*2800 | 650 | 4.3 | 2500 | 2270 | 90 | 9600 | 5400*1750*1600 |
| LW720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
| LW850*3200 | 720 | 3.76 | 2000 | 1900 | 160 | 16000 | 6750*2280*1900 |
| LW1000*3000 | 1000 | 3 | 1500 | 1260 | 132 | 16000 | 5200*2500*2000 |
