Olive Oil Extraction 3600rpm Decanter Centrifuges Continuous Operation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LWS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD40000-150000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 50 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Explosion-proof System: | Optional |
| High Light: | 3600rpm Decanter Centrifuges,Olive Oil scroll discharge centrifuge,Olive Oil Decanter Centrifuges |
||
Product Description

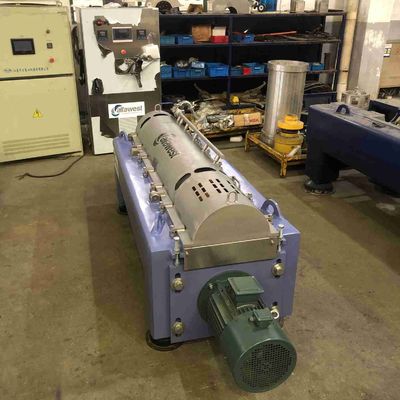

LWS Model Horizontal Customized Continuous Operation Olive Oil Extraction Scroll Discharge Decanter Centrifuge
Details
All machine parts touch with materials are stainless steel (SUS316L) made, to ensure the machine corrosion- resistant and durable.
The solid discharge port is made of ceramic. It's durable with long life.
Screw blade is tungsten carbide treated, with excellent wear resistance
The screw blade is hollow designed, so that the solid phase is less disturbed by the flowing of liquid phase. This way, can enhance the dryness of the solid output, and enhance the working-efficiency.

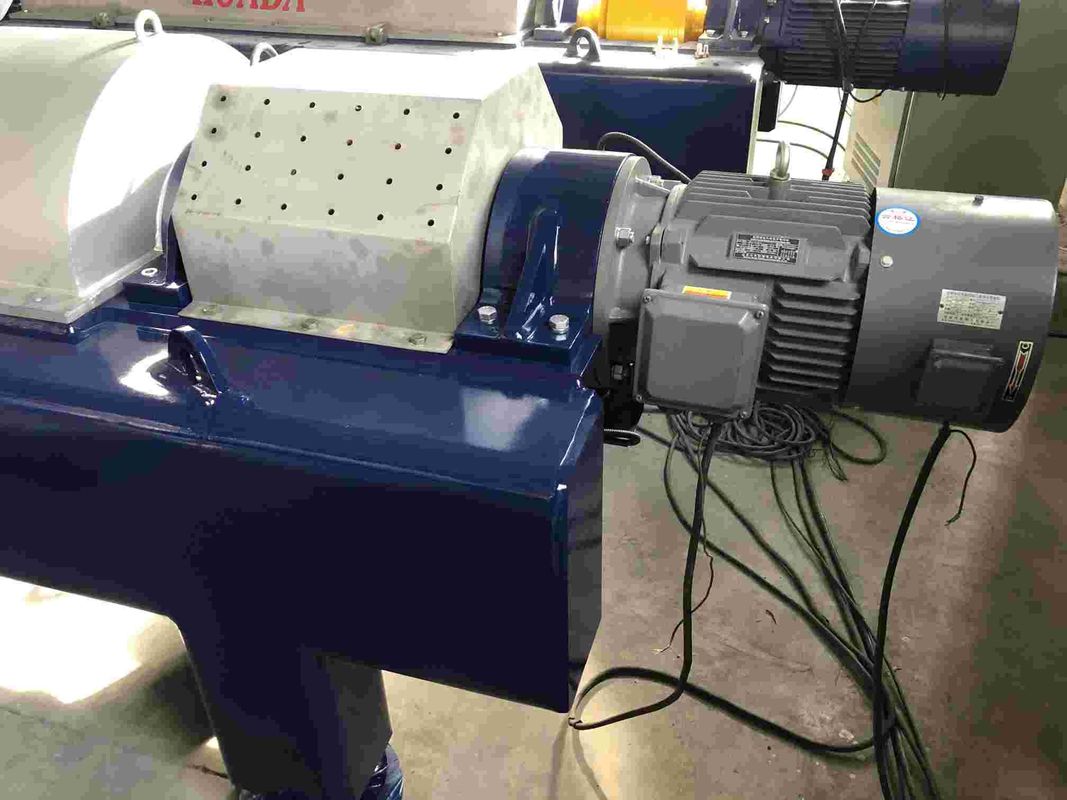

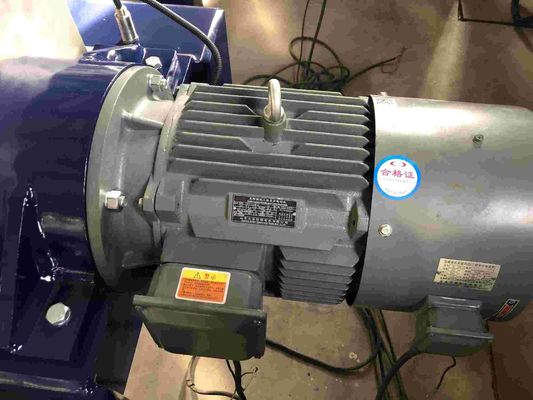

Double Motors and double frequency changers.
The differential speed is adjustable
Thin oil lubrication system is available for high speed and continuous operating.
We designed the oil tank in the mainframe, the whole machine structure is more compact.
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWS355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3450*1010*1030 |
| LWS420*1680 | 420 | 4 | 3600 | 3050 | 30-37 | 4000 | 3500*1450*1300 |
| LWS530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 5500 | 4100*1600*1450 |
| LWS720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
SERVICE WARRANTY
Huada has Long tradition customer service, we always try our best.
An effective service management organization ensures professional and flexible management of any affairs.
Huada has a long tradition of customer service and we always do our best to provide assistance.
An effective service management organization can ensure professional and flexible handling of product application business.
Repair - Providing door-to-door on-site repair and return to factory for repair.
Safety confirmation - During the term of the service life of the centrifuge, providing centrifuge safety testing and validation in the annual overhaul.
We just obtain the data and information connected with the separation process within the scope of your permit, and we ensure your data safety.
