Horizontal Continuous Three Phase Decanter Centrifuges For Salt Producing
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LWS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD40000-150000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Decanter Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Explosion-proof System: | Optional |
| High Light: | Decanter Centrifuges Salt Producing,2000rpm three phase centrifuge,Three Phase Decanter Centrifuges |
||
Product Description

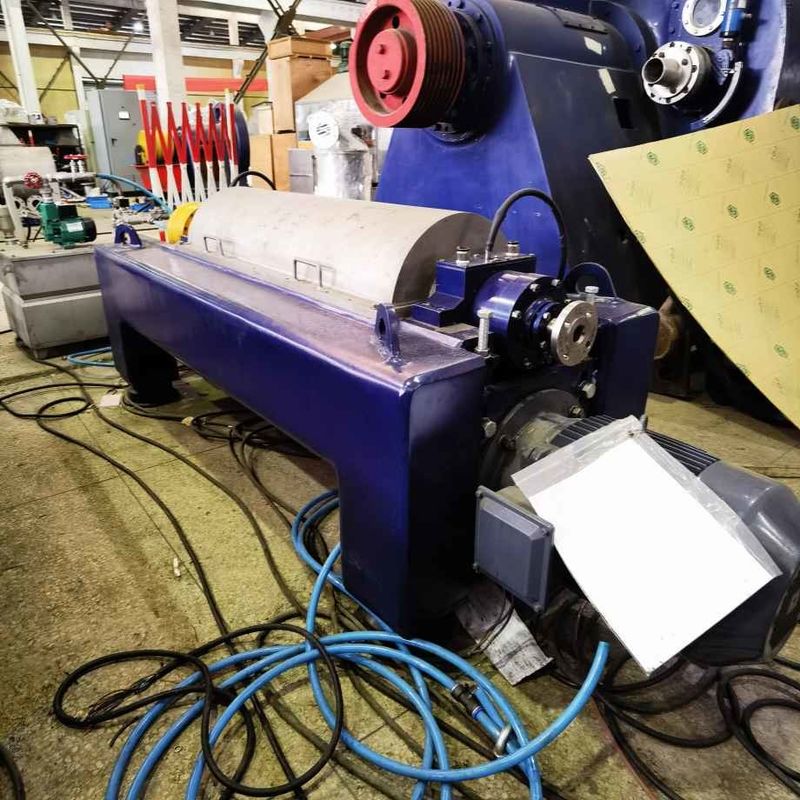

LWS Horizontal Continuous Operation Three-Phase Decanter Centrifuge For Salt Producing
Features
- All parts coming into contact with the product are made of stainless steel
- 3-phase AC motor for controlled torque starting via frequency converter
- Approximately 80 to 90% of the oil is recovered.
- Low personnel costs due to continuous and automatic operation.
- Highest g-force for higher solids output
- Adjustable bowl speed via VFD
- Automatic adjustment of differential speed via VFD
- Two motor drive
- Belts for both primary motor and secondary
- NSK /SKF Bearing
Technical Parameters
| Model | Bowl Diameter (mm) | L/D | Bowl Speed (r/min) | Separation Factor | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LWS355*1460 | 350 | 4.17 | 4000 | 3130 | 22-30 | 2200 | 3450*1010*1030 |
| LWS420*1680 | 420 | 4 | 3600 | 3050 | 30-37 | 4000 | 3500*1450*1300 |
| LWS530*2120 | 530 | 4 | 3200 | 3040 | 45-55 | 5500 | 4100*1600*1450 |
| LWS720*2880 | 720 | 4 | 2000 | 1610 | 110 | 11000 | 5300*2050*1750 |
Working concepts
Setting goals, highlighting results, being positive and happy and realizing the value of life; learning culture, innovation culture, quality culture, safety culture, performance culture, love culture
Technological Innovation
Technological innovation is the first driving force for development. Gathering a group of engineers and technicians dedicated to developing filtration and separation technologies, Huada has undertaken many national torch plan projects, key new product projects, key scientific and technological projects, etc., and has won various provincial and municipal awards and honors.
After years of continuous innovation and development, it has researched and developed various types of centrifuge products and complete sets of equipment, and has accumulated rich experience in their application in the chemical engineering, pharmaceuticals, energy, food, environmental protection and other industries.
Technological Strength
Currently, Huada has 10 senior engineers, 45 engineers and 83 engineering technicians, a Jiangsu Provincial Engineering and Technology Research Center and an Equipment Technology Research Institute. It does not only have a powerful technology research center, but also has established long-term technical cooperation with domestic research institutes, universities and other institutions and has served as a practice base for many universities.
R&D Ability
It has successfully developed more than 40 series of products such as PLD, LGZ, PGZ, PSD, PSB, PBZ, PQLD, PQFB, PQFD, GK, GKH, GKF, LW, LLW and LLWZ, and more than 200 models, and has R&D ability for a variety of new products and new technologies each year.
Achievements in Scientific Research
It has 62 national patents for invention, and has presided over and participated in the drafting of many national and industrial standards like Three-column and Four-point Suspension Centrifuges, Screen Worm Centrifuges, Explosion-proof Peeler Centrifuges, Peeler Centrifuges and Decanter Centrifuges.
