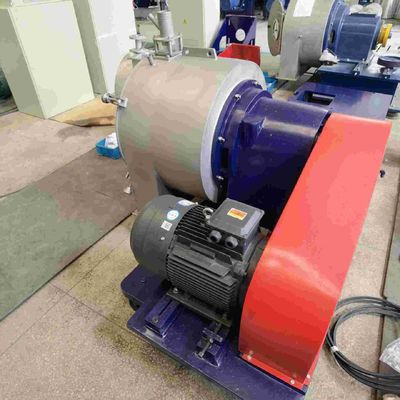

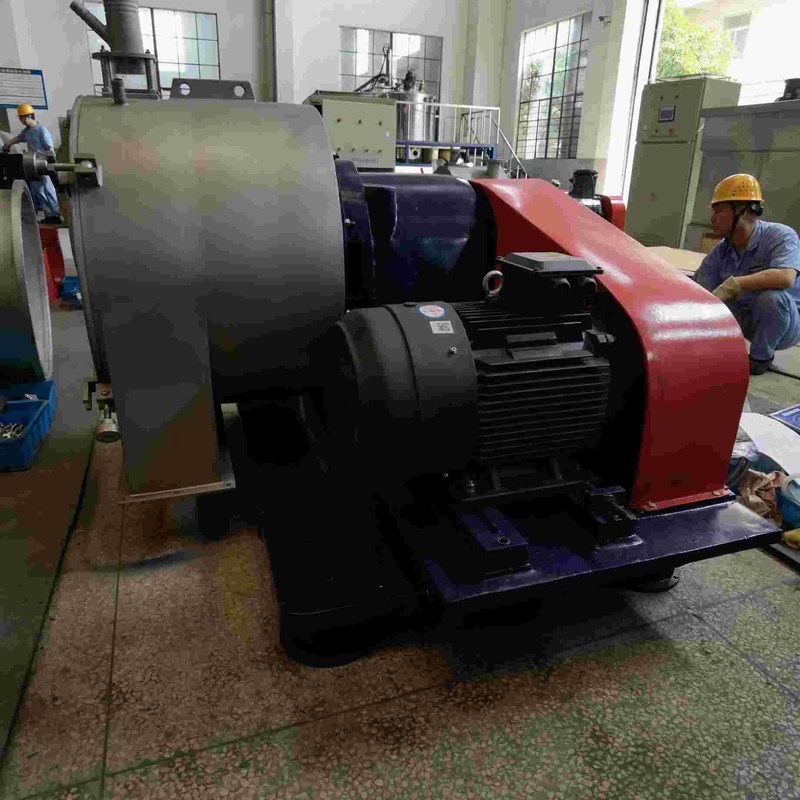

2500rpm Worm Screen Scroll Discharge Centrifuge 22kW For Sodium Sulphite Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LLW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Screen Worm Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK |
| High Light: | 2500rpm scroll discharge centrifuge,2500rpm continuous centrifuge machine,scroll discharge centrifuge 22kW |
||
Product Description
LLW PLC Control Worm Screen Scroll Discharge Centrifuge Applied To Sodium Sulphite Separation
MAIN FEATURES
1. The parts in contact with materials, such as the bowl and screw, can be made of corrosion-resistant stainless steel or titanium alloy.
2. Dedicated filter screen with optional material, the thickness of the filter screen can reach 0.5mm, the mesh density is optional 10-250 mesh, and the service life is longer.
3. The bowl speed is variable frequency and steplessly adjustable.
4. Simple and reliable circulating oil lubrication method.
5. Safety protection: speed detection, oil-free protection, motor overload and overheat protection, spiral zero differential protection.
Successful Applications
| Adipic acid | Mirabilite | Pyrazole | AH-Salt | Ammonium persulfate | Gypsum | Silver nitrate | Ammonium phosphate |
| Ammonium sulfate | Ion exchange resin | Sodium chloride | Anthracene | Sodium chlorate | Acetylsalicylic acid | Sodium formate | Manganese sulfate |
| Borax | Methyl collulose (MC) | Calcium formate | Sodium nitrate | Sodium perborate | Sodium phosphate | Citric acid | Sodium sulfate |
| Polystyrene | Polystyrene alcohol | Sodium thiosulfate | Potash (potassium carbonate) | Tartaric acid | Crystallized soda | Potassium vanadium | Trisodium phosphate |
| Potassium bicarbonate | Zinc sulfate | Pentaerythritol | Plastic particles | Ammonium thiosulfate | Sodium metaborate | Copper sulfate | Glacial acetic acid |
| Potassium chloride | Potassium pentasulfide | Potassium phosphate | Potassium sulfate | ...... |
LLW Screen Worm Centrifuge (Standard Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW320 | 320 | 2630 | 1240 | 0.5-3 | 7.5 | 700 | 1050*1350*1000 |
| LLW350 | 350 | 3000 | 1765 | 1-5 | 11 | 1200 | 1520*1380*1190 |
| LLW450 | 450 | 2500 | 1575 | 2-8 | 22 | 1700 | 1570*1240*1200 |
| LLW530 | 530 | 2000 | 1190 | 3-10 | 30 | 2500 | 1680*1390*1340 |
| LLW630 | 630 | 1800 | 1140 | 5-15 | 37 | 3500 | 2100*1430*1530 |
| LLW800 | 800 | 1500 | 1000 | 8-20 | 55 | 4500 | 2500*2200*1800 |
| LLW1000 | 1000 | 900 | 450 | 10-30 | 75 | 6200 | 3200*2200*2300 |
LLW Screen Worm Centrifuge (Mechanical Gearbox Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Power of Hydraulic Station Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW530Y | 530 | 2000 | 1190 | 3-10 | 30 | 11-18.5 | 2500 | 1680*1390*1340 |
| LLW630Y | 630 | 1800 | 1140 | 5-15 | 37 | 15-30 | 3500 | 2100*1430*1530 |
LLW Screen Worm Centrifuge (Screw Feeding Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW350LX | 350 | 2500 | 1765 | 1-5 | 11 | 1400 | 2300*1180*1000 |
| LLW450LX | 450 | 2500 | 1575 | 2-8 | 22 | 2000 | 2360*1210*1040 |
| LLW530LX | 530 | 2000 | 1190 | 3-10 | 30 | 2800 | 2650*1350*1230 |
| LLW630LX | 630 | 1800 | 1140 | 5-15 | 37 | 4200 | 3050*1580*1400 |
SERVICE WARRANTY
Huada has Long tradition customer service, we always try our best.
An effective service management organization ensures professional and flexible management of any affairs.
Laboratory test - Making laboratory analysis on separation characteristics of the material to provide the basis for type.
Small batch test - After preliminary type selection, simulation separation test can be carried out for small batch of verification machines to obtain relevant separation data and to provide the basis for separation process section design. This can be made in test workshop of Huada or can be made at place designated by the customer with vehicle-mounted test unit provided.
Type selection - centrifuge type selection is crucial and decides separation process feasibility, safety, product quality, yield, operation cost, etc. also, it a crucial impact on Infrastructure projects, equipment investment and environmental protection, etc.
For particular separation process requirements, we must totally understand physical and chemical properties of the material. Under the premise of meeting anti-corrosion and anti-explosion requirements (i.e. safety requirements). we can realize filtration and separation requirements and at the same time fully consider the automation, running cost and other factors . Our experts in application technology can put forward the corresponding proposal for specific operating conditions and effectively communicate with your process/ equipment, personnel to ensure reasonable, advanced and economical type selection
Huada has a long tradition of customer service and we always do our best to provide assistance.
An effective service management organization can ensure professional and flexible handling of product application business.
Presale consulting - sales staff and sales engineers provide relevant technical advice specific to demands proposed by customers. Technical experts in application can provide technical support where necessary.
Equipment layout and Installation guide - providing centrifuge and system layout guided, installation and operation guide, in order to meet safety, use and maintenance requirement.
Operation and maintenance training - Providing detailed centrifuge debugging and use guide, making safety, operation and maintenance training for operation and maintenance personnel during installation and debugging; also, customers can send relevant personnel to Huada for short-term training.
Debugging – During commissioning, providing site guidance of the service engineers and determining the corresponding operation parameters, to meet the separation requirements.
Process optimization - optimizing separation engineering parameters and procedure in the process of debugging, to improve separation efficiency and yield and output and to reduce energy consumption.
Software upgrading - For our sold centrifuges, we can make individual program improvement and provide program upgrading on the request of customers during their subsequent operation.
Repair - Providing door-to-door on-site repair and return to factory for repair.
Safety confirmation - During the term of the service life of the centrifuge, providing centrifuge safety testing and validation in the annual overhaul.
We just obtain the data and information connected with the separation process within the scope of your permit, and we ensure your data safety.
