900rpm Electric Centrifuge Machine 1000mm Applied To Tartaric Acid Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LLW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Screen Worm Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK |
| Highlight: | 900rpm electric centrifuge machine,1000mm industrial centrifuge,electric centrifuge machine 1000mm |
||
Product Description

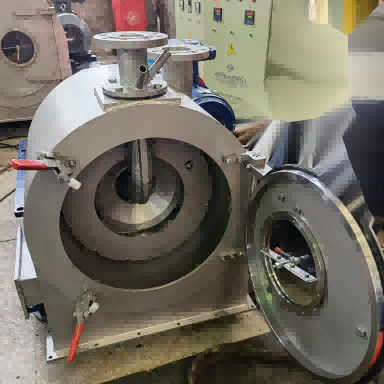

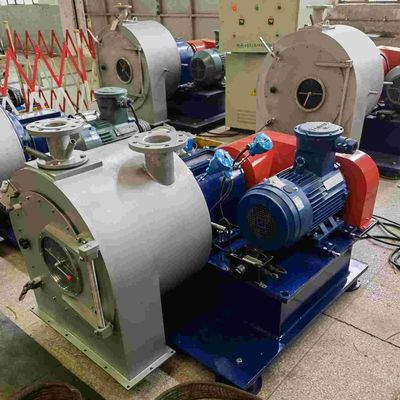

LLW Worm Screen Centrifuge Applied To Tartaric Acid Separation (Mechanical Gearbox Type)
Product Description
- The machine design corresponds to GMP requirements.
- It can run continuously and deal with materials greatly.
- Several various bowls and spiral roll canisters make wide use.
- Reasonable power setting and low consumption.
- The parts touching separated materials are made of Austenite stainless steel.
- Imported bearing and sealed components and independent cycle oil lubrication system are equipped. Sealed shell can protect operator and environment.
- Small volume ,easy installation need no complex foundation.
Successful Applications
| Adipic acid | Mirabilite | Pyrazole | AH-Salt | Ammonium persulfate | Gypsum | Silver nitrate | Ammonium phosphate |
| Ammonium sulfate | Ion exchange resin | Sodium chloride | Anthracene | Sodium chlorate | Acetylsalicylic acid | Sodium formate | Manganese sulfate |
| Borax | Methyl collulose (MC) | Calcium formate | Sodium nitrate | Sodium perborate | Sodium phosphate | Citric acid | Sodium sulfate |
| Polystyrene | Polystyrene alcohol | Sodium thiosulfate | Potash (potassium carbonate) | Tartaric acid | Crystallized soda | Potassium vanadium | Trisodium phosphate |
| Potassium bicarbonate | Zinc sulfate | Pentaerythritol | Plastic particles | Ammonium thiosulfate | Sodium metaborate | Copper sulfate | Glacial acetic acid |
| Potassium chloride | Potassium pentasulfide | Potassium phosphate | Potassium sulfate | ...... |
LLW Screen Worm Centrifuge (Standard Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW320 | 320 | 2630 | 1240 | 0.5-3 | 7.5 | 700 | 1050*1350*1000 |
| LLW350 | 350 | 3000 | 1765 | 1-5 | 11 | 1200 | 1520*1380*1190 |
| LLW450 | 450 | 2500 | 1575 | 2-8 | 22 | 1700 | 1570*1240*1200 |
| LLW530 | 530 | 2000 | 1190 | 3-10 | 30 | 2500 | 1680*1390*1340 |
| LLW630 | 630 | 1800 | 1140 | 5-15 | 37 | 3500 | 2100*1430*1530 |
| LLW800 | 800 | 1500 | 1000 | 8-20 | 55 | 4500 | 2500*2200*1800 |
| LLW1000 | 1000 | 900 | 450 | 10-30 | 75 | 6200 | 3200*2200*2300 |
LLW Screen Worm Centrifuge (Mechanical Gearbox Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Power of Hydraulic Station Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW530Y | 530 | 2000 | 1190 | 3-10 | 30 | 11-18.5 | 2500 | 1680*1390*1340 |
| LLW630Y | 630 | 1800 | 1140 | 5-15 | 37 | 15-30 | 3500 | 2100*1430*1530 |
LLW Screen Worm Centrifuge (Screw Feeding Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW350LX | 350 | 2500 | 1765 | 1-5 | 11 | 1400 | 2300*1180*1000 |
| LLW450LX | 450 | 2500 | 1575 | 2-8 | 22 | 2000 | 2360*1210*1040 |
| LLW530LX | 530 | 2000 | 1190 | 3-10 | 30 | 2800 | 2650*1350*1230 |
| LLW630LX | 630 | 1800 | 1140 | 5-15 | 37 | 4200 | 3050*1580*1400 |
PROCEDURE CONTROL
Huada has a professional quality management team, which implements each link related to users and products from contract review, technical design, material procurement, manufacturing process to after-sales service according to standard operating procedure, to effectively control the full process from design, purchasing, manufacturing to service.
For every process, whether purchasing, internal parts processing or assembly process, we have established strict quality control requirements. For welding, surface coating, main and key parts processing and general assembly, we have formulated detailed operation and inspection regulations to ensure effective control of each process.
Inspection and validation
A full-time inspector is assigned to every workshop/production line, who is responsible for process tracking and inspection. One centrifuge can have more than 300 control points for inspection and validation set, to ensure that each centrifuge conforms to standard requirements, design requirements and customers’ individual requirements.
ERP system carries on summary and mathematical analysis of inspection data, puts forward improvement scheme and makes continual improvement.
