30kW Horizontal Centrifuge Machine 2000rpm Applied To Sodium Nitrate Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LLW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20000-100000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Screen Worm Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK |
| Highlight: | 30kW horizontal centrifuge machine,2000rpm continuous centrifuge machine,horizontal centrifuge machine 2000rpm |
||
Product Description

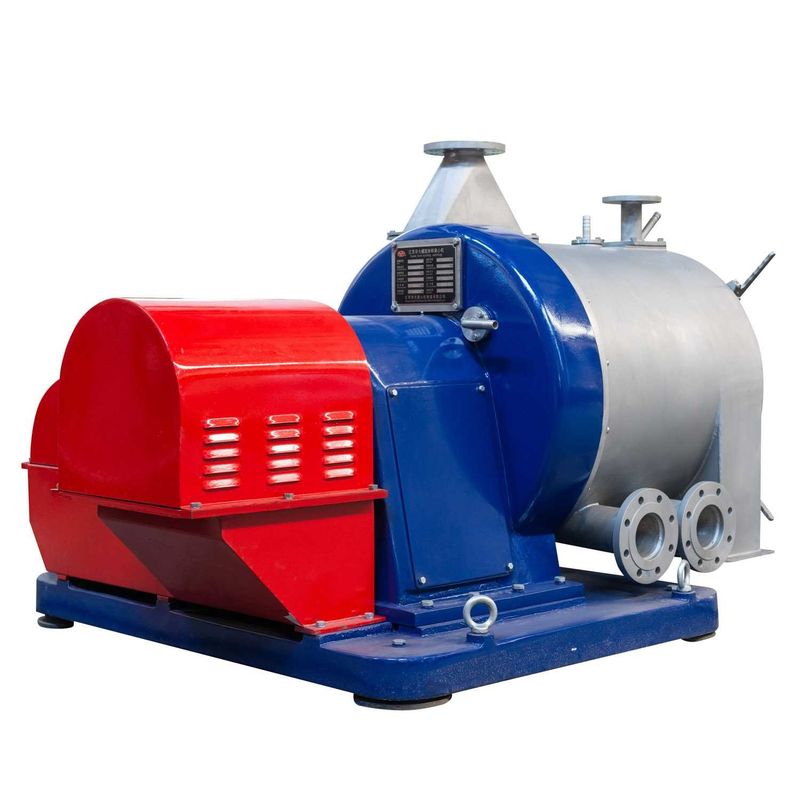

LLW 30kW Worm Screen Centrifuge Applied To Sodium Nitrate Separation
Structural Diagram
The bowl/screw of the centrifuge can be customized in different angles according to customer requirements.
Material selection:
The material of the part in contact between the centrifuge and the material can be selected from stainless steel (304, 316L, 2205, etc.), Hastelloy, titanium and other corrosion-resistant materials according to customer requirements.
Configuration selection:
Explosion-proof configuration, gas-liquid separation device at the discharge port, washing device, vibration and main bearing temperature monitoring protection, etc.
LLW Screen Worm Centrifuge (Screw Feeding Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW350LX | 350 | 2500 | 1765 | 1-5 | 11 | 1400 | 2300*1180*1000 |
| LLW450LX | 450 | 2500 | 1575 | 2-8 | 22 | 2000 | 2360*1210*1040 |
| LLW530LX | 530 | 2000 | 1190 | 3-10 | 30 | 2800 | 2650*1350*1230 |
| LLW630LX | 630 | 1800 | 1140 | 5-15 | 37 | 4200 | 3050*1580*1400 |
Technological innovation
Leading - Becoming industrial benchmark through continuous research and development and accumulation of application technologies
In recent years, Huada has developed a number of new product and new technologies:
Vertical bag-pulling bottom discharge centrifuge obtaining national invention patent
Horizontal thickening and filtration centrifuge
Intelligent remote control system technology
Residual filter cake removal technology
CIP technology
Centrifuge explosion-proof application technology
New generation of inert gas protection (explosion-proof) device
Sludge dewatering and drying system
Filtration and separation process design and supporting technology
Drilling mud separation process technology
We don't just satisfy that the centrifuges can meet the separation requirements, but we pay more attention to other issues of how to reduce materials remained in the machines, increase processing output, reduce damage to the solid particles, lower energy consumption, reduce maintenance costs, improve working environment and reliability. We conduct research and development of system integration technology and intelligent control technology, to provide customers with separation machinery and equipment which is safer, more intelligent, better in performance, environment-friendly and energy saving.
As a member of technical committee for standardization for China’s separation machinery, we have held revision of several industrial standards: GB/T 19815 Centrifuge Safety Requirements, JB/T 10769.1－2007 Types and Basic parameters of Three-column and plate Centrifuges, JB/T 8652－2008 Spiral Discharge Filtering Centrifuges and JB/T 5284-2010 Explosion-proof Peeler Centrifuge.
In 1998. our products passed national machinery safety certification, and reexamination is conducted each year. We have undertaken a number of national torch plan projects, key new product, technology-based small and mid-sized enterprise innovation fund projects. The accumulation of continuous research and development and application technology, become the industry benchmark. We are becoming industrial benchmark through continuous research and development and accumulation of application technologies.
Profession makes trust!
