Horizontal 2500rpm Worm Screen Centrifuge 450mm Automatic For Sodium Chloride
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LLW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Screen Worm Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK |
| High Light: | 2500rpm Worm Screen Centrifuge,electric centrifuge 450mm,Worm Screen Centrifuge 450mm |
||
Product Description

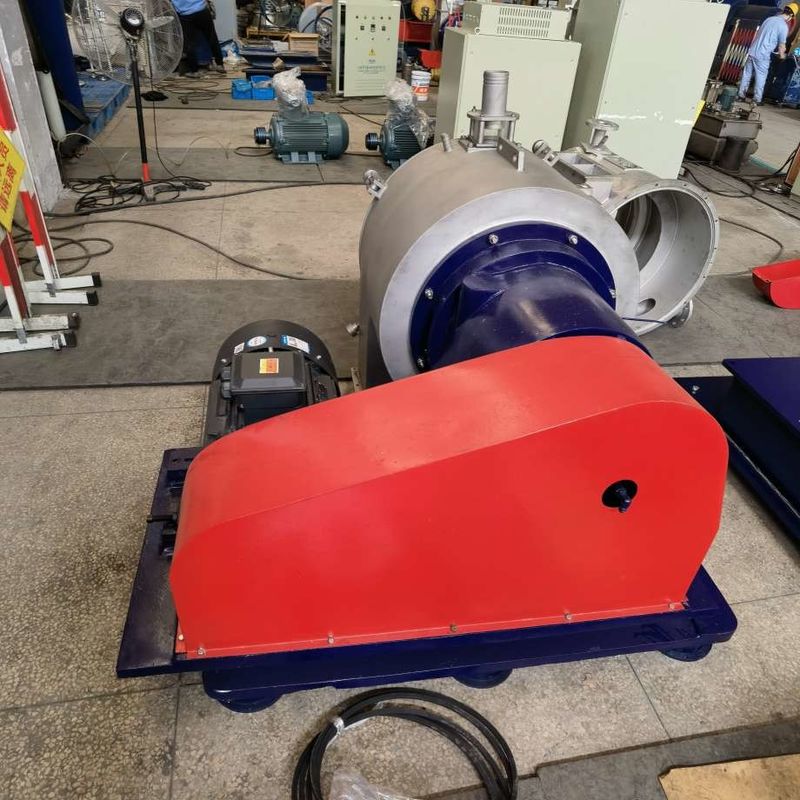

LLW Horizontal Screen Worm Automatic working Centrifuge For Sodium Chloride
MAIN FEATURES
1. Strong pertinence to materials, the crystal size is between 0.05-10mm
2. Continuous operation, Screw unloading, Large production
3. The solid phase has low moisture content, good washing effect and high separation efficiency
4. Dedicated filter screen, material optional, filter screen thickness up to 0.5mm, longer service life
5. Stepless speed regulation of drum speed
6. Simple and reliable lubrication
7. Compact structure, easy operation and maintenance
8. Safety protection: speed detection, oil-free protection, motor overload and overheat protection, spiral zero differential protection.
LLW series has hundreds of cases in the waste salt treatment industry, including sodium chloride, sodium sulfate, ammonium chloride, ammonium sulfate, ferric chloride, and ferrous chloride. In addition, we have rich experience in plant extraction (tea, ginkgo, iron powder, kudzu root, hemp leaves, etc.), magnesium sulfate, copper sulfate, sodium gluconate, sodium metabisulfite, marine snowmaking, and other industries. Welcome customers from related industries to inquire.
LLW Screen Worm Centrifuge (Standard Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW320 | 320 | 2630 | 1240 | 0.5-3 | 7.5 | 700 | 1050*1350*1000 |
| LLW350 | 350 | 3000 | 1765 | 1-5 | 11 | 1200 | 1520*1380*1190 |
| LLW450 | 450 | 2500 | 1575 | 2-8 | 22 | 1700 | 1570*1240*1200 |
| LLW530 | 530 | 2000 | 1190 | 3-10 | 30 | 2500 | 1680*1390*1340 |
| LLW630 | 630 | 1800 | 1140 | 5-15 | 37 | 3500 | 2100*1430*1530 |
| LLW800 | 800 | 1500 | 1000 | 8-20 | 55 | 4500 | 2500*2200*1800 |
| LLW1000 | 1000 | 900 | 450 | 10-30 | 75 | 6200 | 3200*2200*2300 |
LLW Screen Worm Centrifuge (Mechanical Gearbox Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Power of Hydraulic Station Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW530Y | 530 | 2000 | 1190 | 3-10 | 30 | 11-18.5 | 2500 | 1680*1390*1340 |
| LLW630Y | 630 | 1800 | 1140 | 5-15 | 37 | 15-30 | 3500 | 2100*1430*1530 |
LLW Screen Worm Centrifuge (Screw Feeding Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW350LX | 350 | 2500 | 1765 | 1-5 | 11 | 1400 | 2300*1180*1000 |
| LLW450LX | 450 | 2500 | 1575 | 2-8 | 22 | 2000 | 2360*1210*1040 |
| LLW530LX | 530 | 2000 | 1190 | 3-10 | 30 | 2800 | 2650*1350*1230 |
| LLW630LX | 630 | 1800 | 1140 | 5-15 | 37 | 4200 | 3050*1580*1400 |
SERVICE WARRANTY
Huada has Long tradition customer service, we always try our best.
An effective service management organization ensures professional and flexible management of any affairs.
Laboratory test - Making laboratory analysis on separation characteristics of the material to provide the basis for type.
Huada has a long tradition of customer service and we always do our best to provide assistance.
An effective service management organization can ensure professional and flexible handling of product application business.
Presale consulting - sales staff and sales engineers provide relevant technical advice specific to demands proposed by customers. Technical experts in application can provide technical support where necessary.
Small batch test - After preliminary type selection, simulation separation test can be carried out for small batch of verification machines to obtain relevant separation data and to provide the basis for separation process section design.
