Stainless Steel 316L Continuous Horizontal Centrifuge 37kW For Sodium Tetraborate
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LLW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Screen Worm Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK |
| High Light: | 316L continuous horizontal centrifuge,centrifugal filtration equipment 37kW,continuous horizontal centrifuge 37kW |
||
Product Description

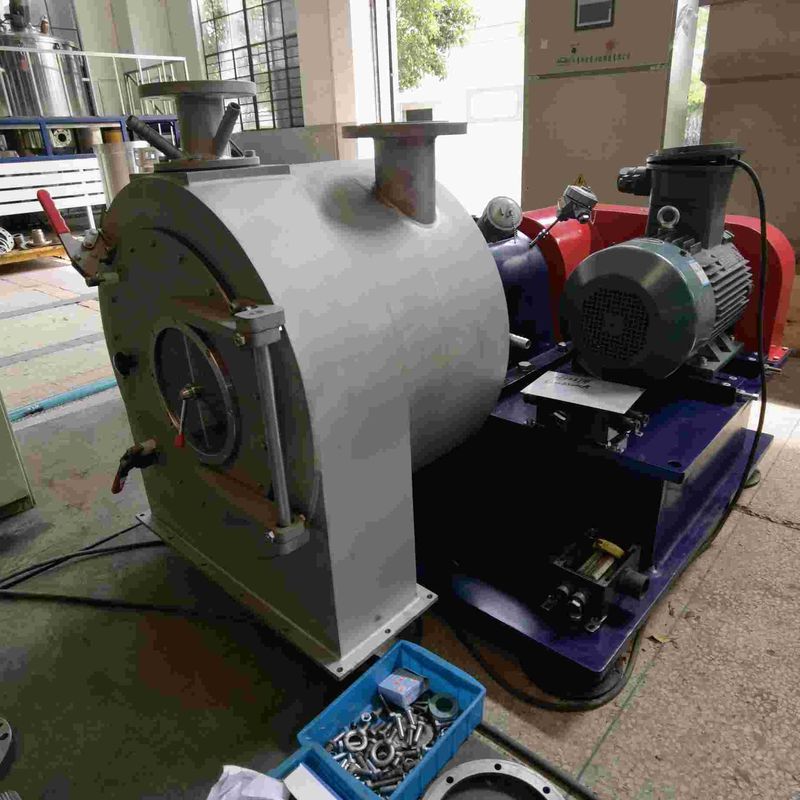

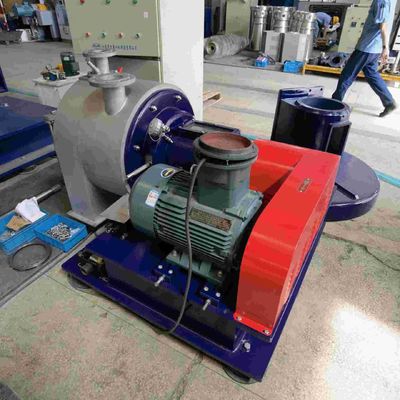

LLW stainless steel 316L Screen Worm Centrifuges Used For Sodium Tetraborate
Descriptions of Centrifugal Solid-liquid Separator
Model LLW series continuous spiral Single Stage Pusher Centrifuge machine is a type of horizontal, spiral discharging filtrating equipment with continuous operation. With the bowl and the helix rotating in the same direction at high speed difference, the material is continuously led, via the feeding pipe, into the inner cylinder of the spiral feeder and, after acceleration, enters the bowl. Under the action of the centrifugal force field, the liquid phase passes through the filtrating medium and is discharging out of the machine, while the solid-phase material is retained inside the bowl and forms the filter residue. Under the combined action of the conic surface component force of the centrifugal force and the spiral feeder, the filter residue continuously moves towards the big end of the bowl and is discharged out of the machine through the discharging trough.
This machine is capable of continuous feeding, separating, washing and discharging during the full-speed running. It has such features as compact structure, small space occupancy, continuous operation, smooth running, strong adaptation, large handing capacity, low moisture content in the filter cake, etc.
It is applicable to the separating of suspension liquid containing the solid-phase material with the granule size greater than 0.1 mm and concentration being 25-75% or the separating of short fibers. It has found wide applications in such industries as chemical, salt making, alkali making, environmental protection, etc. screen centrifuge.
Successful Applications
| Adipic acid | Mirabilite | Pyrazole | AH-Salt | Ammonium persulfate | Gypsum | Silver nitrate | Ammonium phosphate |
| Ammonium sulfate | Ion exchange resin | Sodium chloride | Anthracene | Sodium chlorate | Acetylsalicylic acid | Sodium formate | Manganese sulfate |
| Borax | Methyl collulose (MC) | Calcium formate | Sodium nitrate | Sodium perborate | Sodium phosphate | Citric acid | Sodium sulfate |
| Polystyrene | Polystyrene alcohol | Sodium thiosulfate | Potash (potassium carbonate) | Tartaric acid | Crystallized soda | Potassium vanadium | Trisodium phosphate |
| Potassium bicarbonate | Zinc sulfate | Pentaerythritol | Plastic particles | Ammonium thiosulfate | Sodium metaborate | Copper sulfate | Glacial acetic acid |
| Potassium chloride | Potassium pentasulfide | Potassium phosphate | Potassium sulfate | ...... |
LLW Screen Worm Centrifuge (Mechanical Gearbox Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Power of Hydraulic Station Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW530Y | 530 | 2000 | 1190 | 3-10 | 30 | 11-18.5 | 2500 | 1680*1390*1340 |
| LLW630Y | 630 | 1800 | 1140 | 5-15 | 37 | 15-30 | 3500 | 2100*1430*1530 |
Working concepts
Setting goals, highlighting results, being positive and happy and realizing the value of life; learning culture, innovation culture, quality culture, safety culture, performance culture, love culture
Technological Innovation
Technological innovation is the first driving force for development. Gathering a group of engineers and technicians dedicated to developing filtration and separation technologies, Huada has undertaken many national torch plan projects, key new product projects, key scientific and technological projects, etc., and has won various provincial and municipal awards and honors.
After years of continuous innovation and development, it has researched and developed various types of centrifuge products and complete sets of equipment, and has accumulated rich experience in their application in the chemical engineering, pharmaceuticals, energy, food, environmental protection and other industries.
Technological Strength
Currently, Huada has 10 senior engineers, 45 engineers and 83 engineering technicians, a Jiangsu Provincial Engineering and Technology Research Center and an Equipment Technology Research Institute. It does not only have a powerful technology research center, but also has established long-term technical cooperation with domestic research institutes, universities and other institutions and has served as a practice base for many universities.
R&D Ability
It has successfully developed more than 40 series of products such as PLD, LGZ, PGZ, PSD, PSB, PBZ, PQLD, PQFB, PQFD, GK, GKH, GKF, LW, LLW and LLWZ, and more than 200 models, and has R&D ability for a variety of new products and new technologies each year.
Achievements in Scientific Research
It has 62 national patents for invention, and has presided over and participated in the drafting of many national and industrial standards like Three-column and Four-point Suspension Centrifuges, Screen Worm Centrifuges, Explosion-proof Peeler Centrifuges, Peeler Centrifuges and Decanter Centrifuges.
