Dual Phase Steel 2205 Horizontal Centrifuge Machine ISO For Sodium Metaborate
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 |
| Model Number: | LLW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Screen Worm Centrifuge |
|---|---|---|---|
| Discharge: | Scroll Discharge | Machine Control: | PLC Control |
| MOC: | Stainless Steel | Certificate: | ISO9001 |
| Operate: | Automatic Continuous Operation | Bearing: | NSK |
| High Light: | Steel 2205 horizontal centrifuge machine,Steel 2205 continuous flow centrifuge,horizontal centrifuge machine ISO |
||
Product Description

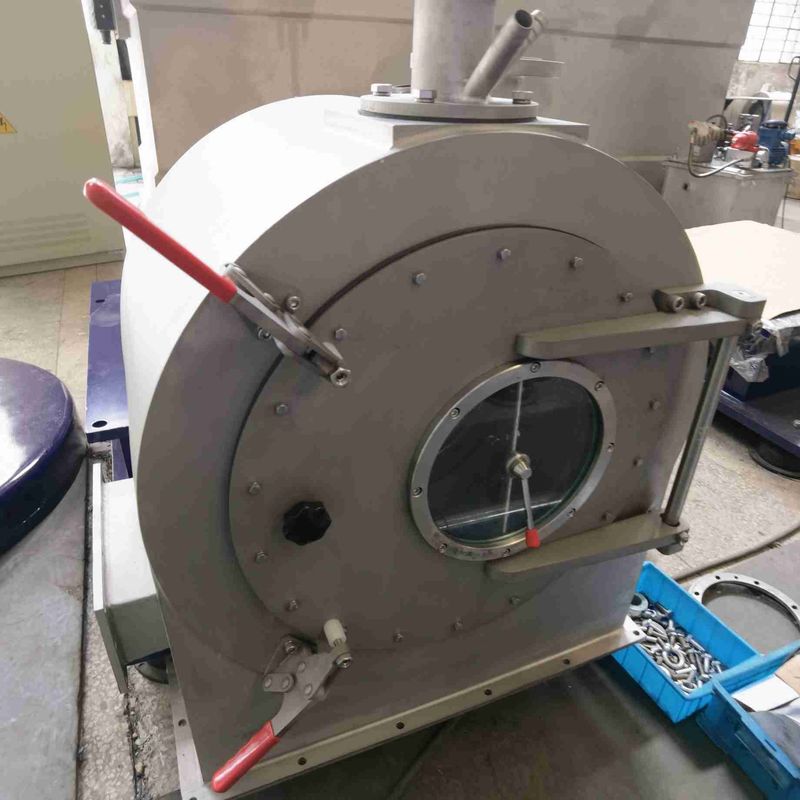

LLW Dual Phase Steel 2205 Screen Worm Centrifuges Used For Sodium Metaborate
LLW Series Horizontal Scroll Discharge Screen Centrifuge
LLW horizontal screen worm centrifuge is the one with low energy consumption, stable performance and good separating effctiveness. The separation processing from feeding to dewatering cleaning and discharging is continuous with high degree of automation. It is the advanced equipment.
The feed suspension is introduced to the centrifuge through a feed pipe and into the feed distribution chamber, and is jetted into the basket through the hole rear the cone point of the conveyor, under centrifugal force the soilds filtrate from the liquid and settle against the basket wall, while the clarified liquid exits over the overflow screen. The solids in the conical basket are conveyed up from the smaller end to the bigger diameter is, the bigger centrifugal force produces to separate the liquid/solids. The solids are dried when they are drained out the basket.
The washing pipe incorporated in the centrifuge can not only filter the solid cake, but also wash the cake. The thin cake washing achieves good effects of washing and consumes low amount of washing liquid.
A steam pipe may be provided on the back of the basket so as to wash the crystallized materials on the back at high temperature.
Gearbox: cycloidal gearbox and hydraulic gearbox so as to suit for separation of different materials.
Successful Applications
| Adipic acid | Mirabilite | Pyrazole | AH-Salt | Ammonium persulfate | Gypsum | Silver nitrate | Ammonium phosphate |
| Ammonium sulfate | Ion exchange resin | Sodium chloride | Anthracene | Sodium chlorate | Acetylsalicylic acid | Sodium formate | Manganese sulfate |
| Borax | Methyl collulose (MC) | Calcium formate | Sodium nitrate | Sodium perborate | Sodium phosphate | Citric acid | Sodium sulfate |
| Polystyrene | Polystyrene alcohol | Sodium thiosulfate | Potash (potassium carbonate) | Tartaric acid | Crystallized soda | Potassium vanadium | Trisodium phosphate |
| Potassium bicarbonate | Zinc sulfate | Pentaerythritol | Plastic particles | Ammonium thiosulfate | Sodium metaborate | Copper sulfate | Glacial acetic acid |
| Potassium chloride | Potassium pentasulfide | Potassium phosphate | Potassium sulfate | ...... |
LLW Screen Worm Centrifuge (Standard Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW320 | 320 | 2630 | 1240 | 0.5-3 | 7.5 | 700 | 1050*1350*1000 |
| LLW350 | 350 | 3000 | 1765 | 1-5 | 11 | 1200 | 1520*1380*1190 |
| LLW450 | 450 | 2500 | 1575 | 2-8 | 22 | 1700 | 1570*1240*1200 |
| LLW530 | 530 | 2000 | 1190 | 3-10 | 30 | 2500 | 1680*1390*1340 |
| LLW630 | 630 | 1800 | 1140 | 5-15 | 37 | 3500 | 2100*1430*1530 |
| LLW800 | 800 | 1500 | 1000 | 8-20 | 55 | 4500 | 2500*2200*1800 |
| LLW1000 | 1000 | 900 | 450 | 10-30 | 75 | 6200 | 3200*2200*2300 |
LLW Screen Worm Centrifuge (Mechanical Gearbox Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Power of Hydraulic Station Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW530Y | 530 | 2000 | 1190 | 3-10 | 30 | 11-18.5 | 2500 | 1680*1390*1340 |
| LLW630Y | 630 | 1800 | 1140 | 5-15 | 37 | 15-30 | 3500 | 2100*1430*1530 |
LLW Screen Worm Centrifuge (Screw Feeding Type)
Technical Parameters
| Model | Bowl Diameter (mm) | Speed (r/min) | Separation Factor | Capacity(m³/h) | Power of Driving Motor (kW) | Weight (kg) | Dimension (L×W×H) (mm) |
| LLW350LX | 350 | 2500 | 1765 | 1-5 | 11 | 1400 | 2300*1180*1000 |
| LLW450LX | 450 | 2500 | 1575 | 2-8 | 22 | 2000 | 2360*1210*1040 |
| LLW530LX | 530 | 2000 | 1190 | 3-10 | 30 | 2800 | 2650*1350*1230 |
| LLW630LX | 630 | 1800 | 1140 | 5-15 | 37 | 4200 | 3050*1580*1400 |
