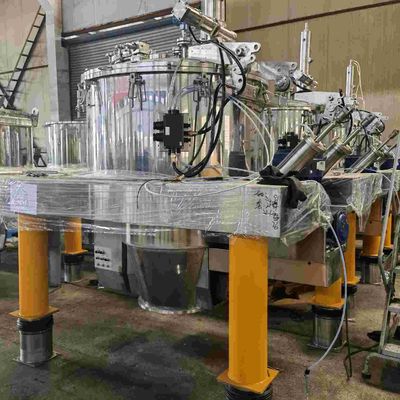

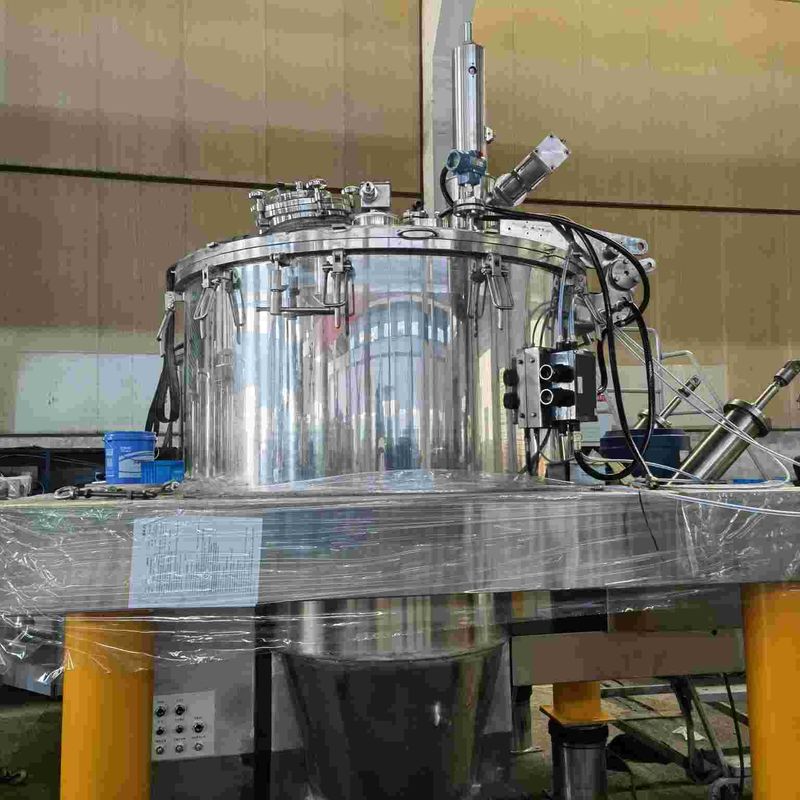

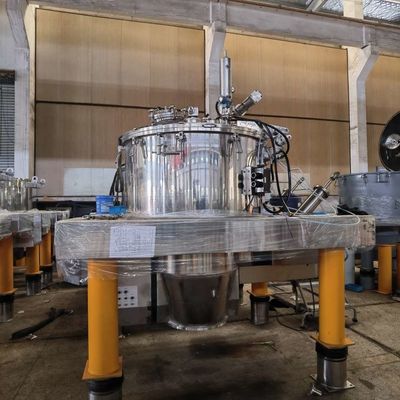

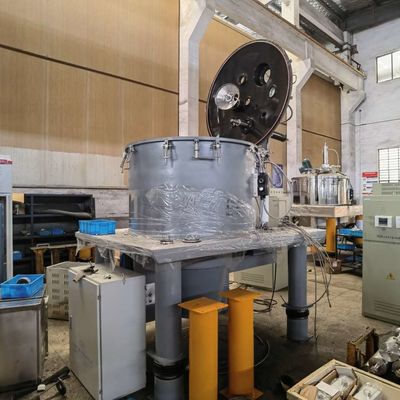

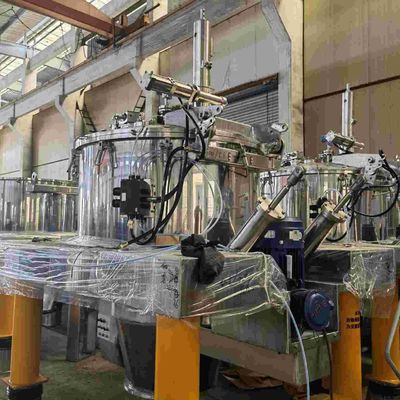

570mm Basket Centrifuge Machine 230kg Bottom Discharge Scraper
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015, 01418P10003R2M |
| Model Number: | PLD1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Scraper Centrifuge |
|---|---|---|---|
| Diacharge: | Scraper Bottom Discharge With Bag Pulling | Operate: | Automatic Batch Operate |
| Effective Basket Height(mm): | 570 | Screen Touch: | Optional |
| Speed Control: | Frequency Converter | MOC: | Stainless Steel |
| Certificate: | ISO9001 | Max. Capacity(kg): | 230 |
| High Light: | 570mm Basket Centrifuge Machine,570mm chemistry centrifuge,Basket Centrifuge Machine 230kg |
||
Product Description
570mm Effective Basket Height Bottom Discharge Scraper Chemistry Separating Centrifuges
Working Principle
Materials to be separated are added into the high-speed rotating centrifuge basket through the feeding pipe. Under the action of the centrifugal field, the material will be filtered through the filter cloth, the liquid phase will be discharged through the liquid outlet, and the solid phase will be retained in the basket. When the basket is filled with materials and the feeding and dehydration stop, wash the cake and filter out the washing liquid. The centrifuge continues to spinning to dry the filter cake. After the cake meets the separation requirements, the centrifuge slows down and the scraper removes the cake from the bottom and out of the machine. Then, the centrifuge slows down again and the pneumatic bag puller moves up and down to shake off the residual cake, so as to completely remove the cake.
Technical Parameters
| Items | Model | |
| PLD1000 | ||
| Basket Diameter(mm) | 1000 | |
| Effective Basket Height(mm) | 570 | |
| Basket Volume(L) | 190 | |
| Max. Capacity(kg) | 230 | |
| Motor Power(kw) | 15 | |
| Max. Speed(r/min) | 1100/1200 | |
| Max. Separation Factor | 678/805 | |
| Weight(kg) | Platform construction | 3500 |
| Square box structure | 4000 | |
Huada has a large number of engineers and technical personnel who account for over one third of total number of employee. It owns an engineering technology research center of Jiangsu Province and establishes multiple professional teams of technical research and development, technical application, process design, inspection and testing, lean production management, etc. and we have made great achievements.
We have successfully developed multiple new products and technologies having proprietary intellectual property rights and, national invention patent which include vertical pull-bag automatic discharge centrifuges, horizontal preconcentration filtering centrifuge, intelligent remote control system technology and so on, as well as obtained good market application; we have resolved difficult problems on filtration and separation for users. By using our experience, for customers personalized requirements, we can design practical and feasible technical schemes on separation tailored for customers; also, full consideration is given to improvement of working environment. Design idea of automation and humanization is always implemented in the process of design and manufacturing.
We believe that we are not only stronger than others to some extent in terms of service, quality and reliability, but more importantly we are good at listening to opinions of customers. We are in favour of an important principle: ”Open to customers”. We carry out optimum design and modular design of centrifuges, to improve the versatility of parts and to facilitate industrialized production; establish parts processing line and assembly line with professional division of labor and process refinement, mould, NC processing technology, etc according to process characteristics; and establish lean production management system, to ensure product quality and production cycle.
