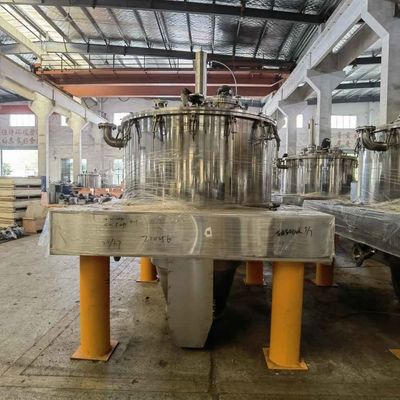

800L Pull-Bag Bottom Discharge Scraper Automatic Batch Operate Centrifuge For Active Pharmaceutical Ingredients
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015, 01418P10003R2M |
| Model Number: | PLD1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Scraper Centrifuge |
|---|---|---|---|
| Basket Volume(L): | 800/750 | Operate: | Automatic Batch Operate |
| Control: | PLC Control | Weight(kg): | 12000 |
| Speed Control: | Frequency Converter | Max. Separation Factor: | 647/987 |
| Certificate: | ISO9001 | Application: | Industrial Centrifuge |
Product Description
Main Features
- Cake removal rate higher than 99%
- The filter bag is designed with a renewable structure and it can well remove the residual cake, avoiding cross contamination of materials. Moreover, it can improve the filtering efficiency and prolong the service life of the filter bag.
- Compliance with GMP specifications and anti-explosion requirements
- The structure of a large turnover cover or overall turnover cover + CIP online cleaning system can achieve thorough cleaning in centrifuges.
Technical Parameters
| Items | Model | |
| PLD1600 | ||
| Basket Diameter(mm) | 1600 | |
| Effective Basket Height(mm) | 900 | |
| Basket Volume(L) | 800/750 | |
| Max. Capacity(kg) | 1000 | |
| Motor Power(kw) | 37/55 | |
| Max. Speed(r/min) | 850/1050 | |
| Max. Separation Factor | 647/987 | |
| Weight(kg) | Platform construction | 12000 |
| Square box structure | ||
Huada currently has two production bases, covers floor area of 100000 square meters and plan area of 45000 square meters, as well as owns more than 500 sets of various mechanical processing equipment among which there are over 50 sets of numerical control equipment and more than 100 sets of various testing equipment.
Due to the working characteristic of centrifuges, customers attach great importance to safety of centrifuges in use. As a manufacturer, we do not dare to take it lightly. Centrifuge safety performance is fully controlled in the process of design and manufacture. Each link in design calculation, production process control, test and inspection operates as per procedure to minimize remaining risk.
Our business philosophy is scientific and reasonable design, more perfect manufacturing, professional and standard service. We will provide service to our customers with constant technical innovation, perfect products and professional experience in application.
In 2015, Huada become a wholly-owned holding company of Scimee Sci.& Tech. Co., Ltd. As a public company, Huada will gain greater market development opportunities, more human resources and scientific research investment, more standardized management and better development on the platform of Scimee.
Scimee Sci.& Tech. Co., Ltd. (stock abbreviation: Scimee. Stock code: 300425) focuses on development and application of magnetic separation water purification technology and is the largest domestic magnetic separation water purification equipment manufacturing enterprise. Based on magnetic separation water purification technology, in light of biochemical treatment technology, biological- ecological water repair technology, membrane technology and other applicable technology in sewage treatment area, our business covers the whole process of integrated services of industrial and municipal water treatment project including investment and financing, consulting assessment, scheme design, equipment integration, construction and operation management and we become a provider of whole water treatment solution and comprehensive environmental services.
