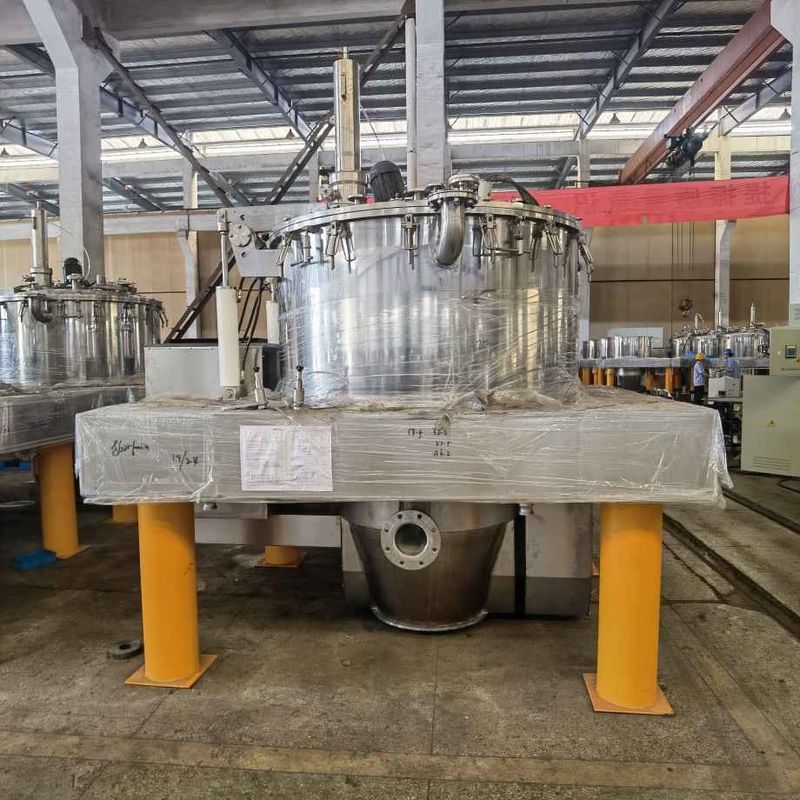

Food Grade Automatic Vertical Foodstuff Processing Frequency Converter Scraper Discharge Basket Centrifuge
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015, 01418P10003R2M |
| Model Number: | PLD1800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Effective Basket Height(mm): | 1100 |
|---|---|---|---|
| Diacharge: | Scraper Bottom Discharge With Bag Pulling | Basket Volume(L): | 1250 |
| Control: | PLC Control | Motor Power(kw): | 55 |
| Speed Control: | Frequency Converter | MOC: | Stainless Steel |
| Certificate: | ISO9001 | Application: | Industrial Centrifuge |
Product Description
Main Features
- The high surface cleanliness and roughness up to Ra0.2-0.4μm are in line with cGMP requirements.
- Smooth discharge: Automatic scraper device has the functions of speed regulation and pitch adjustment, and the scraper is designed with multi-structures, including double-blade (wear-resistant: carbide tip, wear-resistant coating, etc.). The cutting angle has been improved, with smaller scraping resistance, and the layered scraping technique shall be selected for hard materials.
- Small vibration, low noise and stable operation: The liquid damping shock absorber technology is adopted, and it is installed without base, which effectively reduces the vibration of the centrifuge and facilitates the installation and maintenance of the machine.
- Frame square box design: The chassis weight is increased, the centrifuge center of gravity is lowered, and the vibration speed is reduced.
- The cake layer control device and electromechanical material level detection device are provided to effectively control the feeding amount, prevent the centrifuge from overload work, prevent the material from escaping, and ensure the automatic operation of the feeding process.
Technical Parameters
| Items | Model | |
| PLD1800 | ||
| Basket Diameter(mm) | 1800 | |
| Effective Basket Height(mm) | 1100 | |
| Basket Volume(L) | 1250 | |
| Max. Capacity(kg) | 1500 | |
| Motor Power(kw) | 55 | |
| Max. Speed(r/min) | 800 | |
| Max. Separation Factor | 645 | |
| Weight(kg) | Platform construction | 17000 |
| Square box structure | ||
Anti-corrosion
The materials to be separated are normally corrosive. So for safety, the parts in contact with these corrosive materials must be anti-corrosive.
Material of constructions: 304, 321, 316L, 904L, TA, 2205, 2507etc.
When there is determined application experience or corrosion data, carry out coupon test and laboratory verification to ensure selected material meet anti-corrosion requirements.
Surface anti-corrosion treatment: PE lined, rubber lined and halar lined and F40, F46, PFA etc.
Anti-corrosion requirements of sealing elements can not be neglected; material of sealing elements shall ensure prevention against corrosion from acids, alkali and solvents.
The customer shall forward the physical and chemical properties of the material and washing liquid (chemical properties and separation temperature etc.) to the manufacturer so that it can make recommendations for centrifuge materials based on characteristics of the separation medium, and that the suitable seal ring, seal washer and filter cloth can be provided, thus ensuring anti-corrosion requirements on the centrifuge.
Explosion-proof
If the centrifuge works in the environment, where there are some explosive substances, the centrifuge should be explosion-proof. If the centrifuge becomes really explosion-proof, it should take a variety of measures in mechanical, electrical control and the accessories selection.
Electric control: explosion-proof isolator, non-touch dynamic braking system, static grounding and explosion-proof automatic control.
Mechanical system: explosion-proof motor, explosion-proof light, anti-collision and anti-static driving belt.
Explosion-proof accessories: nitrogen protection system, on-site explosion-proof control button.
Therefore, for those environments required explosion-proof, users can specify the filtration medium, requirement and degree of explosion-proof when they take orders, in order to buy the right equipment to meet the requirements of explosion-proof.
Refer to Application Technology of Centrifuge in Explosion Proof Site P103.
