Hydraulic Control 1250kg Industrial Centrifugal Separator 1000L
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | LGZ1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 80 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Weight(kg): | 12000 | Cover Opening: | Hydraulic Control |
|---|---|---|---|
| Machine Control: | PLC Control | Max. Separation Factor: | 647 |
| Max. Capacity(kg): | 1000/1250 | Discharge Type: | Scraper Bottom Discharge |
| Basket Volume(L): | 800/1000 | Rotating Speed Control: | Frequency Converter |
| High Light: | 1250kg industrial centrifugal separator,1000L centrifugal separator food industry,industrial centrifugal separator 1000L |
||
Product Description

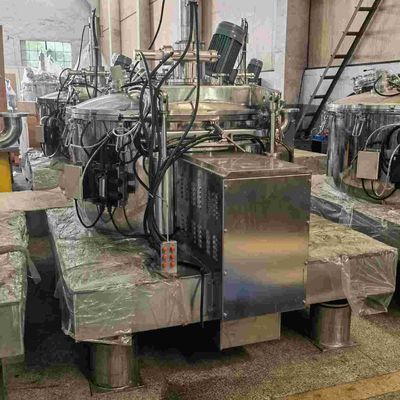

LGZ1600 Hydraulic control Automatic Platform Base Bottom Discharge Scraper Fiber Separation Centrifugal Separator
Main advantages
The CIP online cleaning system is configured to conduct thorough cleaning and disinfection inside the machine to prevent cross contamination.
The fully-enclosed structure prevents the material from being contaminated, and achieves the nitrogen filling protection of the machine chamber, bearing seat, scraper chamber and distribution chamber.
The feeding system with inclined feeding and cake layer control device is adopted to control the distribution and make it uniform, and realize automatic control.
Independent transmission assembly is convenient for assembly/disassembly, and a double seal of labyrinth and oil seal is applied between spindle and basket to make spindle completely isolated from corrosive gas.
Technical Parameters
| Items | Models | |
| LGZ1600 | ||
| Basket Diameter(mm) | 1600 | |
| Effective Basket Height(mm) | 800/1000 | |
| Basket Volume(L) | 800/1000 | |
| Max. Capacity(kg) | 1000/1250 | |
| Motor Power(kw) | 37/45 | |
| Max. Speed(r/min) | 850 | |
| Max. Separation Factor | 647 | |
| Weight(kg) | Platform construction | 12000 |
| Square box structure | 13000 | |
Anti-corrosion
The materials to be separated are normally corrosive. So for safety, the parts in contact with these corrosive materials must be anti-corrosive.
Material of constructions: 304, 321, 316L, 904L, TA, 2205, 2507etc.
When there is determined application experience or corrosion data, carry out coupon test and laboratory verification to ensure selected material meet anti-corrosion requirements.
Surface anti-corrosion treatment: PE lined, rubber lined and halar lined and F40, F46, PFA etc.
Anti-corrosion requirements of sealing elements can not be neglected; material of sealing elements shall ensure prevention against corrosion from acids, alkali and solvents.
The customer shall forward the physical and chemical properties of the material and washing liquid (chemical properties and separation temperature etc.) to the manufacturer so that it can make recommendations for centrifuge materials based on characteristics of the separation medium, and that the suitable seal ring, seal washer and filter cloth can be provided, thus ensuring anti-corrosion requirements on the centrifuge.
Explosion-proof
If the centrifuge works in the environment, where there are some explosive substances, the centrifuge should be explosion-proof. If the centrifuge becomes really explosion-proof, it should take a variety of measures in mechanical, electrical control and the accessories selection.
Electric control: explosion-proof isolator, non-touch dynamic braking system, static grounding and explosion-proof automatic control.
Mechanical system: explosion-proof motor, explosion-proof light, anti-collision and anti-static driving belt.
Explosion-proof accessories: nitrogen protection system, on-site explosion-proof control button.
Therefore, for those environments required explosion-proof, users can specify the filtration medium, requirement and degree of explosion-proof when they take orders, in order to buy the right equipment to meet the requirements of explosion-proof.
Refer to Application Technology of Centrifuge in Explosion Proof Site P103.
