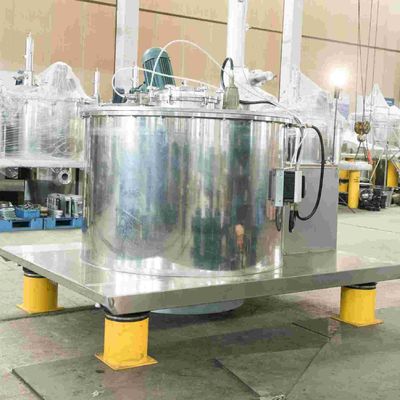

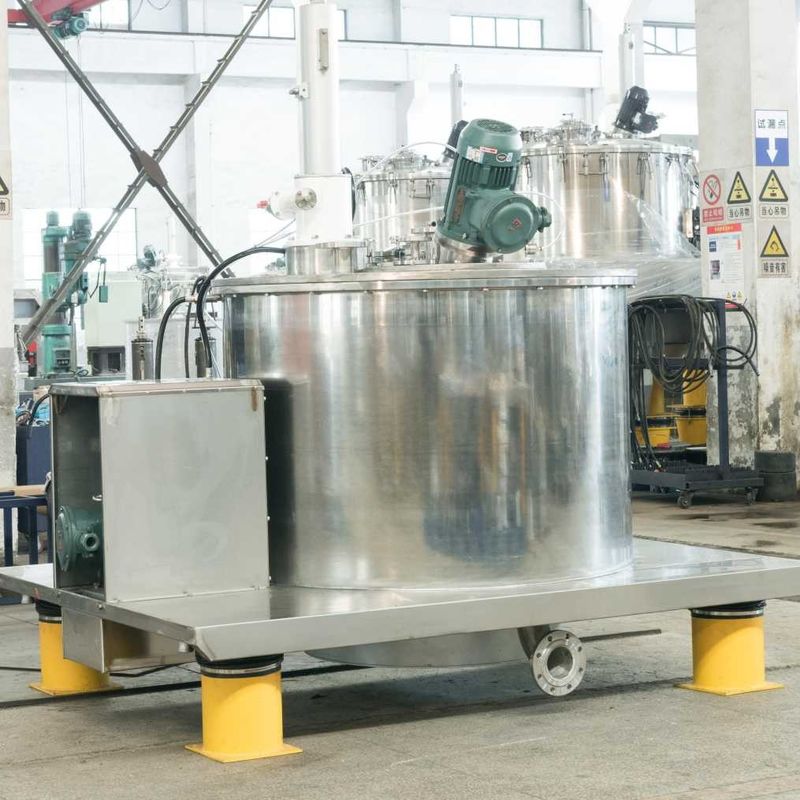

ISO9001 Bottom Discharge Centrifuge 1200rpm Mining Concentration Basket Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PGZ800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Discharge: | Scraper Bottom Discharge | Basket Volume(L): | 100 |
| Machine Control: | PLC Control | Max. Separation Factor: | 645/1007 |
| Motor Start Control: | Frequency Control | CIP System: | Optional |
| High Light: | ISO9001Bottom Discharge Centrifuge,1200rpm basket type centrifuge,Bottom Discharge Centrifuge 1200rpm |
||
Product Description
PGZ ISO9001 Automatic Scraper Mining Concentration Basket Separation Frequency Control Separation Equipment
PGZ series of products, with the advantages of LGZ products, is designed with fixed cover, suitable for the separation of toxic, volatile, inflammable and explosive materials.
Technical Parameters
| Items | Models | |
| PGZ800 | ||
| Basket Diameter(mm) | 800 | |
| Effective Basket Height(mm) | 420 | |
| Basket Volume(L) | 100 | |
| Max. Capacity(kg) | 135 | |
| Motor Power(kw) | 7.5/11 | |
| Max. Speed(r/min) | 1200/1500 | |
| Max. Separation Factor | 645/1007 | |
| Weight(kg) | Platform construction | 2000 |
| Square box structure | ||
Features and Specifications
1) Suitable for separating suspensions with solid grains larger than 0.01mm
2) Widely used in chemical, pharmaceutical, food, light industry and other trades
3) Most commonly used for gypsum, ferric sulfate, nickel sulphate, copper sulphate,potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides,insecticides and dewatering of copper, zinc, aluminum and other mineral powders.
Working Principles
1) PGZ series centrifugal machine is a kind of filtering equipment adopting scraper bottom-unloading and interval operation
2) The material enters the rotary drum from the upper
3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary drum
4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine
5) Advantages: steady operation, convenient operation
6) Can set operation program according to demands, auto finishes feeding material,separating, dewatering, unloading and other processes
7) Can carry out long-distance operation
8) High automation level, large handing capacity and good separation result
9) No base installation
TECHNOLOGICAL INNOVATION
Focus – Huada focuses on research and development, manufacture and application of filtration and separation technology.
Over 20 years , Huada Ltd. has been considering technological innovations as one of the corporate strategies. We have recruited a group of talented engineers and technicians professional in filtration and separation technology to research and develop the centrifuges with better separation efficiency, lower energy consumption, better convenient operation, higher reliability and closer focus on the separating materials. In addition , working environment, automation and individualization are always taken into account throughout the course of design and manufacturing we still keep continual summarizing our experience, and continually change and improve our design in order to optimize our products.
Professional - Establishing up professional teams on technology research and development , technology application , process design , inspection and tesing
Filtration and separation technique is a specialized technology, it takes quite long time from theory research, technical design, trial manufacturing, testing, approval to practical application. To a large extent, Huada benefits from “being advanced”. i.e. being more advanced than users and competitors in the same Industry. When users have higher requirements, we have already done some research or have better solutions. We deeply know that it is the most important matter to guarantee the safety of centrifuge, it is the base for trust and cooperation. By learning the advanced technology abroad Huada has been developing a number of patented new technologies. Currently, Huada has owned more than 100 patents. These technologies have been soon applied. We have formed a healthy cycle from R&D to marketing and innovation.
Separation technology is one of the most important steps in the process of industrial production. It is a vital step to separate solid matters from the liquid in numerous industrial productions. With the rapid development in chemistry and pharmacy, separation technology is improving as well and completely different from the simple and poor one in the past. It highly demands safety performance, the performance of separation, working environment, automation and reliability of the centrifuge, for instance, when it works in the environment with explosive-proof, tiny material separation, separation of highly adhesive materials, high purity demands, full automatic control, unmanned attention and remote monitoring. In response to the market and customers’ needs, our technicians will customize the design and separation techniques for customers. Meanwhile, when it comes to design and manufacturing,
As we are professional we can achieve your needs.
Leading - Becoming industrial benchmark through continuous research and development and accumulation of application technologies
In recent years, Huada has developed a number of new product and new technologies:
- Vertical bag-pulling bottom discharge centrifuge obtaining national invention patent
- Horizontal thickening and filtration centrifuge
- Intelligent remote control system technology
- Residual filter cake removal technology
- CIP technology
- Centrifuge explosion-proof application technology
- New generation of inert gas protection (explosion-proof) device
- Sludge dewatering and drying system
- Filtration and separation process design and supporting technology
- Drilling mud separation process technology
We don't just satisfy that the centrifuges can meet the separation requirements, but we pay more attention to other issues of how to reduce materials remained in the machines, increase processing output, reduce damage to the solid particles, lower energy consumption, reduce maintenance costs, improve working environment and reliability. We conduct research and development of system integration technology and intelligent control technology, to provide customers with separation machinery and equipment which is safer, more intelligent, better in performance, environment-friendly and energy saving.
As a member of technical committee for standardization for China’s separation machinery, we have held revision of several industrial standards: GB/T 19815 Centrifuge Safety Requirements, JB/T 10769.1－2007 Types and Basic parameters of Three-column and plate Centrifuges, JB/T 8652－2008 Spiral Discharge Filtering Centrifuges and JB/T 5284-2010 Explosion-proof Peeler Centrifuge.
In 1998. our products passed national machinery safety certification, and reexamination is conducted each year. We have undertaken a number of national torch plan projects, key new product, technology-based small and mid-sized enterprise innovation fund projects. The accumulation of continuous research and development and application technology, become the industry benchmark. We are becoming industrial benchmark through continuous research and development and accumulation of application technologies.
