PGZ Automatic Sedimentation Bottom Discharge Scraper Convenient Centrifugal Machines For Chemistry Separation
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PGZ1400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, , Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Centrifugal Type: | Basket Centrifuge |
|---|---|---|---|
| Basket Volume(L): | 600 | Operation: | Automatic Batch Centrifuge |
| Machine Control: | PLC Control | Screen Touch: | Optional |
| Motor Start Control: | Frequency Control | Motor Power(kw): | 30/37 |
Product Description

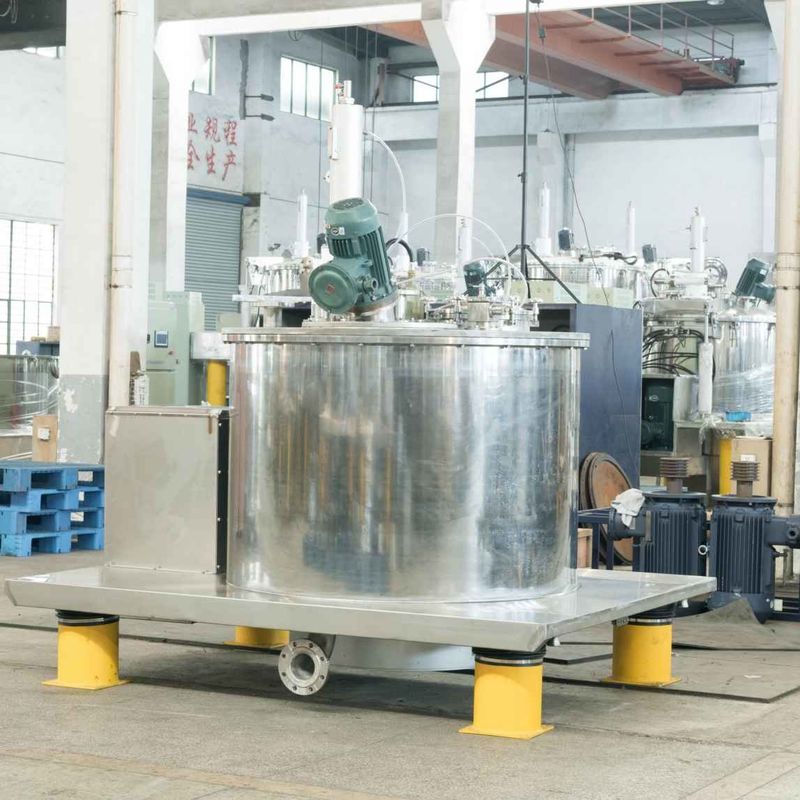

PGZ1400 Automatic Sedimentation Bottom Discharge Scraper Convenient Centrifugal Machines For Chemistry Separation
Working Principle
PGZ series centrifuge is a type of centrifugal separation machinery with high scientific content, and several configuration options are available. Featuring asepsis, sanitation, enclosed explosion-proof, multiple safety protections and several configuration options, this series centrifuge is controlled by a fully-automatic program, and has been widely used in such industries as pharmacy, fine chemistry and food.
Technical Parameters
| Items | Models | |
| PGZ1400 | ||
| Basket Diameter(mm) | 1400 | |
| Effective Basket Height(mm) | 750 | |
| Basket Volume(L) | 600 | |
| Max. Capacity(kg) | 700 | |
| Motor Power(kw) | 30/37 | |
| Max. Speed(r/min) | 950/1150 | |
| Max. Separation Factor | 700/1036 | |
| Weight(kg) | Platform construction | 9000 |
| Square box structure | ||
Regeneration of Filter Cloth
Filtration practice shows that life cycle of filter cloth is not determined by worn condition of filter cloth usually but by the blocked or contaminated speed. Thus, how to prevent or relieve the blockage of filter cloth and how to regenerate the blocked filter cloth is a significant issue for daily maintenance of filter cloth.
With the increasing times of filtration of filter cloth, it is inevitable for the filter cloth to be blocked. However, blockage of filter cloth not only is related to its material and structure of filter cloth but also the particle making and viscosity and other relevant factors of filtered material. Reasonable selection of type (materials, weaving method) and mesh number of filter cloth is a relatively effective method to relieve blockage of filter cloth.
After filter cloth is used for a certain period and when blockage of filter cloth is not very serious, the filter cloth shall be cleaned with washing device of centrifuge, and the cleaning period shall be determined in the practical application process. In normal case, the cleaning period shall not be more than 8 filtration cycles and for the specific material, the specially prepared cleaning agent for filter cloth can be used for cleaning (three- way conversion can be arranged on the sluicing pipe and the outlet of mother liquid.)
After filter cloth is cleaned and when filtration performance still is significantly reduced or filter cloth is hardened, it shows that blockage of filter cloth is very serious and then the filter cloth needs to be taken down and to be cleaned after being soaked in medical cleaning gent.
Degradation of filtration performance of filter cloth means extension of filtering and washing time and degradation of washing effect and at the same time, it means the increase of moisture content of filter cake, reduction of production, instable product quality and increase of production costs. Thus, the formulation of corresponding regeneration period and maintenance of filtration performance of filter cloth are very important.
Company profile
Huada is a member of Technical Committee for Standardization of Chinese Separation Machinery, a vice president of Separation Machinery Branch of China General Machinery Association, a drafter of national and industrial standards on centrifuges, a high-tech enterprise in Jiangsu Province and a key high-tech enterprise for national torch plan. In 1998, our centrifuges acquired national safety certification. Huada is one of enterprises in domestic filtration and separation machinery industry which is the largest in scale, the most complete in product varieties and series, the most competitive and the most influential.
Huada has a large number of engineers and technical personnel who account for over one third of total number of employee. It owns an engineering technology research center of Jiangsu Province and establishes multiple professional teams of technical research and development, technical application, process design, inspection and testing, lean production management, etc. and we have made great achievements. We have successfully developed multiple new products and technologies having proprietary intellectual property rights and, national invention patent which include vertical pull-bag automatic discharge centrifuges, horizontal preconcentration filtering centrifuge, intelligent remote control system technology and so on, as well as obtained good market application; we have resolved difficult problems on filtration and separation for users. By using our experience, for customers personalized requirements, we can design practical and feasible technical schemes on separation tailored for customers; also, full consideration is given to improvement of working environment. Design idea of automation and humanization is always implemented in the process of design and manufacturing. We believe that we are not only stronger than others to some extent in terms of service, quality and reliability, but more importantly we are good at listening to opinions of customers. We are in favour of an important principle: ”Open to customers”. We carry out optimum design and modular design of centrifuges, to improve the versatility of parts and to facilitate industrialized production; establish parts processing line and assembly line with professional division of labor and process refinement, mould, NC processing technology, etc according to process characteristics; and establish lean production management system, to ensure product quality and production cycle.
