450L Stainless Steel Centrifuge 970rpm For Agricultural Chemicals
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 70 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Centrifugal Type: | Basket Centrifuge | Discharge: | Scraper Bottom Discharge |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Effective Basket Height(mm): | 800 |
| Machine Control: | PLC Control | Basket Volume(L): | 450 |
| Max. Capacity(kg): | 560 | MOC: | Stainless Steel |
| High Light: | 450L Stainless Steel Centrifuge,970rpm centrifugal separator solid liquid,Stainless Steel Centrifuge 970rpm |
||
Product Description

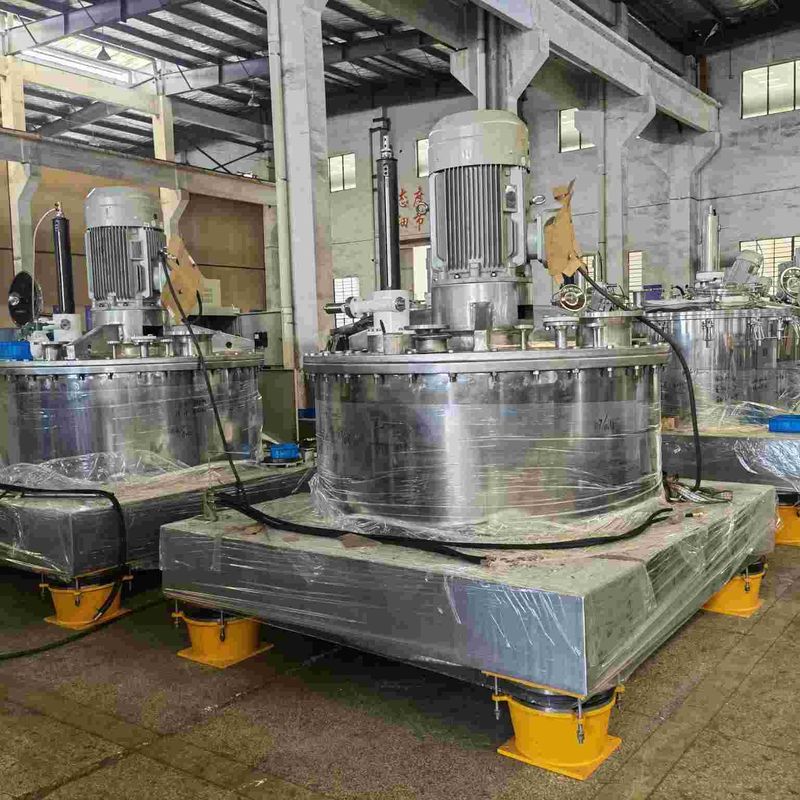

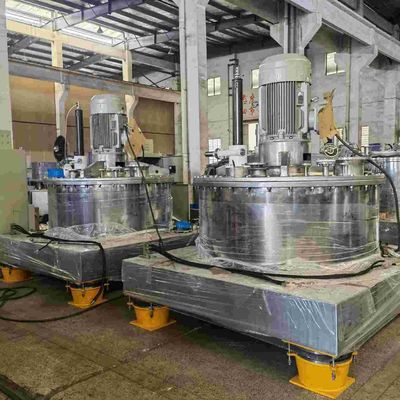

PAUT1250 Stainless steel Top-suspended Bottom Discharge Scraper Centrifuges Used For Agricultural chemicals
Product features
- It is designed with a simple structure, stable and simple operation and excellent damping performance.
- The top-suspended dynamical straight connected structure is adopted, in which, the transmission and the gyration center of the basket are aligned with the machine center, with stable operation.
- It is provided with a square box base + liquid damping shock absorber system, with a low center of gravity and excellent vibration attenuation.
Scope of Application
PAUT series of centrifuges are applicable to washing and solid-liquid separation of suspension media containing solid particles, as well as solid-liquid separation of media containing a crystalline solid phase, which can be widely used.
This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
Technical Parameters
| Items | Models |
| PAUT1250 | |
| Basket Diameter(mm) | 1250 |
| Effective Basket Height(mm) | 800 |
| Basket Volume(L) | 450 |
| Max. Capacity(kg) | 560 |
| Motor Power(kw) | 30 |
| Max. Speed(r/min) | 970 |
| Max. Separation Factor | 658 |
| Dimension(mm) | 2100*2000*2600 |
| Weight(kg) | 5000 |
TECHNOLOGICAL INNOVATION
Professional - Establishing up professional teams on technology research and development , technology application , process design , inspection and tesing
Filtration and separation technique is a specialized technology, it takes quite long time from theory research, technical design, trial manufacturing, testing, approval to practical application. To a large extent, Huada benefits from “being advanced”. i.e. being more advanced than users and competitors in the same Industry.
When users have higher requirements, we have already done some research or have better solutions. We deeply know that it is the most important matter to guarantee the safety of centrifuge, it is the base for trust and cooperation. By learning the advanced technology abroad Huada has been developing a number of patented new technologies.
Currently, Huada has owned more than 100 patents. These technologies have been soon applied. We have formed a healthy cycle from R&D to marketing and innovation.
Separation technology is one of the most important steps in the process of industrial production. It is a vital step to separate solid matters from the liquid in numerous industrial productions. With the rapid development in chemistry and pharmacy, separation technology is improving as well and completely different from the simple and poor one in the past.
It highly demands safety performance, the performance of separation, working environment, automation and reliability of the centrifuge, for instance, when it works in the environment with explosive-proof, tiny material separation, separation of highly adhesive materials, high purity demands, full automatic control, unmanned attention and remote monitoring.
In response to the market and customers’ needs, our technicians will customize the design and separation techniques for customers. Meanwhile, when it comes to design and manufacturing,
As we are professional we can achieve your needs.
Leading - Becoming industrial benchmark through continuous research and development and accumulation of application technologies
In recent years, Huada has developed a number of new product and new technologies:
- Vertical bag-pulling bottom discharge centrifuge obtaining national invention patent
- Horizontal thickening and filtration centrifuge
- Intelligent remote control system technology
- Residual filter cake removal technology
- CIP technology
- Centrifuge explosion-proof application technology
- New generation of inert gas protection (explosion-proof) device
- Sludge dewatering and drying system
- Filtration and separation process design and supporting technology
- Drilling mud separation process technology
We don't just satisfy that the centrifuges can meet the separation requirements, but we pay more attention to other issues of how to reduce materials remained in the machines, increase processing output, reduce damage to the solid particles, lower energy consumption, reduce maintenance costs, improve working environment and reliability.
We conduct research and development of system integration technology and intelligent control technology, to provide customers with separation machinery and equipment which is safer, more intelligent, better in performance, environment-friendly and energy saving.
As a member of technical committee for standardization for China’s separation machinery, we have held revision of several industrial standards: GB/T 19815 Centrifuge Safety Requirements, JB/T 10769.1－2007 Types and Basic parameters of Three-column and plate Centrifuges, JB/T 8652－2008 Spiral Discharge Filtering Centrifuges and JB/T 5284-2010 Explosion-proof Peeler Centrifuge.
In 1998. our products passed national machinery safety certification, and reexamination is conducted each year. We have undertaken a number of national torch plan projects, key new product, technology-based small and mid-sized enterprise innovation fund projects.
The accumulation of continuous research and development and application technology, become the industry benchmark. We are becoming industrial benchmark through continuous research and development and accumulation of application technologies.
