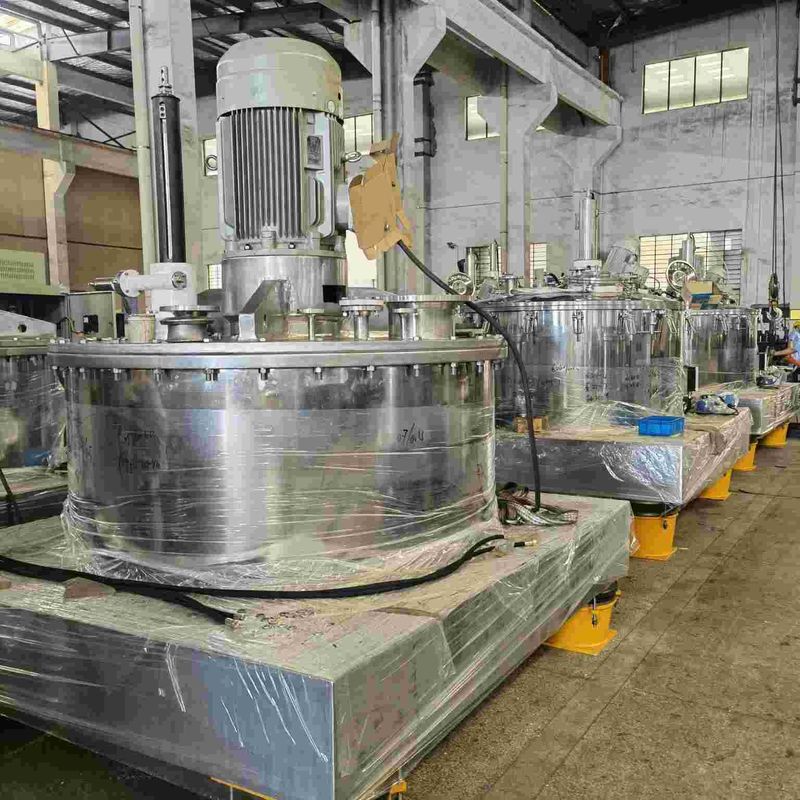

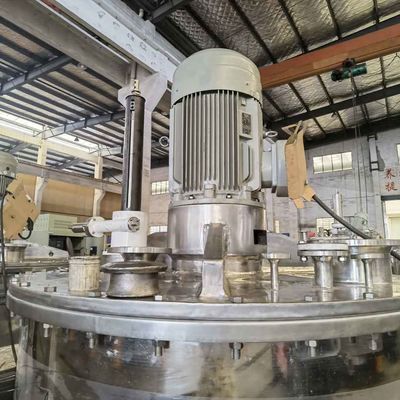

Automatic Brewer'S Yeast Bottom Discharge Centrifuge 970rpm
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-60000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Centrifugal Type: | Basket Centrifuge | Discharge: | Scraper Bottom Discharge |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Operate: | Automatic Batch Operate |
| Machine Control: | PLC Control | Cover Opening: | Hydraulic Control |
| Motor Start Control: | Frequency Converter | MOC: | Stainless Steel |
| High Light: | Brewer'S Yeast Bottom Discharge Centrifuge,970rpm solid liquid centrifuge,Bottom Discharge Centrifuge 970rpm |
||
Product Description
PAUT Automatic Brewer'S Yeast Separating Scraper Bottom Discharge Engineers Service Machinery Overseas Centrifuges
Product features
- An independent bearing seat is adopted, with large bearing span, low center of gravity, large bearing capacity and great operation performance.
- The body is designed with a full load-bearing structure, with high rigidity, simple structure and good appearance.
- The body is designed with a full load-bearing structure, with high rigidity, simple structure and good appearance.
Scope of Application
PAUT series of centrifuges are applicable to washing and solid-liquid separation of suspension media containing solid particles, as well as solid-liquid separation of media containing a crystalline solid phase, which can be widely used.
This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
Technical Parameters
| Items | Models | ||
| PAUT1250 | PAUT1320 | PAUT1600 | |
| Basket Diameter(mm) | 1250 | 1320 | 1600 |
| Effective Basket Height(mm) | 800 | 800 | 1000 |
| Basket Volume(L) | 450 | 490 | 1000 |
| Max. Capacity(kg) | 560 | 620 | 1250 |
| Motor Power(kw) | 30 | 30 | 45 |
| Max. Speed(r/min) | 970 | 900 | 850 |
| Max. Separation Factor | 658 | 600 | 647 |
| Dimension(mm) | 2100*2000*2600 | 2100*2000*2600 | 2700*2350*2900 |
| Weight(kg) | 5000 | 5500 | 10000 |
Company profile
Found in 1993, Jiangsu Huada Centrifuge Co., Ltd. is located at Zhangjiagang City, an emerging port city in China, which is situated in China’s most economically advanced Yangtze River Delta region, with convenient traffic and beautiful environment.
Over 20 years. Huada had always been being devoted to research and development, production and marketing of filtration and separation machinery. With technical innovation as driving force of the enterprise to participate in market competition, we have developed series of centrifuges with high technical content, to meet the market demand; to gain the market by serving customers, we have accumulated extensive experience in application through years of technical research and development and sales application and can provide perfect pre-sale, sale and after-sale service; we ensure product quality with lean management and improve product reliability.
Huada is a member of Technical Committee for Standardization of Chinese Separation Machinery, a vice president of Separation Machinery Branch of China General Machinery Association, a drafter of national and industrial standards on centrifuges, a high-tech enterprise in Jiangsu Province and a key high-tech enterprise for national torch plan. In 1998, our centrifuges acquired national safety certification.
Huada is one of enterprises in domestic filtration and separation machinery industry which is the largest in scale, the most complete in product varieties and series, the most competitive and the most influential.
Huada currently has two production bases, covers floor area of 100000 square meters and plan area of 45000 square meters, as well as owns more than 500 sets of various mechanical processing equipment among which there are over 50 sets of numerical control equipment and more than 100 sets of various testing equipment.
Due to the working characteristic of centrifuges, customers attach great importance to safety of centrifuges in use. As a manufacturer, we do not dare to take it lightly. Centrifuge safety performance is fully controlled in the process of design and manufacture. Each link in design calculation, production process control, test and inspection operates as per procedure to minimize remaining risk.
Our business philosophy is scientific and reasonable design, more perfect manufacturing, professional and standard service. We will provide service to our customers with constant technical innovation, perfect products and professional experience in application.
