Chemical Biodiesel CIP 1000L Large Capacity Centrifuge 850rpm
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-60000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Place Of Origin: | China | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Operate: | Automatic Batch Operate |
| Machine Control: | PLC Control | Warranty: | 1 Year |
| Motor Start Control: | Frequency Converter | MOC: | Stainless Steel |
| High Light: | large capacity centrifuge 850rpm,1000L high capacity centrifuge,1000L large capacity centrifuge |
||
Product Description

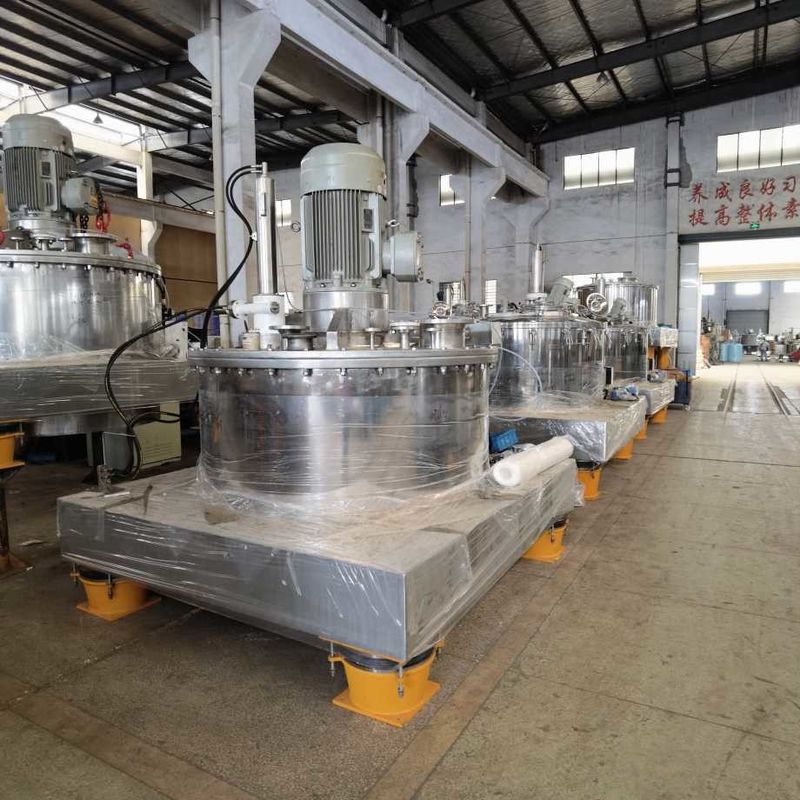

PAUT Large Capacity Batch Inclined Feed Disk Automatic Intermittent Chemical Biodiesel CIP Centrifuges
Product features
- High efficiency and large handling capacity
- Large length-to-diameter ratio and large loading volume
- Wide application of materials
Scope of Application
PAUT series of centrifuges are applicable to washing and solid-liquid separation of suspension media containing solid particles, as well as solid-liquid separation of media containing a crystalline solid phase, which can be widely used. This product is commonly used for the treatment of gypsum, ammonium sulphate, mirabilite, ferric sulphate, copper sulphate, nickel sulphate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, starch, sugar, vitamin, antibiotic, herbicide, insect repellent, copper, zinc, aluminum, acid discharge gypsum, metal refining, sludge after water purification, sludge in sewage, and other kinds of chemicals and pharmaceuticals.
Technical Parameters
| Items | Models | ||
| PAUT1250 | PAUT1320 | PAUT1600 | |
| Basket Diameter(mm) | 1250 | 1320 | 1600 |
| Effective Basket Height(mm) | 800 | 800 | 1000 |
| Basket Volume(L) | 450 | 490 | 1000 |
| Max. Capacity(kg) | 560 | 620 | 1250 |
| Motor Power(kw) | 30 | 30 | 45 |
| Max. Speed(r/min) | 970 | 900 | 850 |
| Max. Separation Factor | 658 | 600 | 647 |
| Dimension(mm) | 2100*2000*2600 | 2100*2000*2600 | 2700*2350*2900 |
| Weight(kg) | 5000 | 5500 | 10000 |
PROCEDURE CONTROL
For every process, whether purchasing, internal parts processing or assembly process, we have established strict quality control requirements. For welding, surface coating, main and key parts processing and general assembly, we have formulated detailed operation and inspection regulations to ensure effective control of each process.
Inspection and validation
A full-time inspector is assigned to every workshop/production line, who is responsible for process tracking and inspection. One centrifuge can have more than 300 control points for inspection and validation set, to ensure that each centrifuge conforms to standard requirements, design requirements and customers’ individual requirements.
ERP system carries on summary and mathematical analysis of inspection data, puts forward improvement scheme and makes continual improvement.
