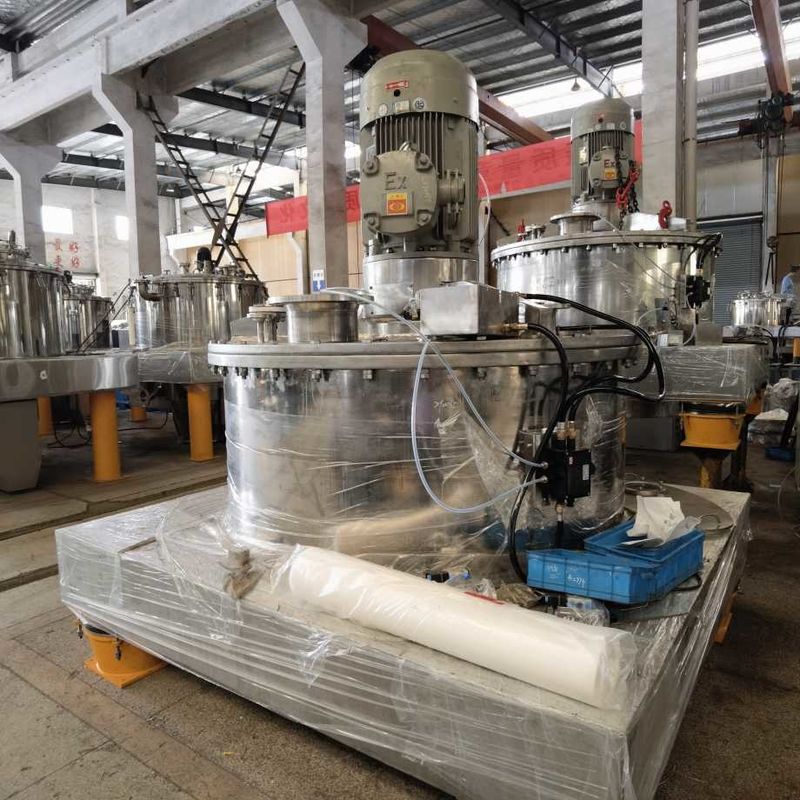

Color Pigments Filtration 30kW Bottom Discharge Centrifuge 850rpm
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-60000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Voltage: | 220v/300v/380v/optional | Discharge: | Scraper Bottom Discharge |
|---|---|---|---|
| Condition: | New | Operate: | Automatic Batch Operate |
| Place Of Origin: | China | Cover Opening: | Hydraulic Control |
| Motor Start Control: | Frequency Converter | MOC: | Stainless Steel |
| High Light: | 30kW Bottom Discharge Centrifuge,1000L large scale centrifuge,Bottom Discharge Centrifuge 850rpm |
||
Product Description
PAUT GMP Required Easy To Operate Color Pigments Filtration Engineers Service Machinery Overseas Equipment Centrifuge
Product features
- Multiple safety protection + non-polar layered scraping control
- Explosion-proof, anti-corrosion and anti-pollution
- It has a fully enclosed structure, and the motor and spindle are directly connected, without belt transmission or environmental pollution due to friction dust.

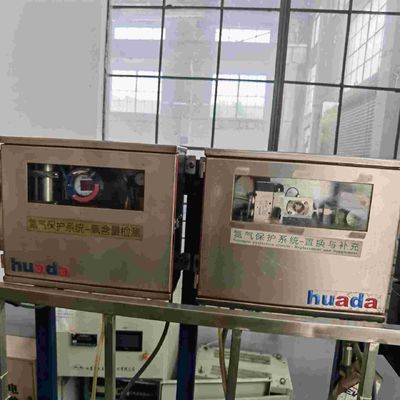

- Nitrogen protection device can be configured for explosion-proof applications.
- Anti-corrosion alloy material and coating treatment can be adopted.
Technical Parameters
| Items | Models | ||
| PAUT1250 | PAUT1320 | PAUT1600 | |
| Basket Diameter(mm) | 1250 | 1320 | 1600 |
| Effective Basket Height(mm) | 800 | 800 | 1000 |
| Basket Volume(L) | 450 | 490 | 1000 |
| Max. Capacity(kg) | 560 | 620 | 1250 |
| Motor Power(kw) | 30 | 30 | 45 |
| Max. Speed(r/min) | 970 | 900 | 850 |
| Max. Separation Factor | 658 | 600 | 647 |
| Dimension(mm) | 2100*2000*2600 | 2100*2000*2600 | 2700*2350*2900 |
| Weight(kg) | 5000 | 5500 | 10000 |
Concentrated
Jiangsu Huada Centrifuge Co., Ltd., a subsidiary of SCIMEE (stock code: 300425), was established in 1993 in Zhangjiagang, an emerging port city in China. It is a leading domestic centrifuge manufacturer. Over the years, it has always focused on the research and development, production and sales of filtration and separation machinery, and has insisted on building an open and win-win cooperation system to lead the industry with scientific and reasonable technological innovation, win the market with specialized and standardized customer service, guarantee quality with excellent management and provide solutions to the solid-liquid separation problems for each customer with concentrated attention.
Specialized
In response to the individual needs of customers, it integrates automation and humanized design in the design and manufacturing process based on its experience, and provides customers with practical and feasible separation technical solutions and products by optimizing the centrifuge technologies and modular design.
Innovative
Huada holds a dominant position in the domestic centrifuge market, which to a great extent is attributed to its leading role (leading both users and peers). Although it has a number of new products and new technologies, it is not content with having centrifuges meet the separation requirements in the initial use. It is more concerned about the long-term performance of the centrifuge and would like to solve problems such as high productivity, high washing rate, low crystal breakage rate, low residue rate and low energy consumption for customers and provide customers with safe, intelligent and environmentally friendly separation equipment and solutions.
