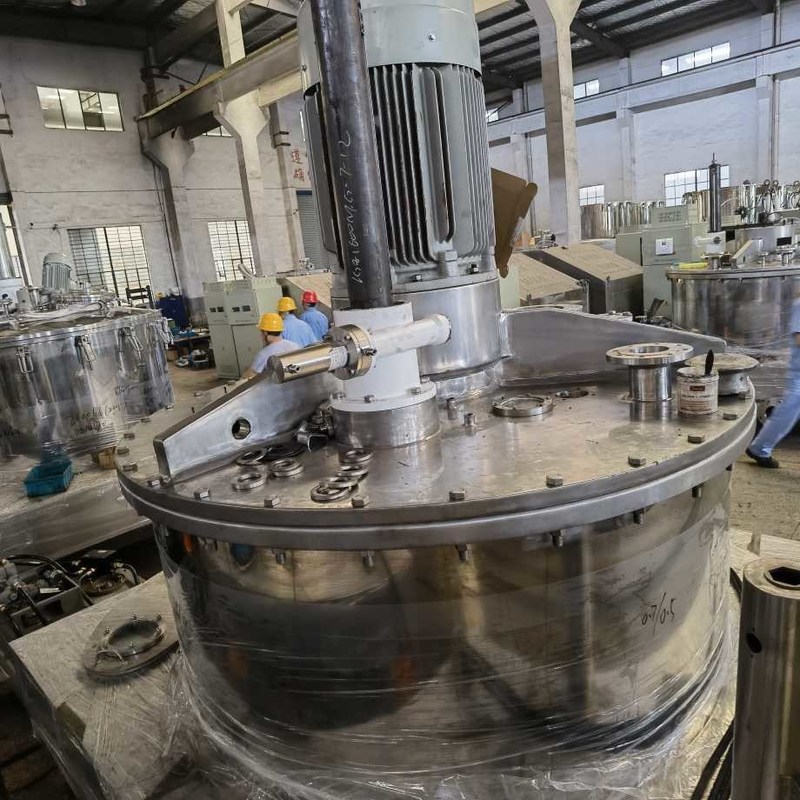

Vertical 900rpm Bottom Discharge Centrifuge 620kg For Aromatic Substances
Product Details:
| Place of Origin: | CHINA, JIANGSU |
| Brand Name: | HUADA |
| Certification: | GB/T19001-2016/ISO9001:2015 01418P10003R2M |
| Model Number: | PAUT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-60000/set |
| Packaging Details: | Standard with wooden pallet and poly film wrapping |
| Delivery Time: | 60 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Centrifugal Type: | Basket Centrifuge | Discharge: | Scraper Bottom Discharge |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Operate: | Automatic Batch Operate |
| Machine Control: | PLC Control | Cover Opening: | Hydraulic Control |
| Motor Start Control: | Frequency Converter | MOC: | Stainless Steel |
| High Light: | 900rpm Bottom Discharge Centrifuge,900rpm vertical centrifuge machine,Bottom Discharge Centrifuge 620kg |
||
Product Description
PAUT Model High Productivity Vertical Disposal Capacity Automatic Discharge Aromatic Substances Centrifugal Equipment
Product features
◇Upper type direct driving for motor; rotating center for drive and drum coincide with machine center, with smooth and stable operation.
◇Liquid damping vibration absorber: No foundation for installation facilitates operation and maintenance.
◇Large length-diameter ratio, big loading capacity.
Technical Parameters
| Items | Models | ||
| PAUT1250 | PAUT1320 | PAUT1600 | |
| Basket Diameter(mm) | 1250 | 1320 | 1600 |
| Effective Basket Height(mm) | 800 | 800 | 1000 |
| Basket Volume(L) | 450 | 490 | 1000 |
| Max. Capacity(kg) | 560 | 620 | 1250 |
| Motor Power(kw) | 30 | 30 | 45 |
| Max. Speed(r/min) | 970 | 900 | 850 |
| Max. Separation Factor | 658 | 600 | 647 |
| Dimension(mm) | 2100*2000*2600 | 2100*2000*2600 | 2700*2350*2900 |
| Weight(kg) | 5000 | 5500 | 10000 |
Anti-corrosion
The materials to be separated are normally corrosive. So for safety, the parts in contact with these corrosive materials must be anti-corrosive.
Material of constructions: 304, 321, 316L, 904L, TA, 2205, 2507etc.
When there is determined application experience or corrosion data, carry out coupon test and laboratory verification to ensure selected material meet anti-corrosion requirements.
Surface anti-corrosion treatment: PE lined, rubber lined and halar lined and F40, F46, PFA etc.
Anti-corrosion requirements of sealing elements can not be neglected; material of sealing elements shall ensure prevention against corrosion from acids, alkali and solvents.
The customer shall forward the physical and chemical properties of the material and washing liquid (chemical properties and separation temperature etc.) to the manufacturer so that it can make recommendations for centrifuge materials based on characteristics of the separation medium, and that the suitable seal ring, seal washer and filter cloth can be provided, thus ensuring anti-corrosion requirements on the centrifuge.
Explosion-proof
If the centrifuge works in the environment, where there are some explosive substances, the centrifuge should be explosion-proof. If the centrifuge becomes really explosion-proof, it should take a variety of measures in mechanical, electrical control and the accessories selection.
Electric control: explosion-proof isolator, non-touch dynamic braking system, static grounding and explosion-proof automatic control.
Mechanical system: explosion-proof motor, explosion-proof light, anti-collision and anti-static driving belt.
Explosion-proof accessories: nitrogen protection system, on-site explosion-proof control button.
Therefore, for those environments required explosion-proof, users can specify the filtration medium, requirement and degree of explosion-proof when they take orders, in order to buy the right equipment to meet the requirements of explosion-proof.
Refer to Application Technology of Centrifuge in Explosion Proof Site P103.
